Echo CS-271T Service Manual

CLUTCH SYSTEM
CS-271T
38

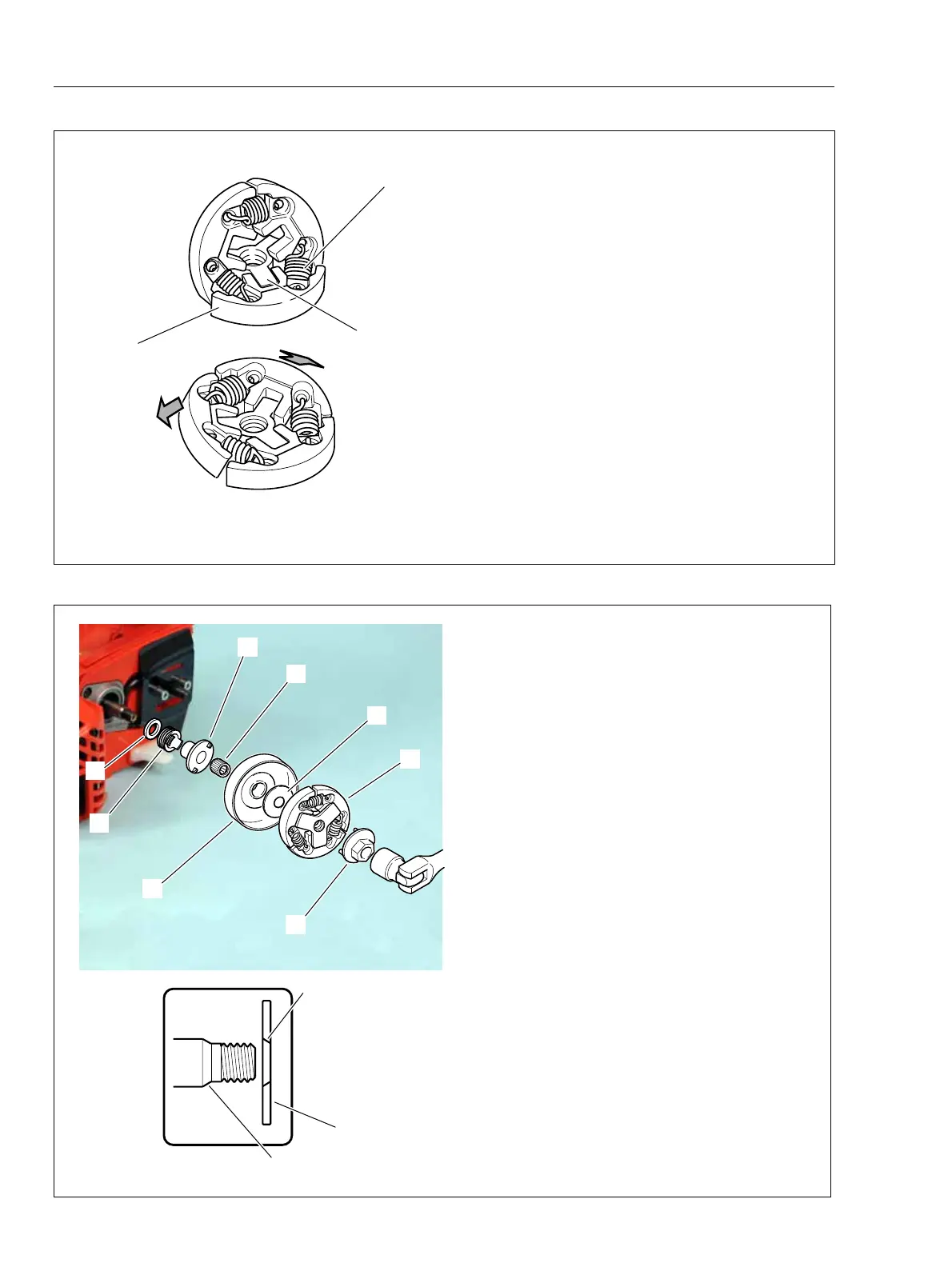

5-3 Installingclutchassembly
1. Apply lithium-based grease to needle bearing
(D) and install circular washer (A), worm gear (B),
collar (C), needle bearing and clutch drum (E) on
crankshaft as shown order.
2. Install clutch plate (F) and clutch assembly (G)
to crankshaft turning counterclockwise by hand.
NOTE: Chamfered corner (f) of clutch plate (F)
should face inside, against crankshaft chamfer (J).
NOTE: If starter assembly is installed, untie tempo-
rary knot in the rst NOTE of “5-1 Inspecting clutch
parts”. Hold starter grip as the rope is pulled out.
3. Turn clutch assembly counterclockwise by hand
until it can not be turned further.
4. Tighten clutch assembly (Left-hand thread) with
clutch tool X640000011.
5. Remove rope from spark plug hole and reinstall
all removed parts.
5-2 Replacingclutchparts
1. Install clutch springs (A) to clutch shoes (B).
NOTE : Make sure to have ends of clutch springs
(A) face clutch hub (C)
2. Set one arm of clutch hub (C) to one clutch shoe
(B).
3. Install other two clutch shoes (B) on two arms
as shown.
A
C
B
F
f
F
E
D
B
A
G
C
J
H

Echo CS-271T Specifications

General

Engine Displacement	26.9 cc
Bar Length	12 inches
Chain Pitch	3/8 inch
Fuel Capacity	0.21 L
Chain Oil Type	Bar and chain oil
Chain Gauge	0.050 inch
Oil Capacity	160 ml
