Echo CS-271T Service Manual

GUIDE BAR MOUNTING SYSTEM
CS-271T
63

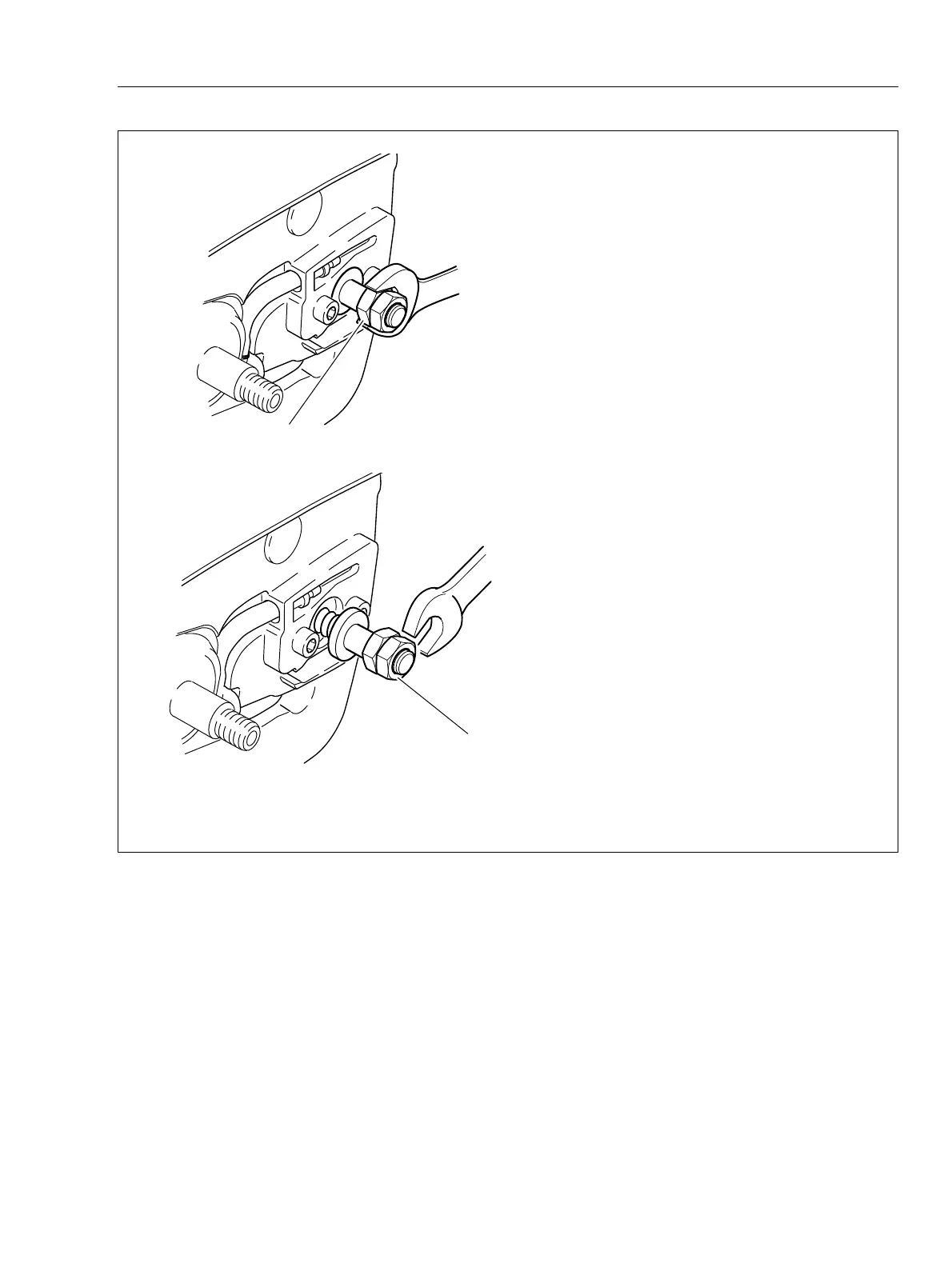

10-2Replacingguidebarstud
1. Install two nuts on defective stud and tighten
them against each other.
2. Turn nut (A) counterclockwise to remove stud.
NOTE: If it is hard to remove or broken stud is too
short for tightening two nuts, hold defective stud
by vise and turn the chain saw body counterclock-
wise, or use a suitable stud remover.
3. Install two nuts on new stud and tighten them
against each other.
NOTE: Apply a small amount of thread locking
sealant in the thread hole (locktite #675 or equiva-
lent).
4. Turn nut (B) clockwise to install stud.
A
B

Echo CS-271T Specifications

General

Engine Displacement	26.9 cc
Bar Length	12 inches
Chain Pitch	3/8 inch
Fuel Capacity	0.21 L
Chain Oil Type	Bar and chain oil
Chain Gauge	0.050 inch
Oil Capacity	160 ml
