CS-350WES
20
IGNITION SYSTEM
C
B
D
(G)
(F)
C
(H)
(J)

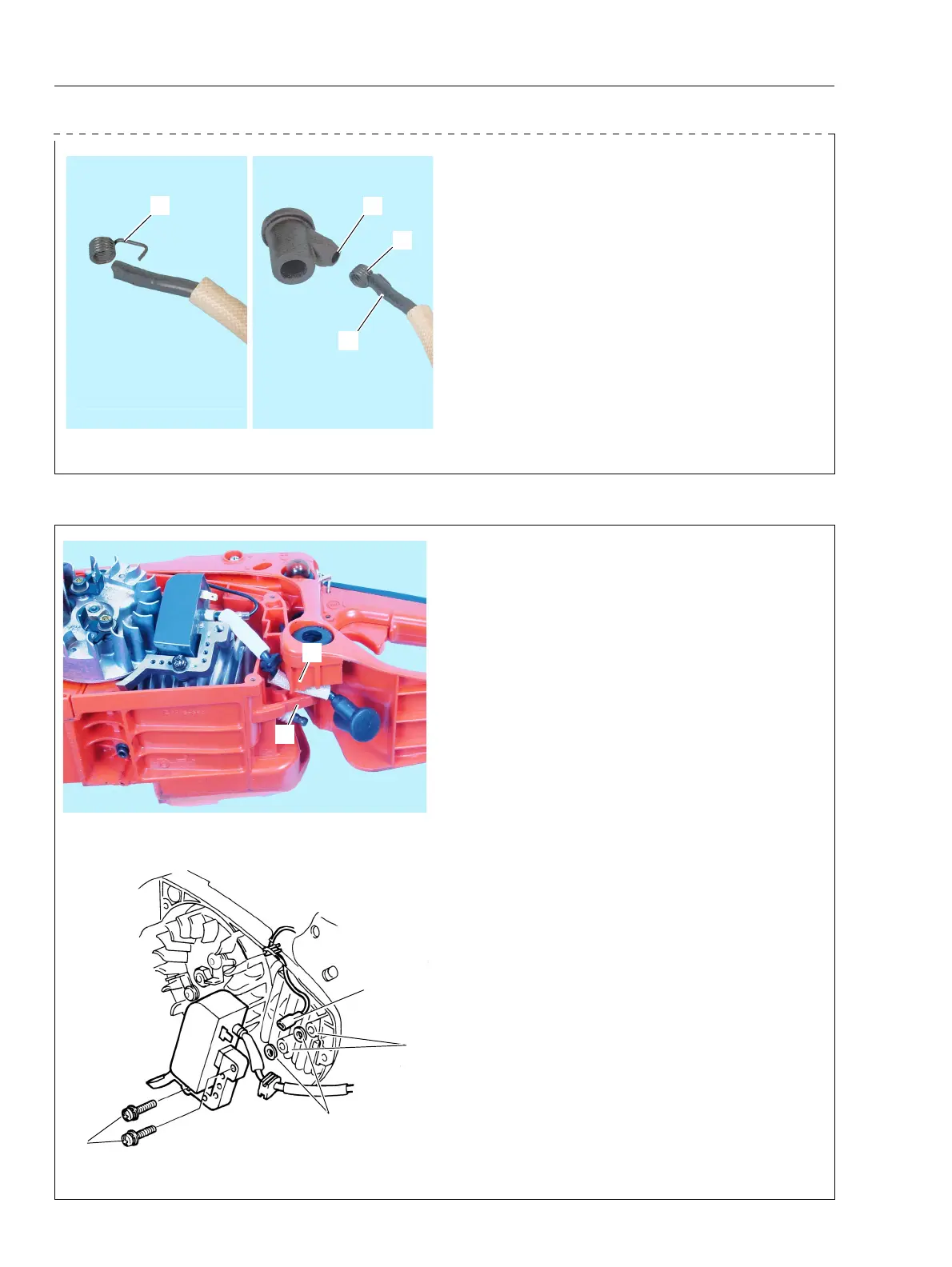

3-8 Replacing spark plug cap and coil (continued)
3-9 Installing ignition coil
1. Pass high tension lead through the space between
engine cover (D) and rear handle (E) as shown.
2. Apply small amount of thread locking sealant to
thread holes (H) on cylinder. Set spacers (F)
between cylinder and ignition coil core, and fasten
screws (J) tentatively. After adjusting air gap using
feeler gauge, fasten screws (J) with final torque.
3. Connect switch lead connector (G) to ignition coil
terminal (H), and place switch lead along with groove
of engine cover.
3. Pull the cap away from high tension lead (B).
4. Check spark plug cap coil (C) for correct
connection, corrosion and the cap for cracks.
Replace as required.
NOTE: Make sure the spark plug cap coil (C)
contacts conductor core of high tension lead when
re-installing it.
5. Apply oil to spark plug cap (D) and insert high
tension lead (B) as shown until the spark plug cap
coil is properly seated in the cap.
D
E
