CS-350WES
29
FUEL SYSTEM

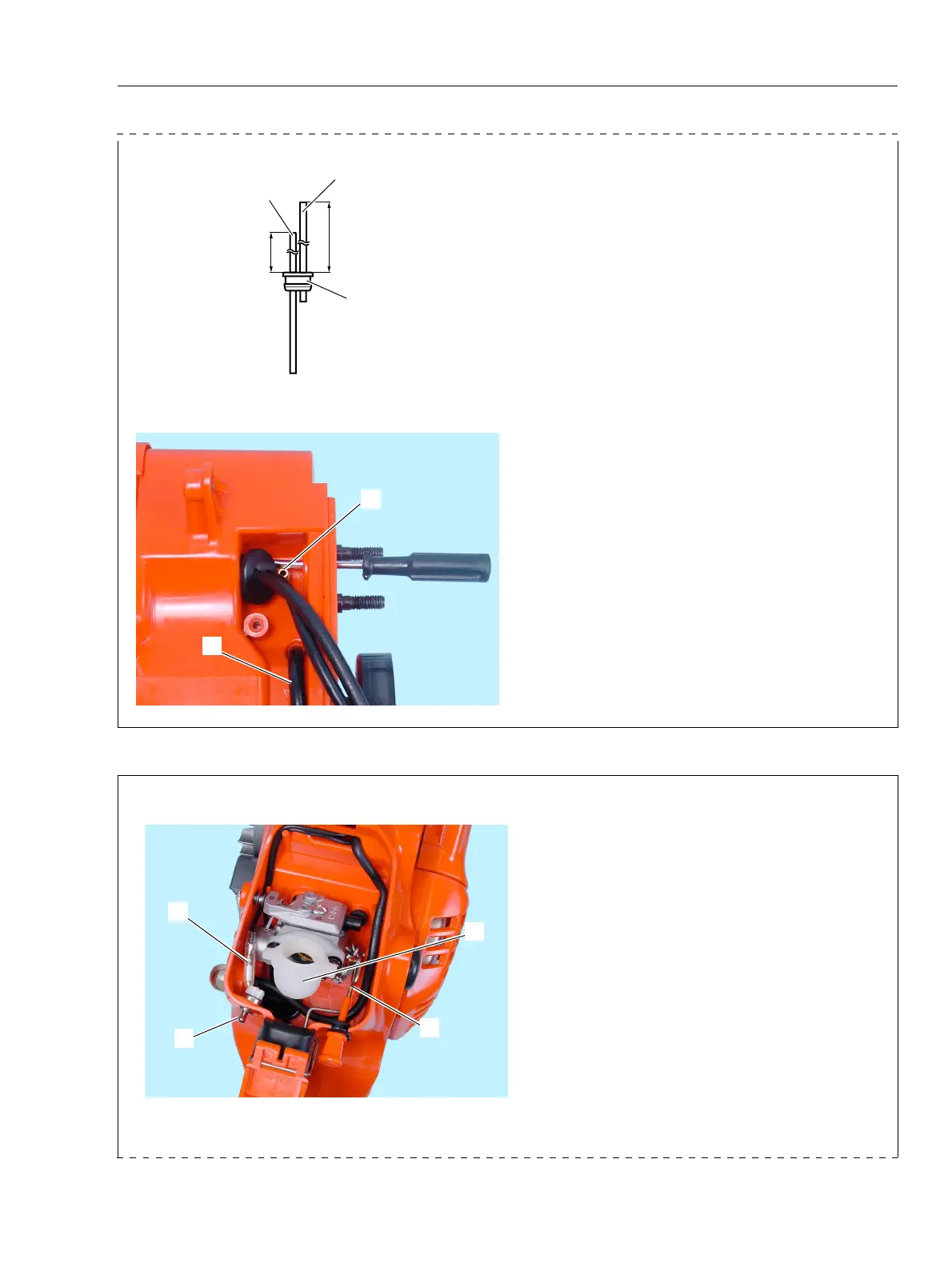

6. Install fuel pipe (C) and return pipe (D) on the
grommet (E) as shown.
7. Install the assembled grommet on fuel tank.
NOTE: Assemble grommet, as the pipe (D) is upper
side of fuel pipe (C).
8. Pull out fuel pipe from fuel tank and install fuel
strainer and clip to fuel pipe.
9. Install oil outlet pipe (B) to fitting (G) and assemble
dust cover.
4-7 Removing carburetor
1. Remove lead connector (B) from switch (A).
2. Remove choke rod (C).
3. Loosen 2 pcs of carburetor screws, and remove
elbow (D) and carburetor.
G
B
B
C
A
D
(C)
(E)
(D)
125 mm
(4.9 in)
275 mm
(10.8 in)
(continued)
4-6 Replacing fuel pipe (continued)
To Next Page
