CS-350WES
28
FUEL SYSTEM

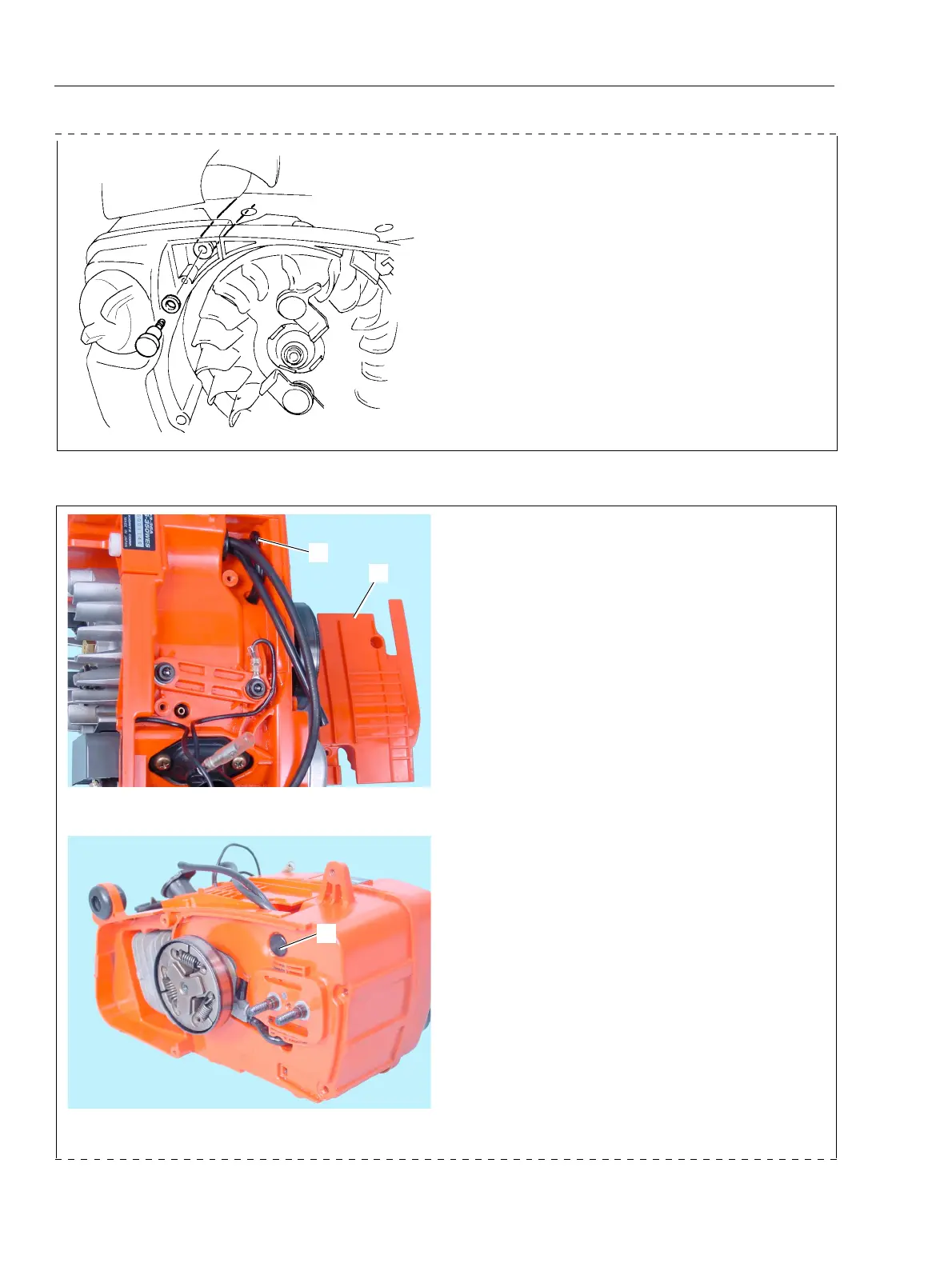

4-6 Replacing fuel pipe
1. Remove fuel cap. Remove fuel strainer and clip
from fuel pipe.
2. Remove rear handle (Refer to section 9-3 Page
55).
3. Remove dust cover (E).
4. Disconnect oil outlet pipe (B) from fitting.
5. Remove plug (F) at upper part of guide bar mount.
Remove fuel pipe grommet with fuel pipes from fuel
tank using thin blade screw driver.
B
E
F
(continued)
4-5 Checking and replacing fuel vent (continued)
8. Reinstall tank vent to original position.
