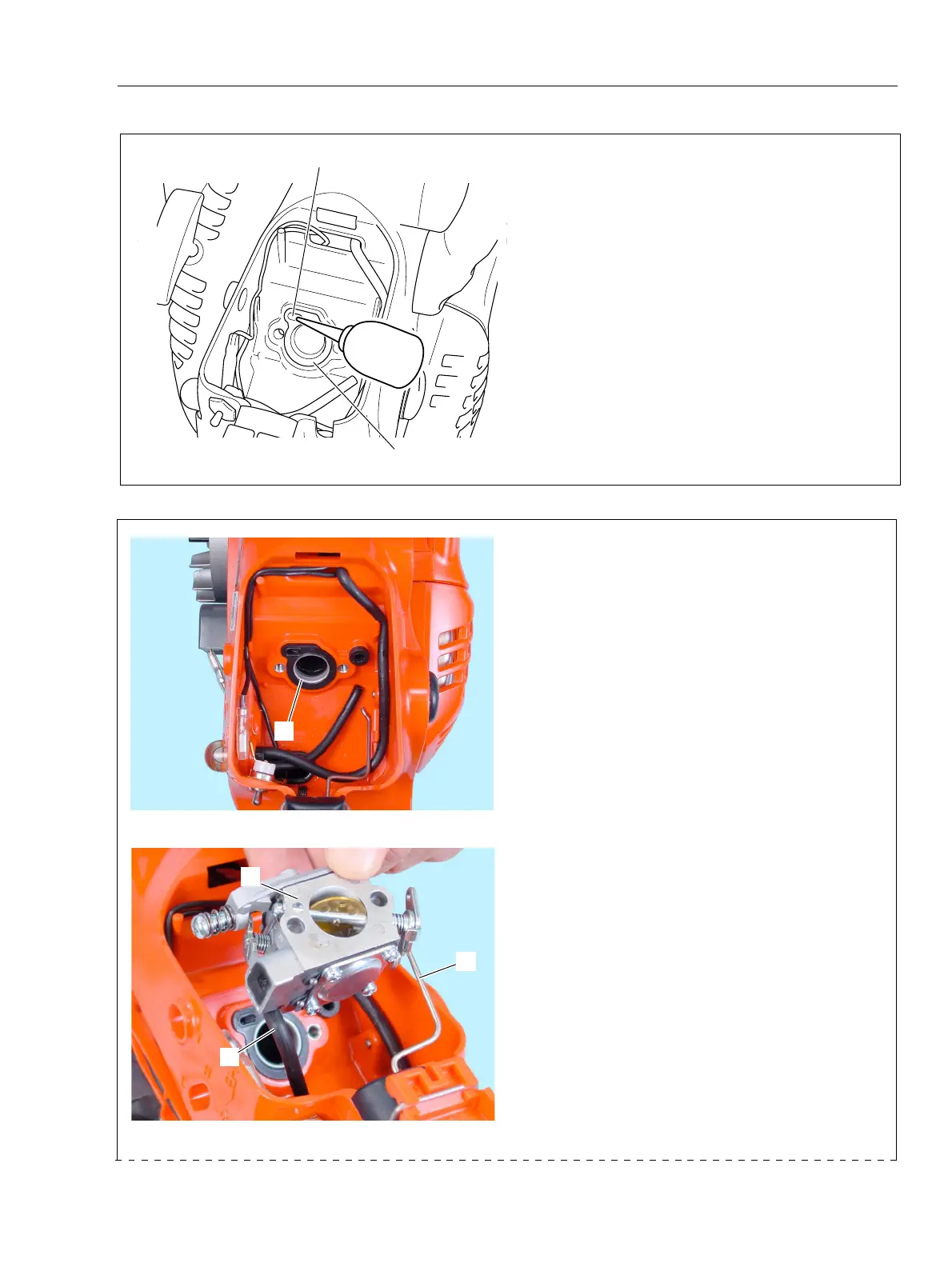

4-14 Installing carburetor
1. Install collar (B) on intake bellows.
4-13 Checking crankcase pulse passage
1. Drop a little oil in the pulse hole (a) on intake
bellows (A).
2. Remove spark plug and pull starter grip several
times. The oil should spit back from the hole.
3. If not, remove rear handle and check whether
connection of pulse pipe is correct and the pulse
passage of intake bellows is not blocked. Repair as
required.
B
E
D
C
(a)
(A)
(continued)
2. Connect inlet pipe (D) of primer and throttle rod
(E) to carburetor (C).
