CS-350WES
34
FUEL SYSTEM

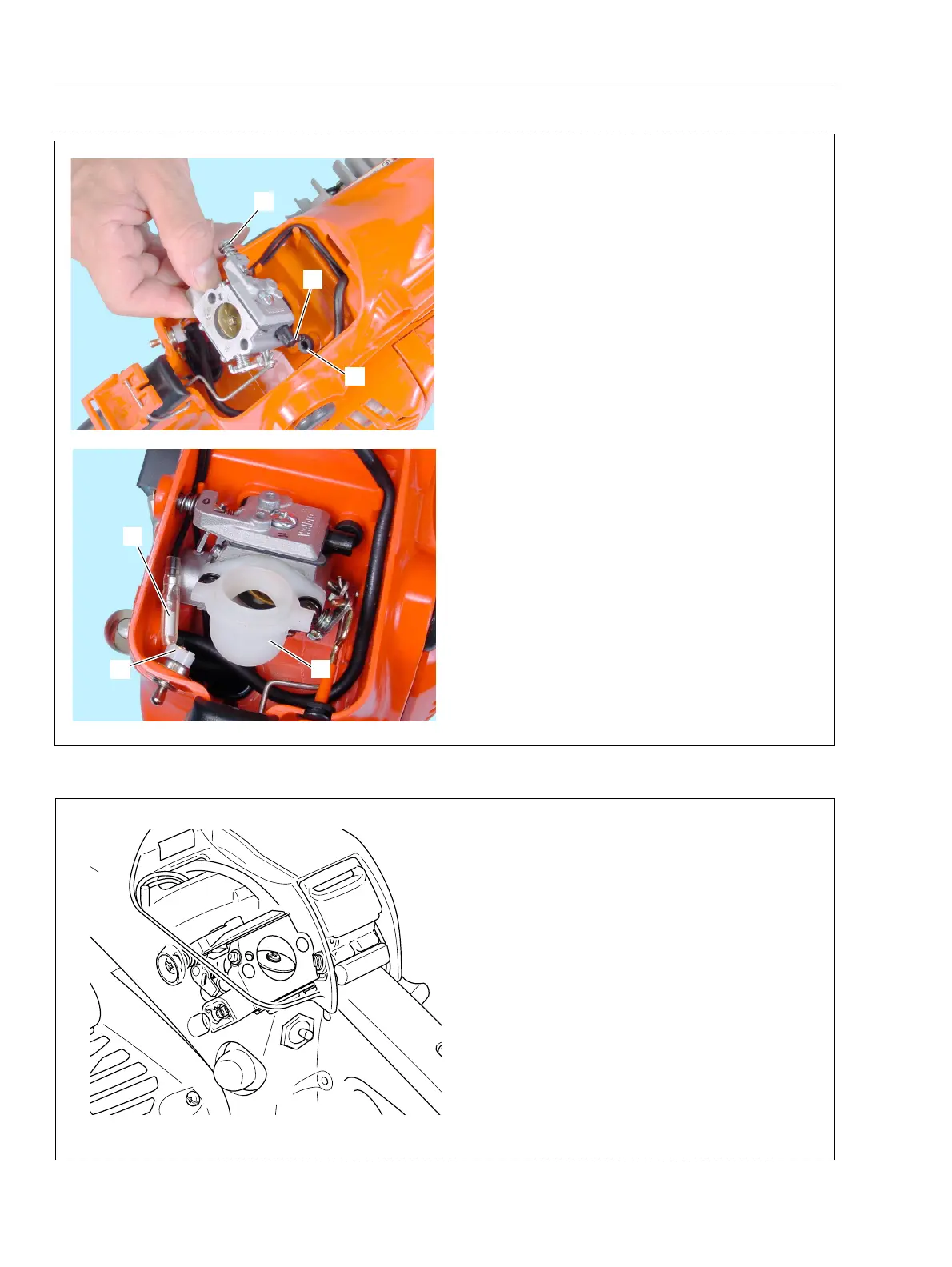

3. Align idle adjust screw (M) of carburetor with hole
of rear handle and insert fuel fitting (F) in fuel pipe
(G).
4. Connect switch lead connector (H) to ignition
switch (K).
5. Fasten elbow (L) and carburetor together with 2
screws.
NOTE: If the screw is pressed strongly before
engaging with the thread of nut, the nut may drop. If
the nut dropped, rear handle should be
disassembled to reinstall the nut on rear handle.
6. Install choke rod.
7. Install air cleaner and air cleaner lid.
K
M
F
G
H
L
4-14 Installing carburetor (continued)
4-15 Adjusting carburetor
GENERAL ADJUSTMENT RULES:
A. Before starting the unit for adjustment, check the
following items:
- The correct spark plug must be clean and properly
gapped.
- The air filter must be clean and properly installed.
- Exhaust port must be clean of carbon.
- The recommended bar and chain combination
must be installed to the powerhead, and properly
tensioned.
- The fuel is fresh (>89 octane : RON) and properly
mixed at 50 : 1 with “ISO L-EGD“or “JASO FC”
2-stroke oil .
(continued)
