CS-350WES
35
FUEL SYSTEM
2. Screw thread of limiter cap tool 91019 (C) into
center hole of limiter cap counterclockwise until tab
of the limiter cap just come out from locating slot.
NOTE: If the limiter cap is pulled out completely,
there is a chance that the other mixture needle will
turn and limiter cap tab will misalign with locating
slot when screwing the limiter cap tool into center
hole of the other limiter cap.
C
(continued)
H
L
(A)
(B)
(B)
(A)

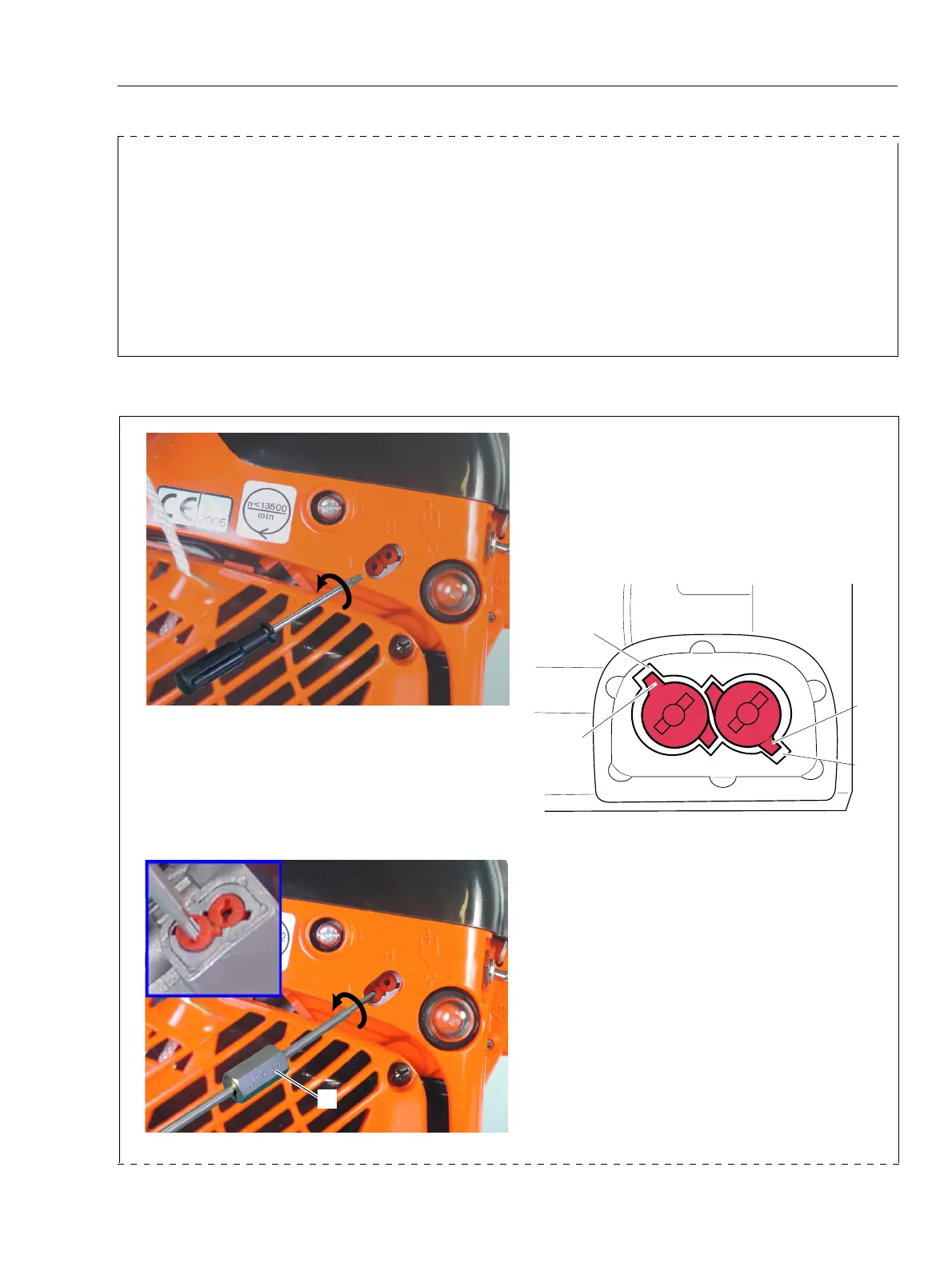

4-15-1 Presetting idle adjust screw, L mixture needle and H mixture needle
1. Turn the L and H mixture needles out
counterclockwise to rich side stop. And meet limiter
cap tab (A) with locating slot (B).
B. Adjust carburetor turning L and H mixture needles
with limiter caps within the moving range (approx.
: 90°) and idle adjust screw. When engine does
not run correctly after this adjustment, proceed to
the next step (4-15-1).
C. After adjusting carburetor according to the 4-15-
1 and 4-15-2, the limiter cap(s) must be installed
on L and/or H mixture needle(s) to comply with
Emission Directive.
4-15 Adjusting carburetor (continued)
To Next Page
