CS-350WES
38
CLUTCH SYSTEM
5-1 Checking clutch parts
1. Remove sprocket guard and recoil starter.
2. Holding flywheel by flexible wrench (H), turn clutch
assembly clockwise to remove using clutch tool (F).
3. Remove clutch drum (G), needle bearing and
washer.
NOTE: Do not use piston stopper. Otherwise, piston
damage may occur.
4. Check clutch shoes for wear and spring for
weakness of damage. Replace clutch parts as
required.
5. Check clutch drum and the sprocket. Replace if
deformed or worn out.
6. Check needle bearing for discoloration or
damage. Replace as required.
5 CLUTCH SYSTEM
(E)
(D)
(H)
(F)
(C)
(B)
(G)
F
G
H
(A)

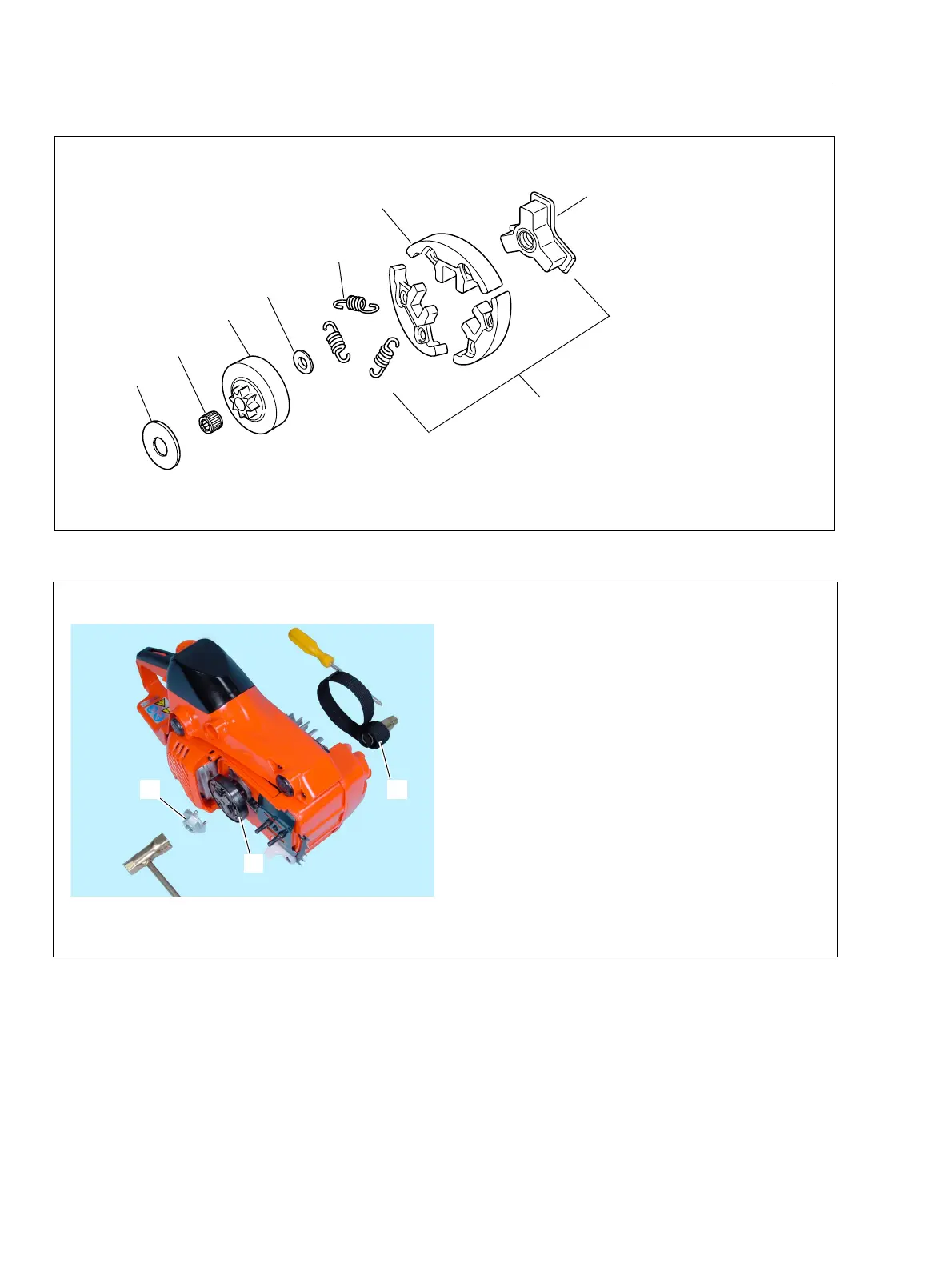

( A ) Clutch assembly
( B ) Clutch plate
( C ) Clutch drum
( D ) Needle bearing
( E ) Washer
( F ) Clutch hub
( G ) Clutch shoe
( H ) Spring
