CS-350WES
42

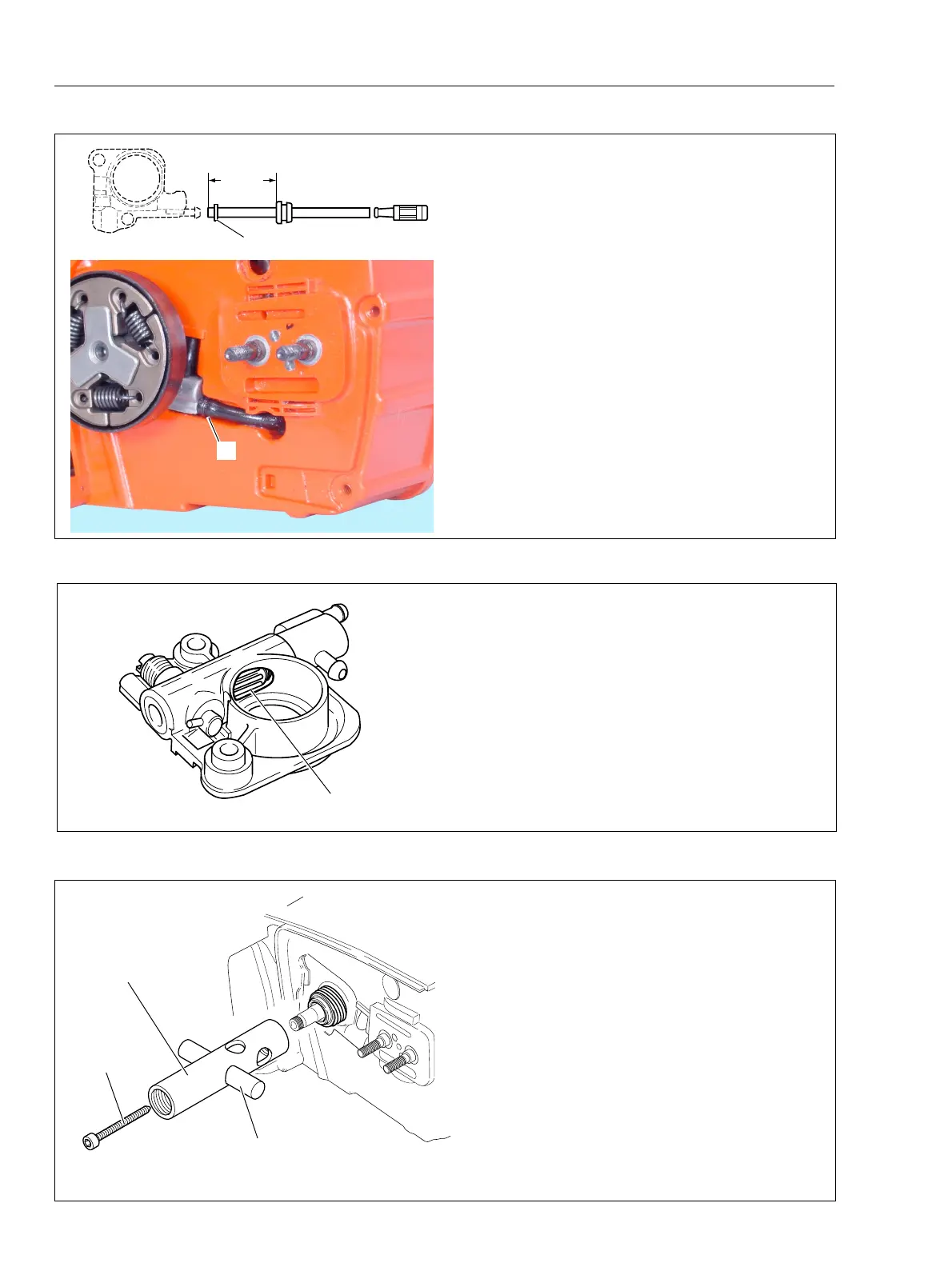

SAW CHAIN LUBRICATION SYSTEM
6-6 Removing worm gear
1. Screw worm remover 897702-30131 (A) on the
worm gear.
2. Insert handle (B) in the tool.
3. Screw hex. socket bolt (C) in the center of the
handle (B) until the bolt touches the center of the
crankshaft end.
4. Tighten the bolt with wrench holding handle (B)
until the worm gear comes off.
6-4 Replacing oil pipe and grommet
1. Remove oil pipe and grommet from engine cover.
2. Insert new oil pipe to the grommet as shown.
NOTE: Apply sealant (Loctite #424 or equivalent)
into hole of grommet to prevent oil pipe from moving.
3. Install oil strainer to oil pipe.
4. Insent oil pipe with oil strainer through the hole of
oil tank (engine cover), and install grommet on
engine cover.
5. Install clip (A) on end of oil pipe, and connect the
oil pipe to fitting of auto-oiler assembly as shown.
(C)
(A)
(B)
6-5 Checking auto-oiler assembly
1. Loosen screws on auto-oiler assembly. Remove
oil pipe from auto-oiler assembly and remove auto-
oiler assembly.
2. Check whether the plunger of auto-oiler assembly
rotates smootly and gear of the plunger (A) is not
damaged. If damaged, replace with a new one.
35mm
(1.4 in)
(A)
(A)
A
