CS-350WES
43
SAW CHAIN LUBRICATION SYSTEM

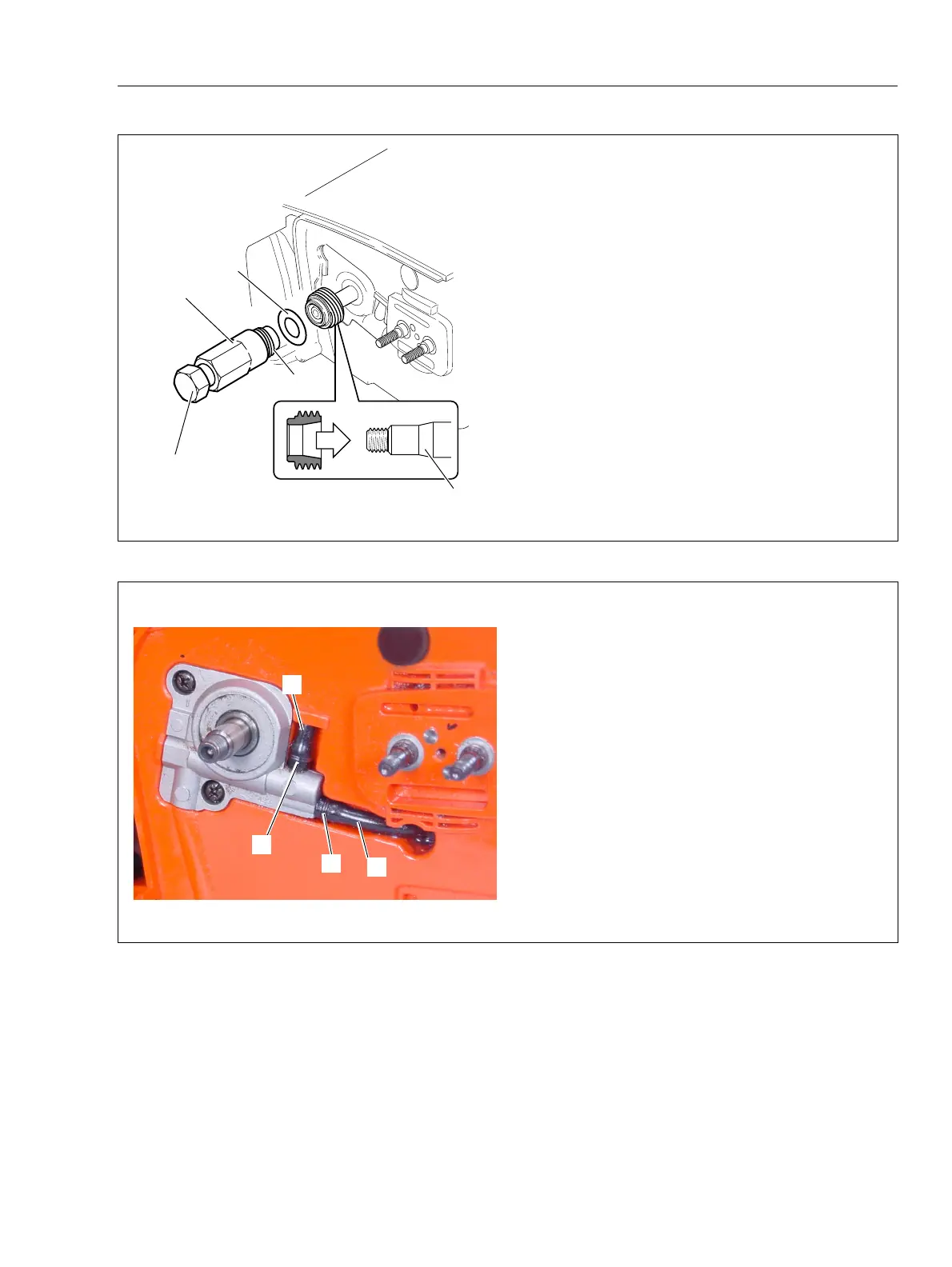

6-7 Installing worm gear
1. Put new worm gear on the crankshaft end.
2. Setting circular washer (D) on end of worm press
tool (C) and screw bar tool (A) on thread of
crankshaft counterclockwise.
3. Holding hexagonal part (a) of bar tool (A) by
wrench, turn press tool (C) clockwise until worm gear
is bottomed to taper part (E) of crankshaft.
6-8 Installing auto-oiler assembly
1. Install clip (B) on oil outlet pipe (A), connect the
oil outlet pipe (A) to auto-oiler.
2. Apply a small amount of lithium-based grease to
worm gear.
3. Install the auto-oiler assembly on engine cover.
4. Install clip (C) on oil pipe (D) and connect the
pipe to auto-oiler assembly.
5. Fasten screws securing auto-oiler assembly.
6. Install sprocket guard plate, spiked bumper and
chain catcher.
7. Install all other removed parts.
(A)
(D)
(C)
(a)
(E)
A
D
C
B
To Next Page
