Echo CS-350WES Service Manual

CS-350WES
44
SAW CHAIN LUBRICATION SYSTEM

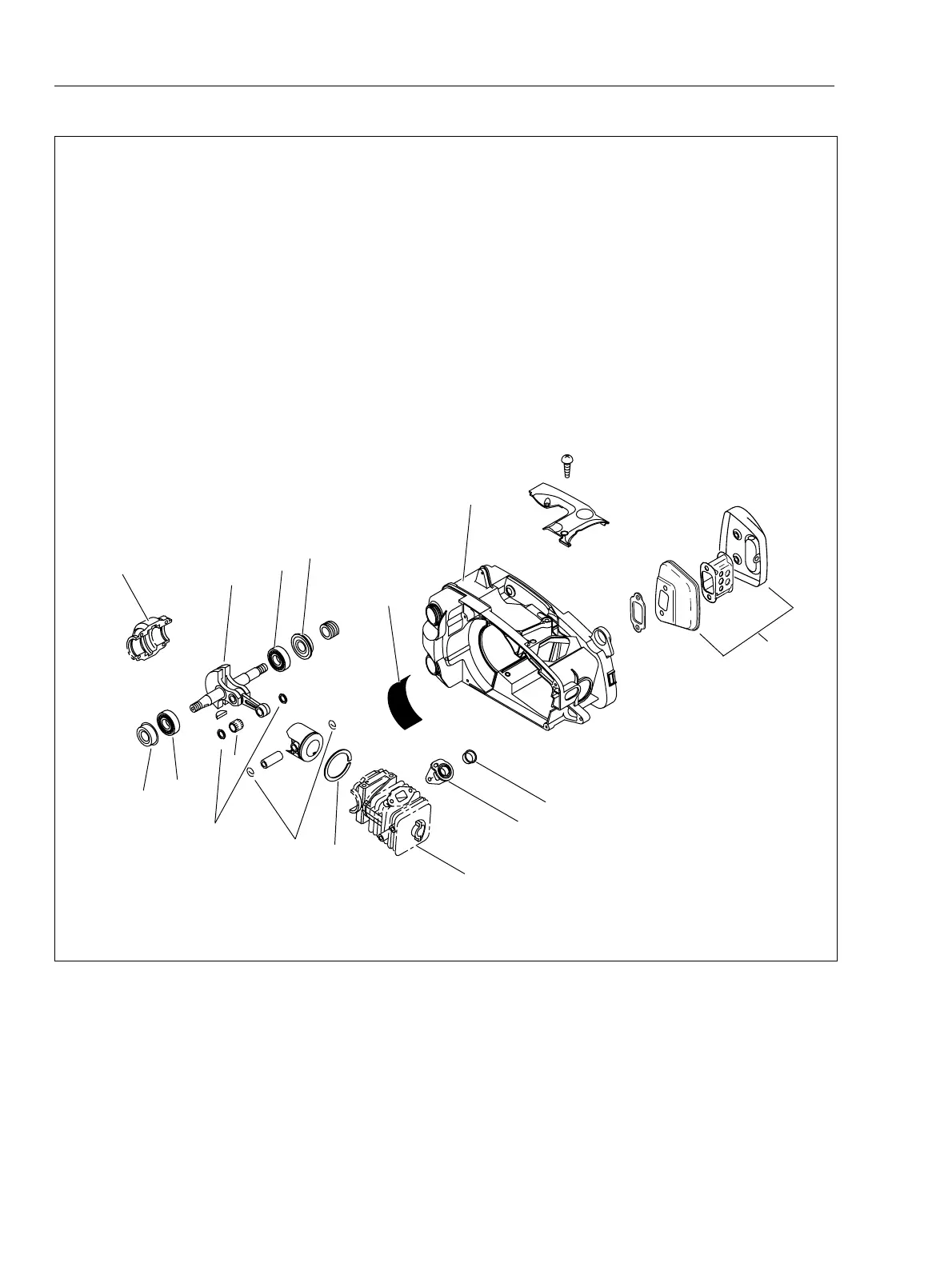

7 ENGINE
( A ) Crankcase (Cylinder)
( B ) Crankcase
( C ) Crankshaft
( D ) Ball bearing
( E ) Oil seal
( F ) Engine cover
( G ) Piston ring
( H ) Snap ring
( J ) Piston
( K ) Needle bearing
( L ) Collar
( M ) Intake bellows
( N ) Cushion
( P ) Muffler
( Q ) Piston pin spacer
(E)
(C)
(F)
(B)
(D)
(A)
(M)
(L)
(P)
(C)
(D)
(Q)
(K)
(H)
(G)
(N)
