CS-350WES
63
CUIDE BAR MOOTING SYSTEM
10-2 Replacing guide bar stud

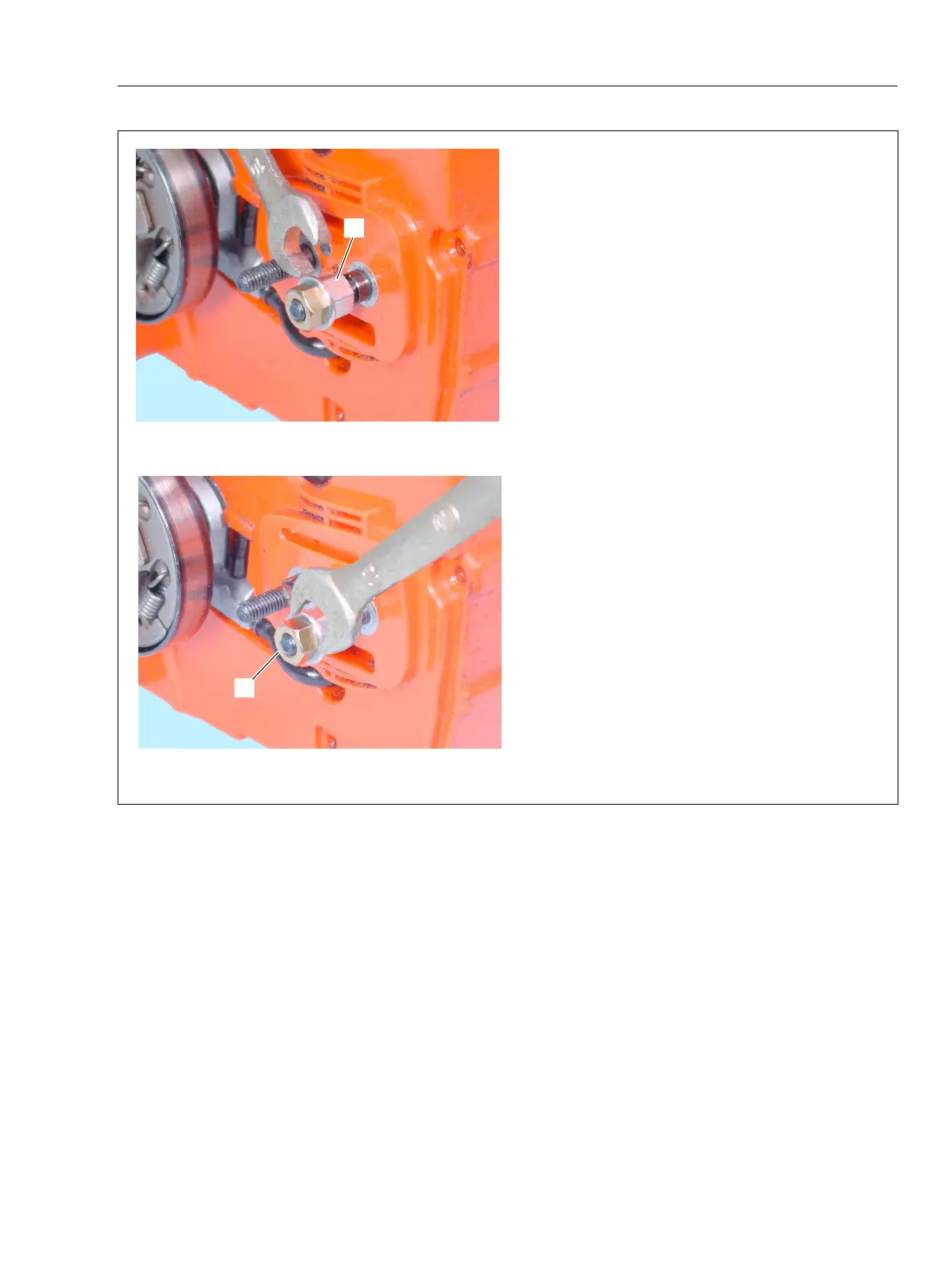

1. Install two nuts on defective stud and tighten them
against each other.
2. Turn nut (A) counterclockwise to remove stud.
3. If hard to remove or the stud is broken and too
short for tightening 2 nuts, hold defective stud by
vise and turn the chain saw body counterclockwise,
or use a suitable stud remover.
4. Install two nuts to new stud and tighten them
against each other.
NOTE: Apply a small amount of thread locking
sealant in the thread hole (loctite #675 or equivalent).
5. Turn nut (B) clockwise to install stud.
A
B
