CS-350WES
6
SERVICE INFORMATION
1.35
0.4
1.65
1.5
a
2
6
0
0
20
40
60
80
120
14
0
1
60
180
20
100
91
019

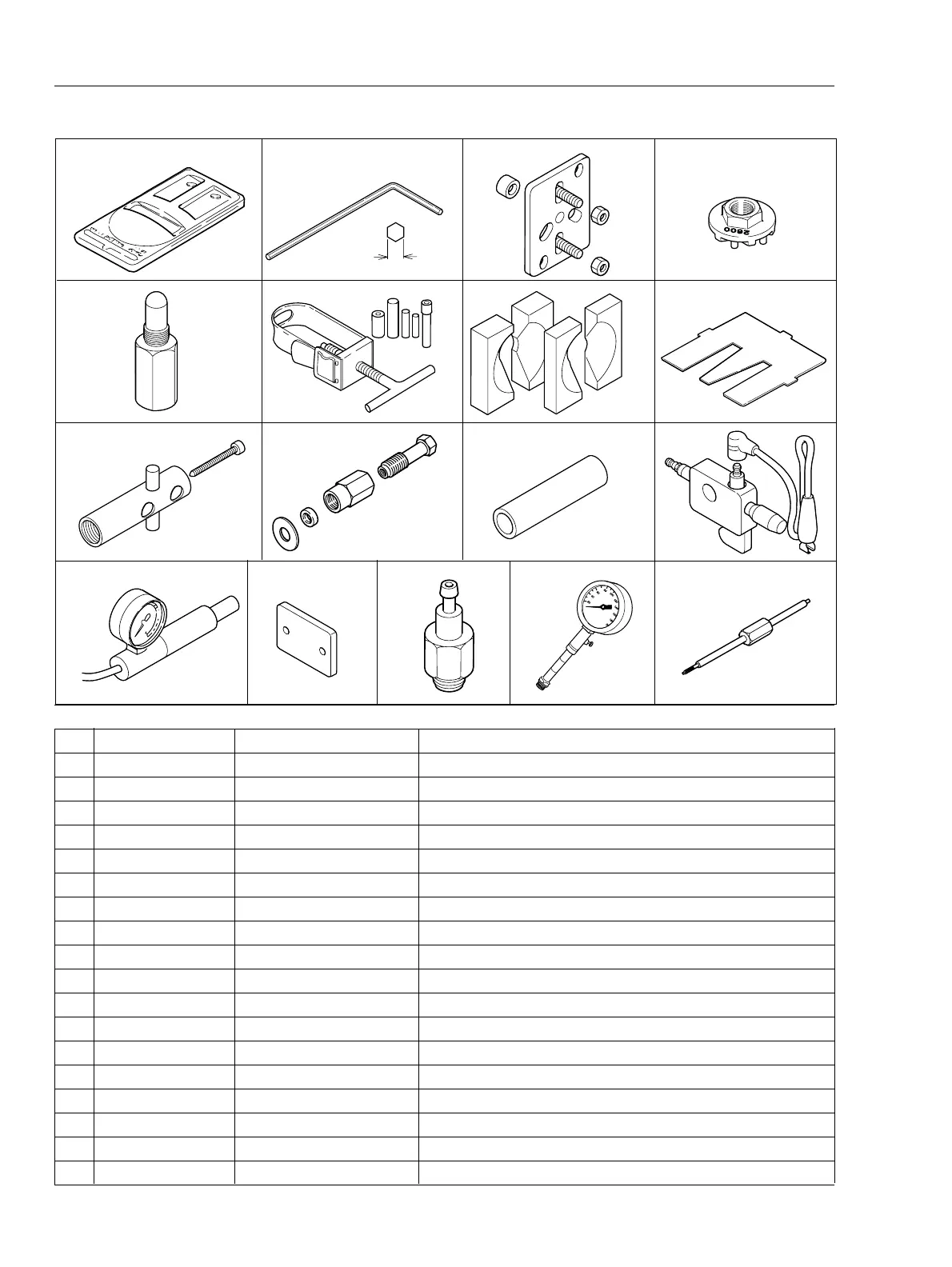

1-6 Special tools
1
54
2
6
9
311101 12
5141
16
3
8
a = 3 mm
a = 4 mm
7
17
Key Part Number Description Used for:
1 897801-33330 Tachometer PET-1000 Measuring engine speed to adjust carburetor
2 895612-79920 L-hex wrench (3 mm) Removing and installing hex. socket bolt (M4)
3 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolt (M5)
4 897501-03938 Puller Removing magneto rotor
5 X640-000011 Clutch tool Removing and assembling clutch assembly
6 897537-30130 Piston stopper Locking crankshaft rotation
7 897702-30131 Piston pin tool Removing and installing piston pin
8 897701-06030 Bearing wedge Removing and crankshaft ball bearings
9 897563-19830 Metering lever gauge Measuring metering lever hight on carburetor
10 897708-19835 Worm puller Removing auto-oiler worm
11 Y089-000010 Worm inserter Installing auto-oiler worm
12 897726-09130 Oil seal tool Installing oil seals
13 897800-79931 Spark tester Checking ignition system
14 897803-30133 Pressure tester Testing carburettor and crankcase leakage
15 897826-16131 Pressure rubber plug Plugging intake port to test crankcase / cylinder leakages
16 897835-16131 Pressure connector Checking crankcase and cylinder leakages
17 91007 Compression gauge Measuring cylinder compression
18 91019 Limiter cap tool Remover and installer of limiter cap
18
