CS-4510 DESCRIPTION
X7503350603 23
© 06/2019 ECHO Incorporated.

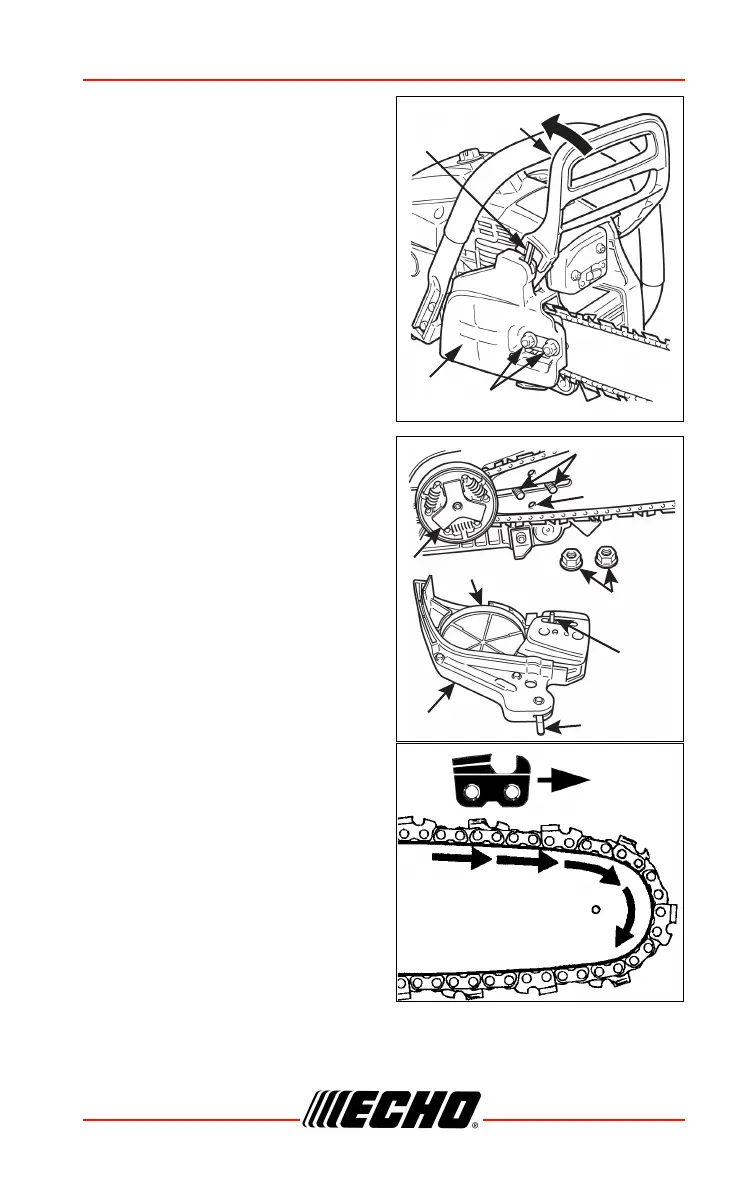

1. Remove air cleaner cover and
disconnect spark plug lead.
2. Move the chain brake lever (A)
(Front hand guard) fully
REARWARD (UNLOCK chain
brake) to remove or install the
sprocket guard (C).
3. Remove sprocket guard nuts (D)
and remove sprocket guard (C).
4. Remove guide bar and saw chain
if necessary.
Note: See “Maintenance and
Care” section for guide bar
/ saw chain maintenance
procedures.
5. Mount guide bar on studs (E) and
slide toward clutch drum (F) to
make saw chain installation
easier. Install saw chain around
sprocket and guide bar as
shown, with cutters on top of
guide bar facing forward.
6. Install sprocket guard over guide
bar studs. Ensure chain tension
adjuster pin (H) fits into the guide
bar adjuster hole (G), brake band
(J) is positioned around clutch
drum (F). Tighten sprocket guard
nuts finger tight.
A
B
C
D
E
G
F
H
C
B
D
J

Echo CS-4510 Specifications

General

Oil Capacity	260 ml
Fuel Tank Capacity	460 ml
Oil Tank Capacity	260 ml
Chain Gauge	0.050 inch
Fuel Capacity	460 ml
Weight (without bar and chain, alternative)	11.1 lbs (5.0 kg)
