Preparation For Use
Saw chain is sharp! Always wear gloves when handling
assembly, otherwise serious personal injury may result.
Note: The machine may be delivered with guide bar, and saw chain
separated. Install guide bar, optional Kick Guard
TM
, and saw
chain as follows.

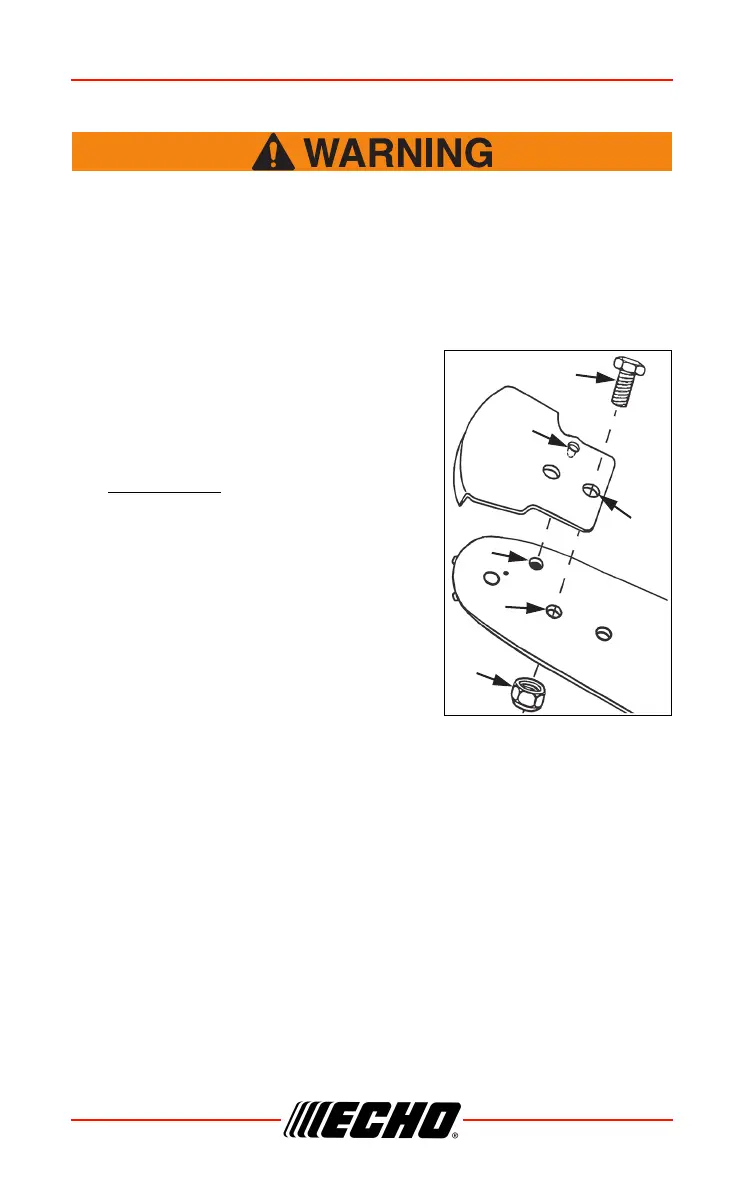

Instructions to Install Optional Kick Guard
TM
to Bar
Tools Needed: Two 11 mm (7/16 in.)
Wrenches.
1. Install bolt (A) in rear hole (B) of Kick
Guard
TM
and through front hole (C) in
guide bar.
2. IMPORTANT:
Dimple (D) in Kick
Guard
TM
must engage recess (E) in
guide bar.
3. Securely tighten nut (F) and bolt (A).
Guide Bar and Saw Chain Installation / Removal
Note: Align the brake connector (B) of the sprocket guard to the
groove on the side of the brake lever (Front hand guard).
A
D
B
E
C
F
Optional
Kick Guard
TM

Echo CS-4510 Specifications

General

Oil Capacity	260 ml
Fuel Tank Capacity	460 ml
Oil Tank Capacity	260 ml
Chain Gauge	0.050 inch
Fuel Capacity	460 ml
Weight (without bar and chain, alternative)	11.1 lbs (5.0 kg)
