Echo CS-4510 - Setting The Saw Chain

MAINTENANCE CS-4510
48 X7503350603
© 06/2019 ECHO Incorporated.

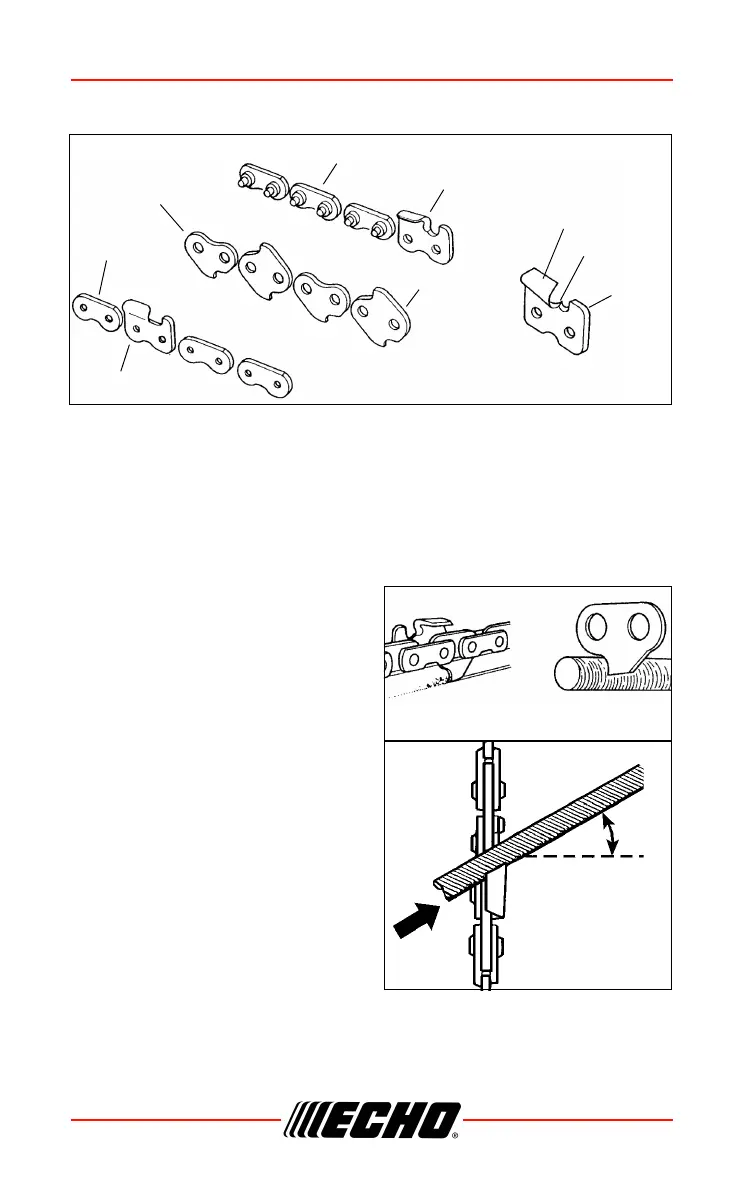

Setting The Saw Chain
Important points for proper maintenance of saw chain:
• Keep the cutters sharp at all times.
• Keep the left and the right cutters properly aligned.
• Note that blunt or irregular cutters will result in poor cutting performance,
increased vibration of chains and premature breakage of the saw chain.
• Drive link serves to remove
sawdust from the groove of the
guide bar. Keep the lower edge of
the drive link sharp where
indicated.
Setting Saw Chain
• For setting saw chain, round file
(4.0 mm [5/32 in.] diam.) and flat
file are used.
• Push file as shown.
Top plate
Side plate
Depth
Left hand cutter
Preset tie strap
gauge
Guard link
Drive link
Tie strap
Right hand cutter
Sharpen lower edge
30°
Keep this angle
