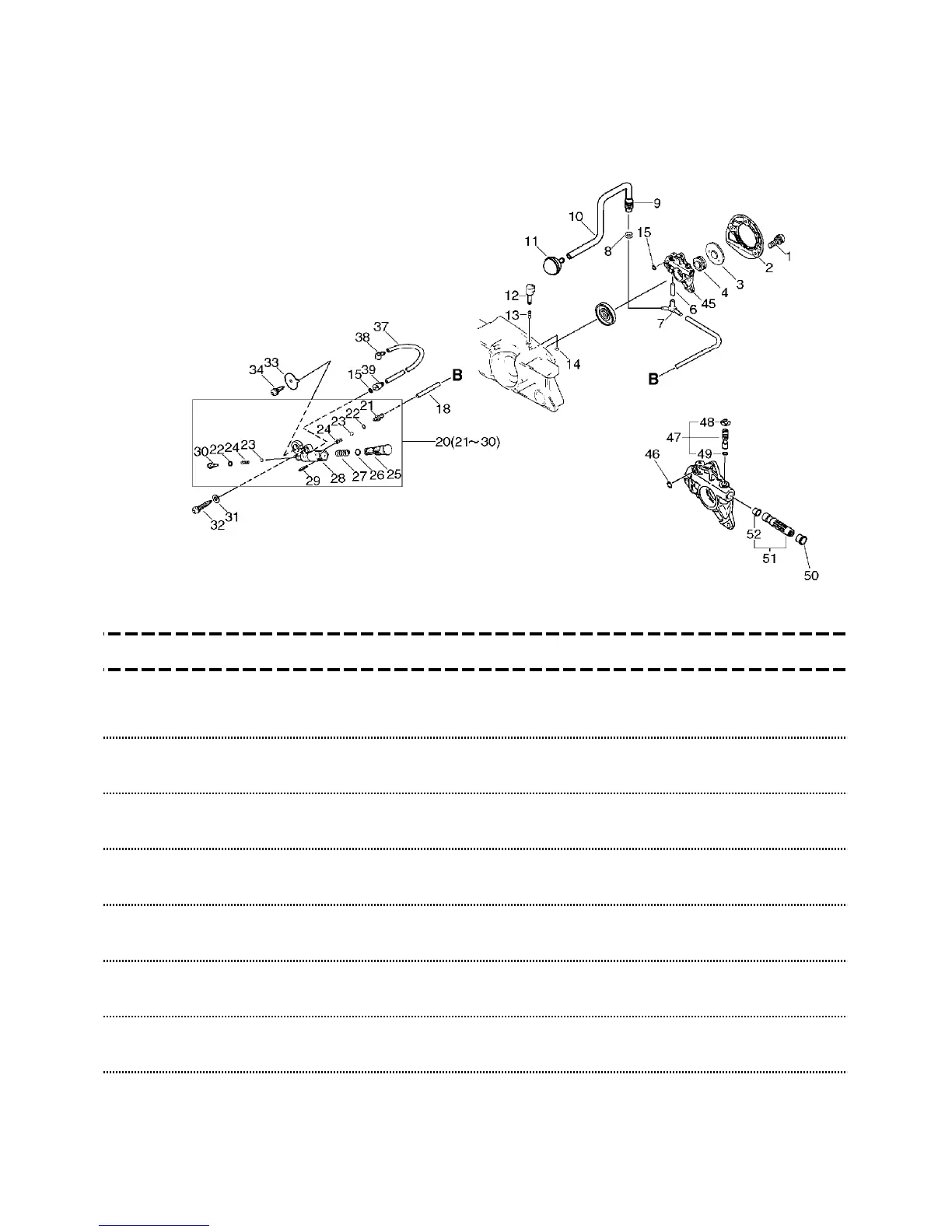

6. Auto-Oiler
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
24 + V450-000290 2 SPRING,COMPRESSION
25 + 437112-38731 1
PISTON, OIL PUMP
26 + 900720-00007 1
O-RING 7
P-7
27 + 437111-19830 1
SPRING
28 + 437110-19831 1
BODY, OIL PUMP
29 + 900345-20016 1
PIN, SPRING 2*16SUS
2*16SUS
30 + 437121-10130 1
ADAPTER, OIL PUMP
31 900603-00005 1
WASHER 5
5.5*12*0.8
32 900252-05020 1
SCREW 5*20
5*20
33 437413-19830 1
BARCKET, OIL PUMP
34 900252-04010 1
SCREW 4*10
4*10
37 437216-32630 1
PIPE, OUTLET
38 437232-32630 1
CONNECTOR, OIL PIPE
39 437212-32630 1
CONNECTOR, OIL PIPE
45 437002-37530 1
AUTO-OILER ASSY
46 + 900720-00003 1
O-RING P-3
P-3
47 + 437009-35430 1
PIN, CONTROL
48 ++ 437065-19830 1
CLIP
49 ++ 437030-19830 1
O-RING
50 + 437062-19830 1
CAP, PLUNGER
51 + 437006-32330 1
PLUNGER KIT
52 ++ 437020-32430 1
V-RING
