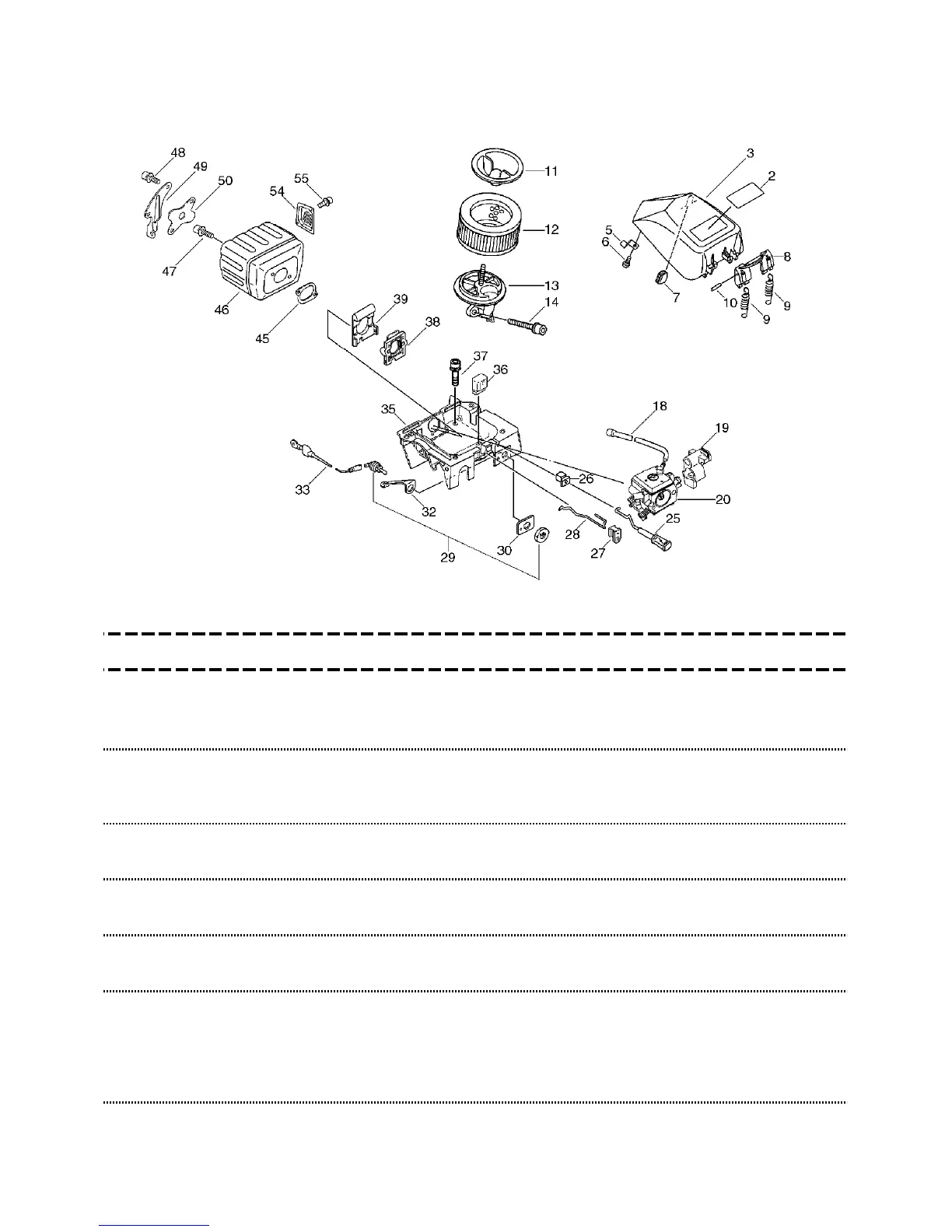

2. Air Cleaner, Muffler(Sr/Nr 36011479 and before)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
2 X503-002480 1 LABEL,MODEL CS-6702 EU
Sus. by X503-
002481
2 X503-002481 1
LABEL,MODEL
CS-6702 EU
3 A232-000070 1
LID,CLEANER
5 V453-000040 2
SPRING,FLAT
6 900253-04008 2
SCREW 4*8
4*8
Sus. by 900253-
04010
6 900253-04010 2
SCREW 4*10
4*10
7 130338-32430 1
PLUG, COVER
8 A235-000050 1
KNOB,CLEANER LID
9 V451-000190 2
SPRING,TENSION
10 900330-30120 4
PIN
3*12
11 A238-000030 1
HOLDER,ELEMENT
12 A226-000070 1
ELEMENT,AIR FILTER
13 A204-000020 1
ELBOW,CARBURETOR
14 91107-05050 2
BOLT HSH FLANGE
5*50
18 130110-19830 1
PIPE, IMPULSE
19 V131-000000 1
GROMMET,NEEDLE
Sr/Nr 35999999
and before
19 V131-000010 1
GROMMET,NEEDLE
Sr/Nr 36001001
and after
20 A021-000250 1
CARBURETOR,DIAPHRAGM
HDA-202
Sr/Nr 35999999
and before
20 A021-000290 1
CARBURETOR,DIAPHRAGM
HDA-203
Sr/Nr 36001001
and after
25 A241-000030 1
KNOB,CHOKE
