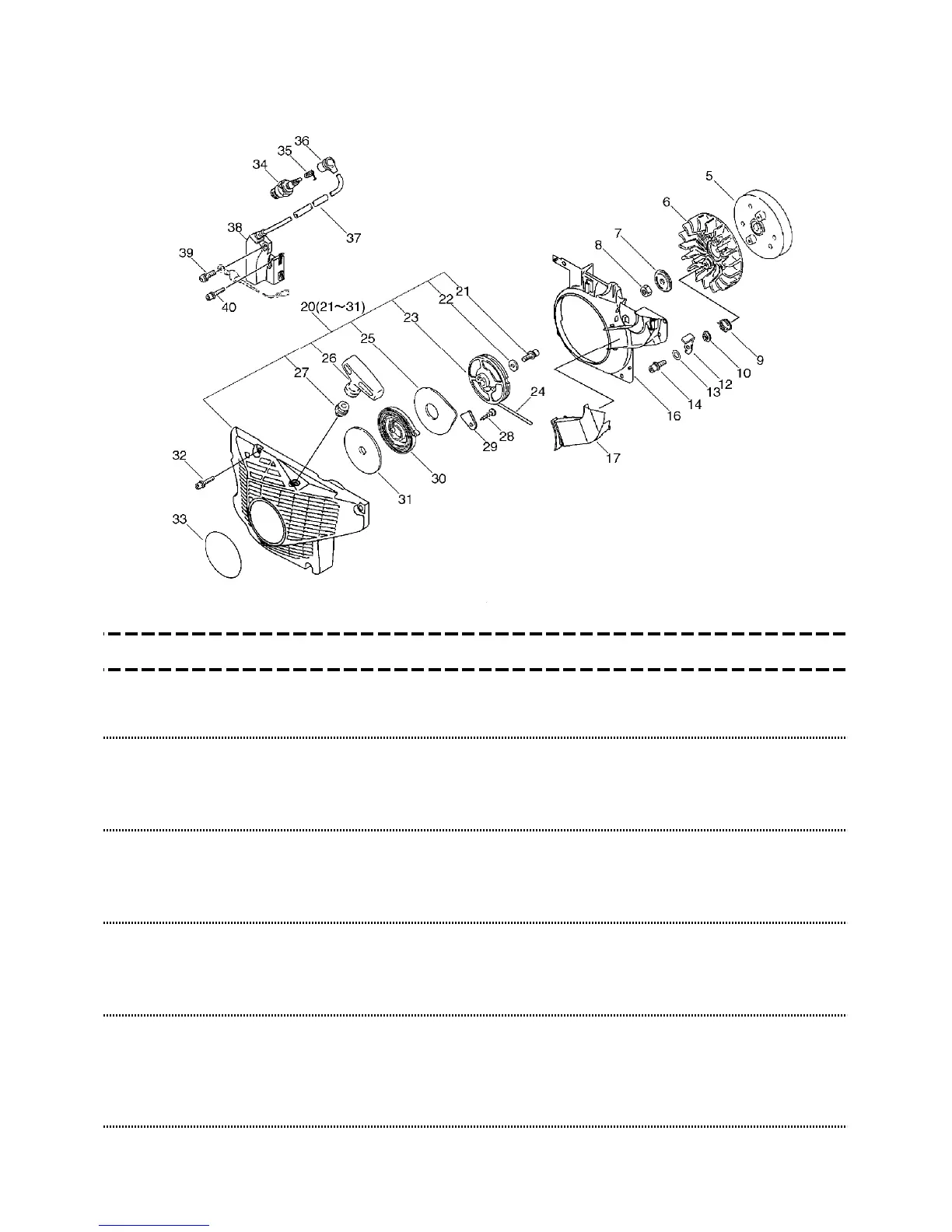

4. Starter, Magneto(Sr/Nr 36008566 and before)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
5 156800-32631 1 ROTOR, MAGNETO
6 101521-32330 1
FAN, COOLING
7 100143-19830 1
WASHER
8.2*31*0.8
8 900500-00008 1
NUT 8
8*P1.25
9 177234-19830 2
SPRING, RETURN
Sus. by 177234-
19832
9 177234-19831 2
SPRING, RETURN
Sus. by 177234-
19832
9 177234-19832 2
SPRING, RETURN
10 177247-19830 2
SPACER, RATCHET
Sr/Nr 35005074
and before
10 V353-000190 2
COLLAR,5
Sr/Nr 35005075
and after
12 177218-32630 2
PAWL, STARTER
Sr/Nr 35005074
and before
12 177218-32631 2
PAWL, STARTER
Sr/Nr 35005075
and after
13 900603-00005 2
WASHER 5
5.5*12*0.8
14 900162-05014 2
BOLT, H.S. 5*14
5*14 W,SW
Sr/Nr 35005074
and before
14 900162-05020 2
BOLT, H.S. 5*20
5*20 W,SW
Sus. by V203-
000150
14 V203-000150 2
BOLT,5
5*18
Sr/Nr 35005075
and after
16 A172-000130 1
COVER,FAN
17 A161-000020 1
DUCT,AIR
- 8 -
