Echo CS-6702 User Manual

CS-6702(6digits)(35)(36)

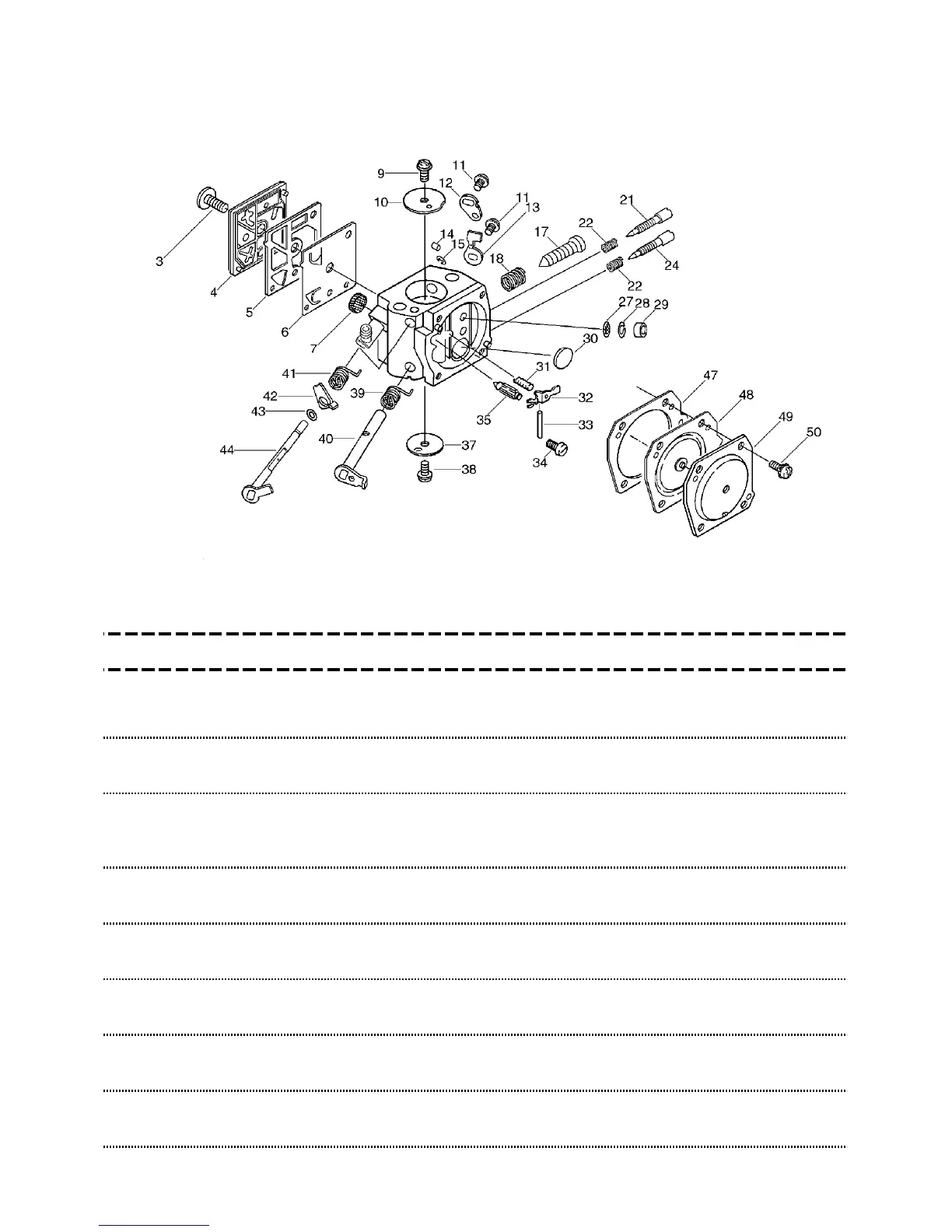

14. Carburetor(Sr/Nr 35999999 and before)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
A021-000250 1 CARBURETOR,DIAPHRAGM HDA-202
3 + 123110-16130 1
SCREW, PUMP COVER
4 + 123124-19830 1
COVER, FUEL PUMP
5 + 123125-12330 1
GASKET, FUEL PUMP
6 + 123112-12330 1
DIAPHRAGM, FUEL PUMP
7 + 123126-10631 1
SCREEN, INLET
9 + 123114-38830 1
SCREW
10 + 123132-32430 1
VALVE, CHOKE
11 + 123114-03930 2
SCREW
Sus. by 123114-
38830
11 + 123114-38830 2
SCREW
12 + P003-000590 1
LEVER, CHOKE
13 + 123156-12330 1
STOP, THROTTLE
14 + 123178-15030 1
PLUG, FRICTION
15 + 123127-15030 1
RING
17 + 123134-19730 1
SCREW, IDLE ADJUST
18 + P003-000540 1
SPRING, IDLE ADJUST
21 + P003-000580 1
NEEDLE, HIGH SPEED
22 + 123121-16130 2
SPRING, NEEDLE
24 + P003-000570 1
NEEDLE, IDLE
27 + 123168-10631 1
SCREEN
28 + 123169-10630 1
RING, RETAINING
29 + 123146-17330 1
PLUG, CUP
30 + 123146-10631 1
PLUG, WELCH
31 + 123122-32630 1
SPRING, METER. LEVER
32 + 123123-18330 1
LEVER, METERING
- 34 -
