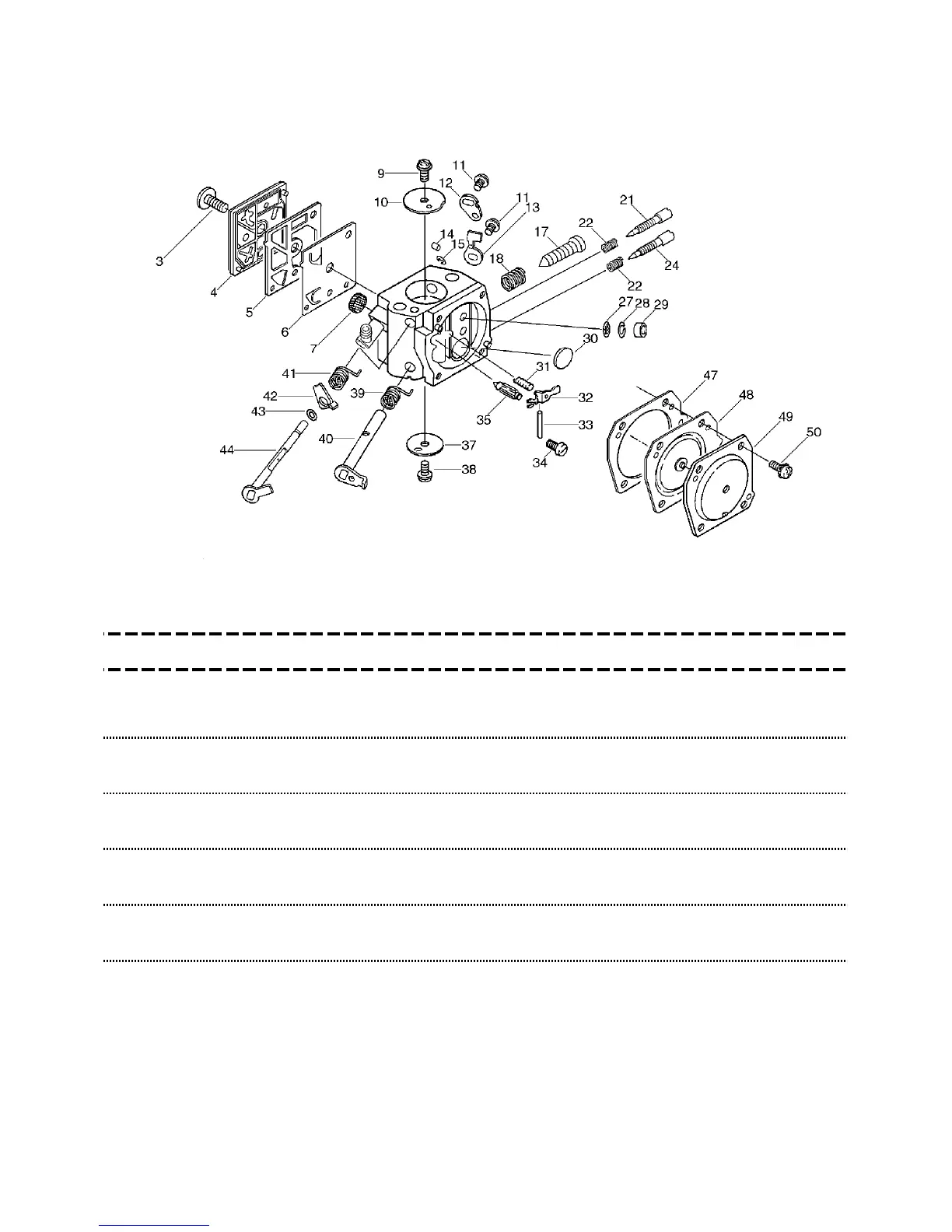

14. Carburetor(Sr/Nr 35999999 and before)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
33 + 123138-03930 1 PIN, METERING LEVER
34 + 123139-03930 1
SCREW, M. LEVER PIN
35 + 123137-19830 1
VALVE, INLET NEEDLE
37 + 123132-16130 1
VALVE, CHOKE
38 + 123114-05260 1
SCREW
39 + P003-000560 1
SPRING, THRT. RETURN
40 + P003-000550 1
SHAFT, THROTTLE
41 + P003-000610 1
SPRING
42 + P003-000620 1
LEVER-FAST IDLE
43 + 123149-26030 1
WASHER
44 + P003-000600 1
SHAFT, CHOKE
47 + 123140-18331 1
GASKET, M. DIAPHRAGM
48 + 123141-16131 1
DIAPHRAGM, METERING
49 + 123142-17330 1
COVER, M. DIAPHRAGM
50 + 123130-02960 4
SCREW
