Echo CS-6702 - Auto-Oiler System

CS-6702(6digits)(35)(36)

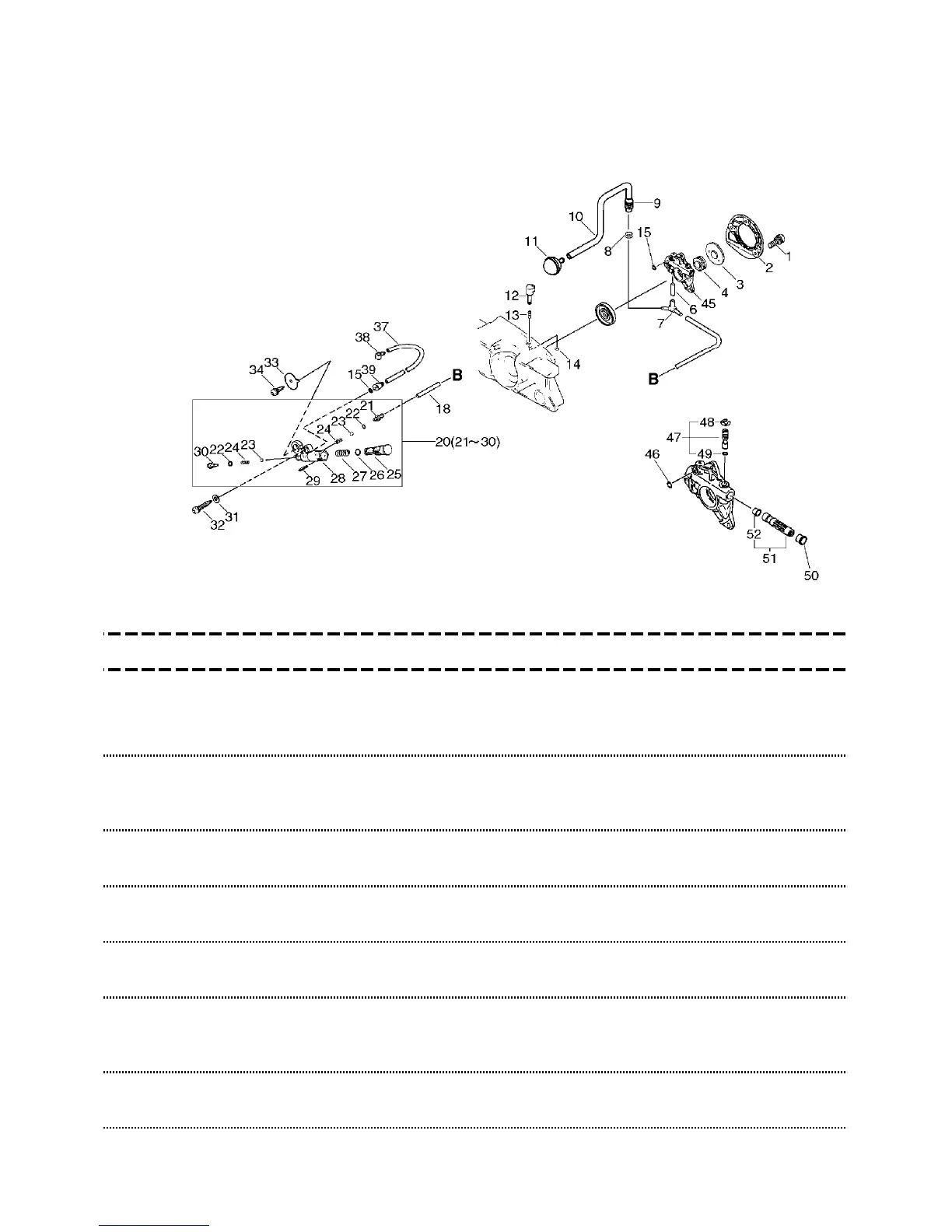

6. Auto-Oiler
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 900162-04012 3 BOLT, H.S. 4*12 4*12 W,SW
2 437605-32430 1
COVER, OIL PUMP
3 V309-000010 1
WASHER,CIRCULAR 12
12*37*3.2
Sr/Nr 002250 and
before
3 437066-30130 1
WASHER, CIRCULAR 12
Sr/Nr 002251 and
after
4 437063-19930 1
WORM (P)
6 437211-32430 1
PIPE
7 437212-32430 1
CONNECTOR, OIL PIPE
8 132013-26630 1
CLIP
6.5MM
9 132115-12330 1
GROMMET
10 437210-38330 1
PIPE, OIL
11 436205-14730 1
STRAINER, OIL
12 437039-37630 1
KNOB
13 437015-19830 1
SPRING
14 900700-00003 1
E-RING 3
CE-3
15 900720-00003 2
O-RING P-3
P-3
18 437210-15130 1
PIPE, OIL
3*6*200L
20 437100-38831 1
OIL PUMP ASSY
Sus. by 437100-
38832
20 437100-38832 1
OILER ASY, MANUAL
21 + 437118-19830 1
NIPPLE
22 + 437122-03430 2
O-RING
23 + 437012-00330 2
VALVE, BALL
24 + 437013-00330 2
SPRING, VALVE
Sus. by V450-
000290
