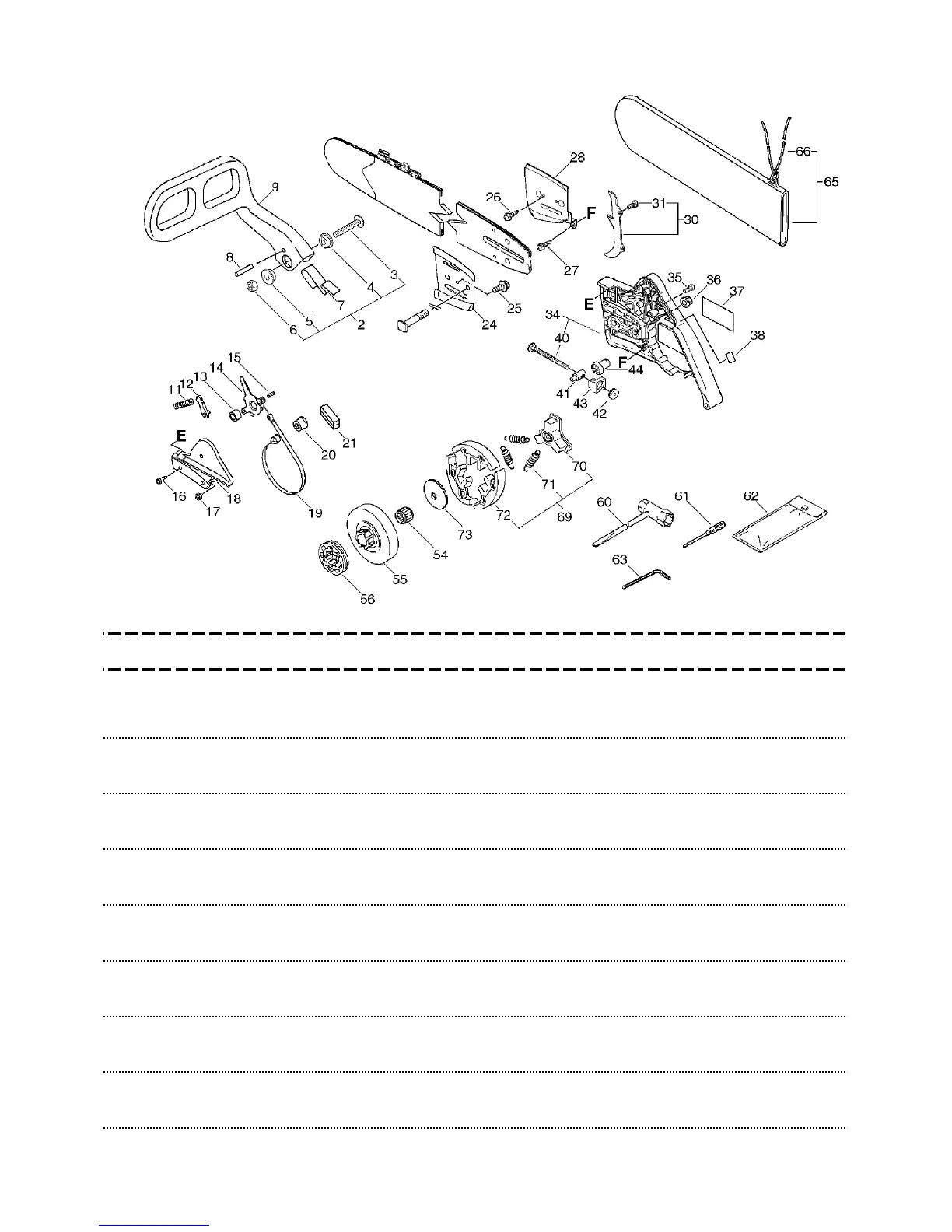

11. Clutch, Sprocket, Tools(Sr/Nr 36008567 and after)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
2 433113-37539 1 SCREW KIT
3 + 900209-05035 1
SCREW
5*35
4 + 433167-39730 1
COLLAR 5
5 + 433167-39130 1
SPACER
6 + 900562-50005 1
LOCKNUT 5
5
7 433114-38131 1
SPRING
8 900330-35260 1
PIN 3.5*26
3.5*26
9 433105-38131 1
LEVER, BRAKE
11 433122-38130 1
SPRING, BRAKE
12 433209-35430 1
STOPPER, BRAKE
13 433116-35430 1
SPACER 8
8*12*9
14 433208-35431 1
LEVER, BRAKE
15 900330-40088 1
ROLLER 4*8.8
4*8.8
16 900252-04012 2
SCREW 4*12
4*12
17 900500-00003 1
NUT 3
3
18 433310-38130 1
COVER, BRAKE
19 433123-38131 1
BAND, BRAKE
20 433142-35430 1
ADJUSTER, BRAKE
21 433312-32630 1
COVER, SEAL
24 433013-30830 1
PLATE, GUIDE (INNER)
25 900241-04008 1
SCREW 4*8
4*8
26 900241-03006 2
SCREW 3*6
3*6
27 900253-04010 1
SCREW 4*10
4*10
28 C305-000040 1
PLATE,SPROCKET GUARD
30 P021-002880 1
BUMPER,SPIKED
31 + 900105-05012 2
BOLT, H.S. 5*12
5*12
