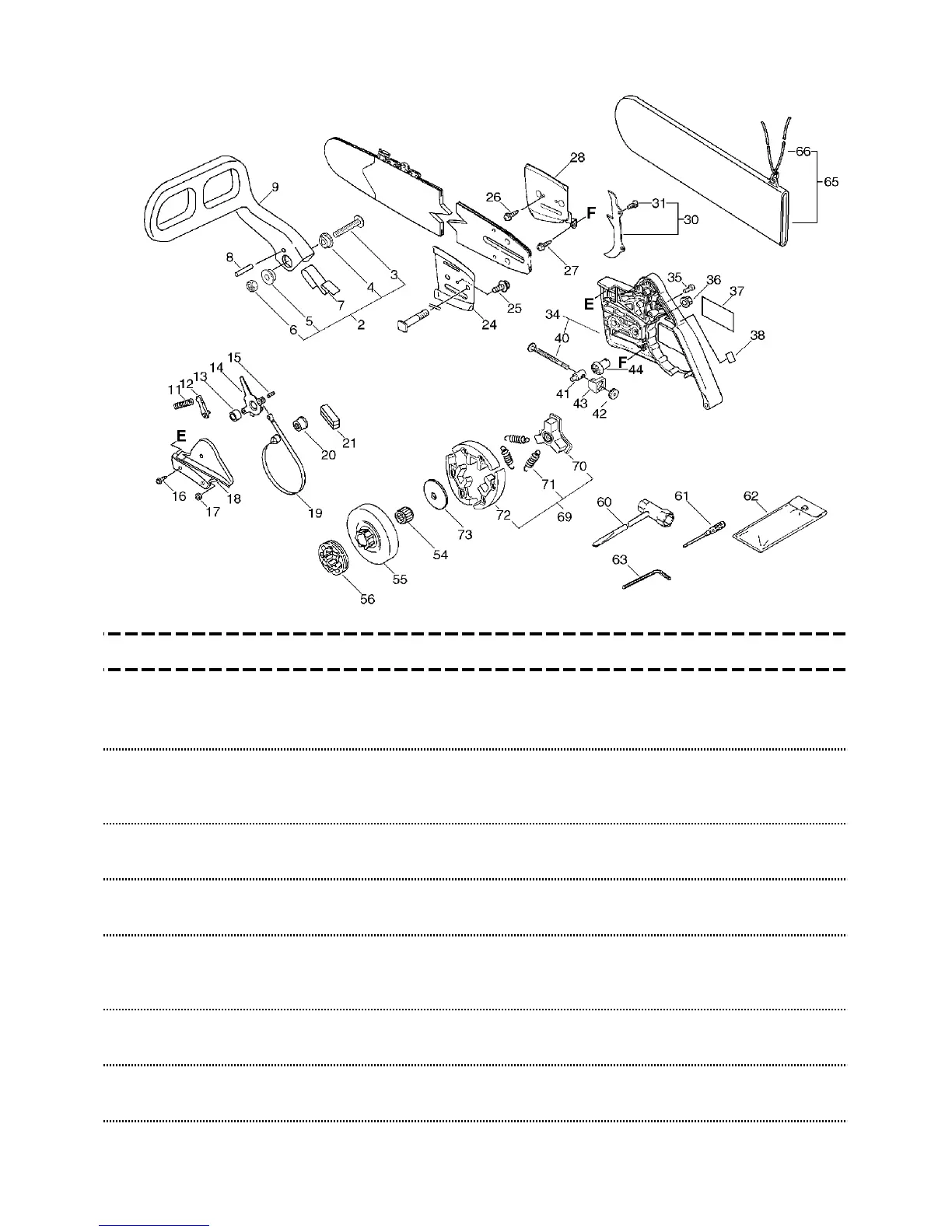

11. Clutch, Sprocket, Tools(Sr/Nr 36008567 and after)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
34 P021-002284 1 SPROCKET GUARD
Sus. by P021-
002285
34 P021-002285 1
SPROCKET GUARD
40 V203-000110 1
BOLT,5
35 900220-03018 1
SCREW (+-SR 3*18)
3*18
36 433019-12330 2
NUT, FLANGE 8
M-8
37 890118-15130 1
LABEL, ECHO
Sus. by X502-
000560
37 X502-000560 1
LABEL,ECHO
38 890155-30130 1
LABEL, CAUTION
41 C309-000030 1
TENSIONER,CHAIN
42 V651-000011 1
GEAR,BEVEL
43 V355-000270 1
COLLAR,8
44 V651-000001 1
GEAR,BEVEL
54 175012-32430 1
BEARING, NEEDLE
12*18*12
55 175105-32430 1
DRUM, CLUTCH
Sus. by 175105-
32431
55 175105-32431 1
DRUM, CLUTCH
56 175033-14731 1
SPROCKET, RIM 68210S
60 895410-02830 1
WRENCH, W/S. DRIVER
61 895812-03930 1
DRIVER, SCREW 50
62 898510-39130 1
BAG, TOOL
63 895610-00130 1
L-WRENCH (4MM)
65 898548-14531 1
SCABBARD, CHAIN
66 + 898568-14530 1
ROPE
5*900
69 A056-000050 1
CLUTCH
- 28 -
