CS-6702(6digits)(35)(36)

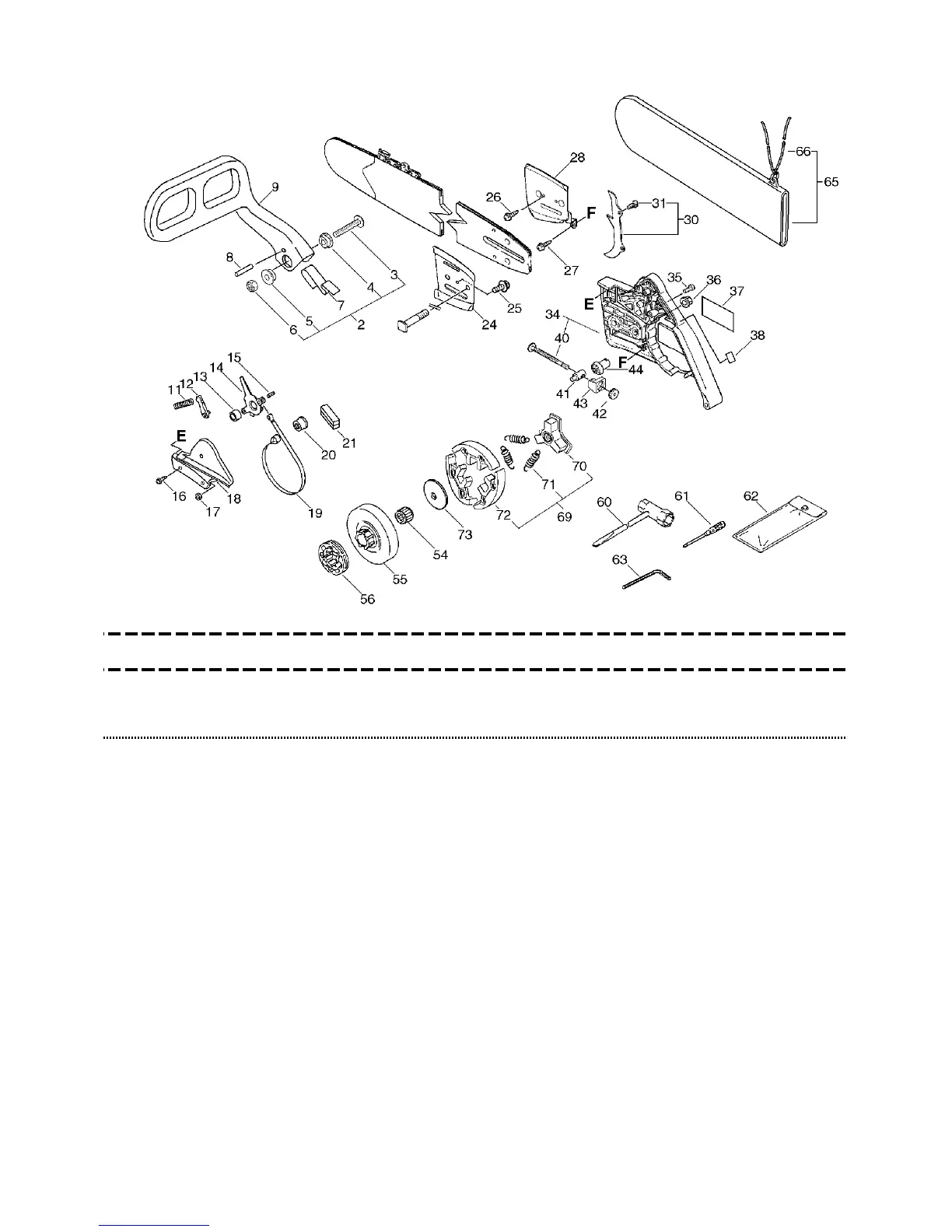

11. Clutch, Sprocket, Tools(Sr/Nr 36008567 and after)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
70 + A552-000040 1
HUB,CLUTCH
71 + V451-000430 3
SPRING,TENSION
72 + P021-007790 1
SHOE,CLUTCH
73 A551-000051 1
PLATE,CLUTCH
- 29 -
