Echo CS-6702 - Lever, Brake Spring, Brake Stopper, Brake Spacer; Lever, Brake Roller Screw 4*12; Lever, Brake 1 Roller 4*8.8; Nut 3

CS-6702(6digits)(35)(36)

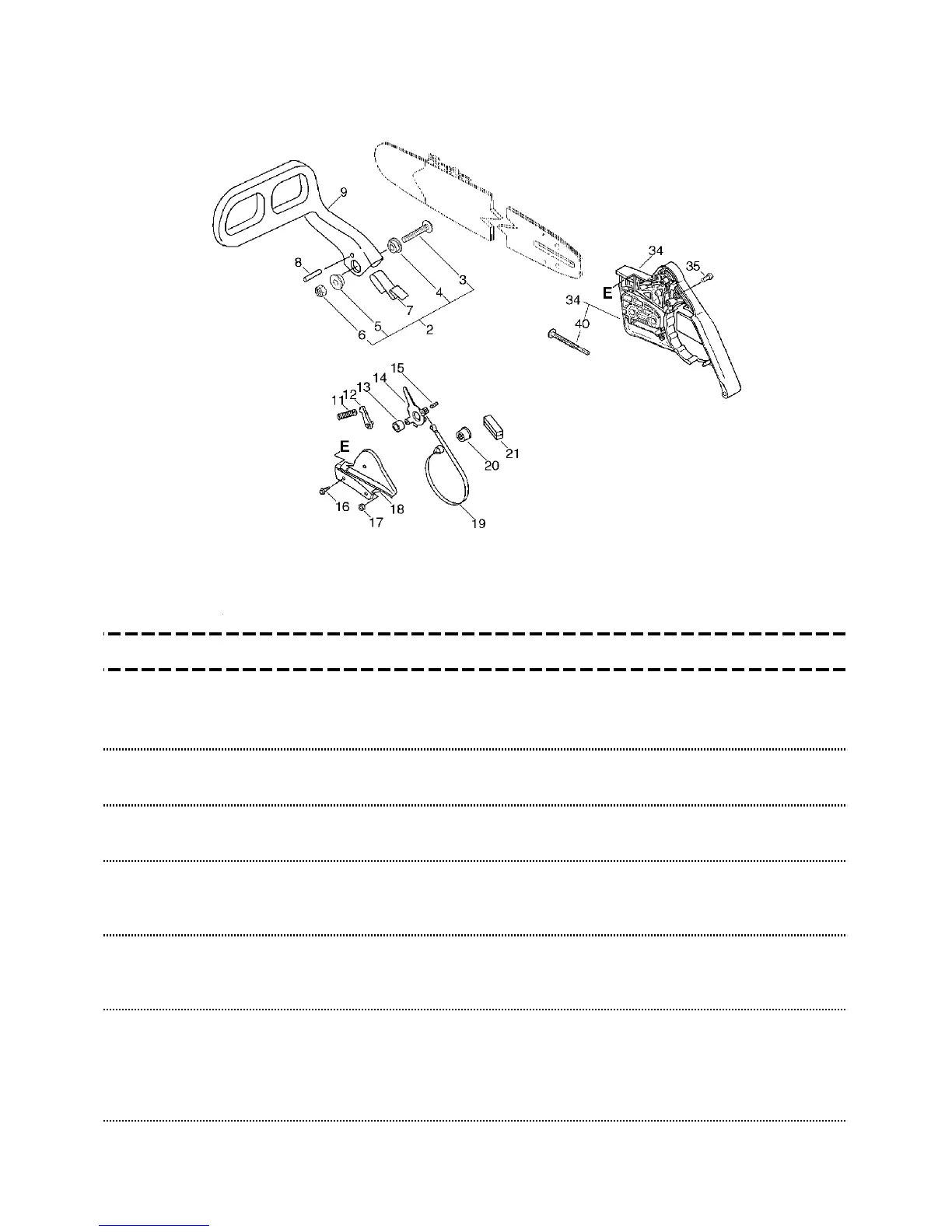

12. Chain Brake Asy(Sr/Nr 36008566 and before)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
9 + 433105-38130 1 LEVER, BRAKE
Sus. by 433105-
38131
9 + 433105-38131 1
LEVER, BRAKE
11 + 433122-38130 1
SPRING, BRAKE
12 + 433209-35430 1
STOPPER, BRAKE
13 + 433116-35430 1
SPACER 8
8*12*9
14 + 433208-35431 1
LEVER, BRAKE
15 + 900330-40088 1
ROLLER 4*8.8
4*8.8
16 + 900252-04012 2
SCREW 4*12
4*12
17 + 900500-00003 1
NUT 3
3
18 + 433310-38130 1
COVER, BRAKE
19 + 433123-38130 1
BAND, BRAKE
Sus. by 433123-
38131
19 + 433123-38131 1
BAND, BRAKE
20 + 433142-35430 1
ADJUSTER, BRAKE
21 + 433312-32630 1
COVER, SEAL
34 + P021-002281 1
SPROCKET GUARD
Sus. by P021-
002282
34 + P021-002282 1
SPROCKET GUARD
Sr/Nr 36004180
and before
34 + P021-002283 1
SPROCKET GUARD
Sus. by P021-
002284
34 + P021-002284 1
SPROCKET GUARD
Sus. by P021-
002285
40 ++ V203-000110 1
BOLT,5
35 + 900220-03018 1
SCREW (+-SR 3*18)
3*18
- 31 -
