Echo CS-6702

CS-6702(6digits)(35)(36)

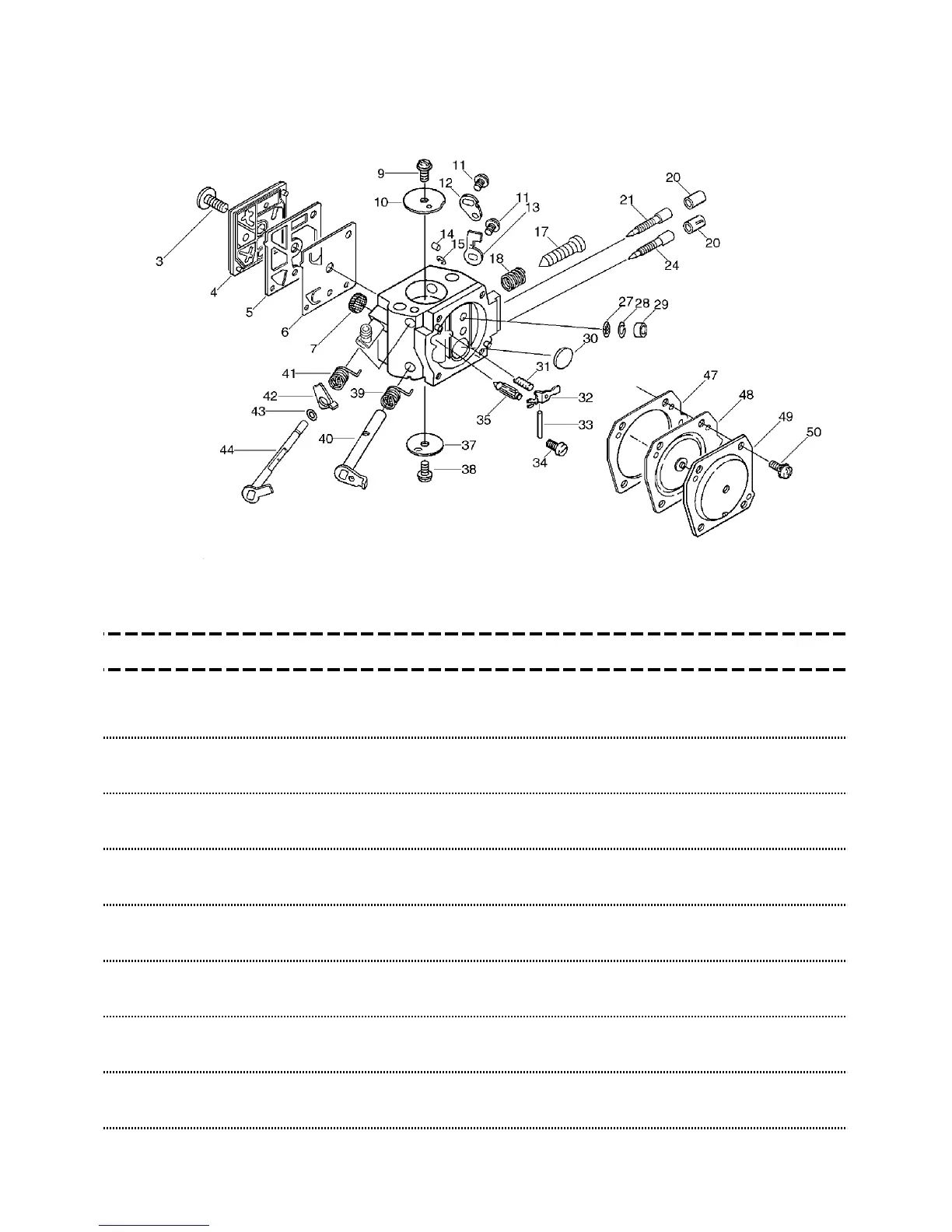

15. Carburetor(Sr/Nr 36001001 and before)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
A021-000290 1 CARBURETOR,DIAPHRAGM HDA-203
3 + 123110-16130 1
SCREW, PUMP COVER
4 + 123124-19830 1
COVER, FUEL PUMP
5 + 123125-12330 1
GASKET, FUEL PUMP
6 + 123112-12330 1
DIAPHRAGM, FUEL PUMP
7 + 123126-10631 1
SCREEN, INLET
9 + 123114-38830 1
SCREW
10 + 123132-32430 1
VALVE, CHOKE
11 + 123114-38830 2
SCREW
12 + P003-000590 1
LEVER, CHOKE
13 + 123156-30830 1
STOP, THROTTLE
14 + 123178-15030 1
PLUG, FRICTION
15 + 123127-15030 1
RING
17 + 123134-19730 1
SCREW, IDLE ADJUST
18 + P003-000540 1
SPRING, IDLE ADJUST
20 + P003-000010 2
LIMITER CAP
21 + 123120-32631 1
NEEDLE, HIGH SPEED
24 + 123118-02261 1
NEEDLE
27 + 123168-10631 1
SCREEN
28 + 123169-10630 1
RING, RETAINING
29 + 123146-17330 1
PLUG, CUP
30 + 123146-10631 1
PLUG, WELCH
31 + 123122-32630 1
SPRING, METER. LEVER
32 + 123123-18330 1
LEVER, METERING
33 + 123138-03930 1
PIN, METERING LEVER
34 + 123139-03930 1
SCREW, M. LEVER PIN
- 36 -
