Echo CS-6702 - Page 20

CS-6702(6digits)(35)(36)

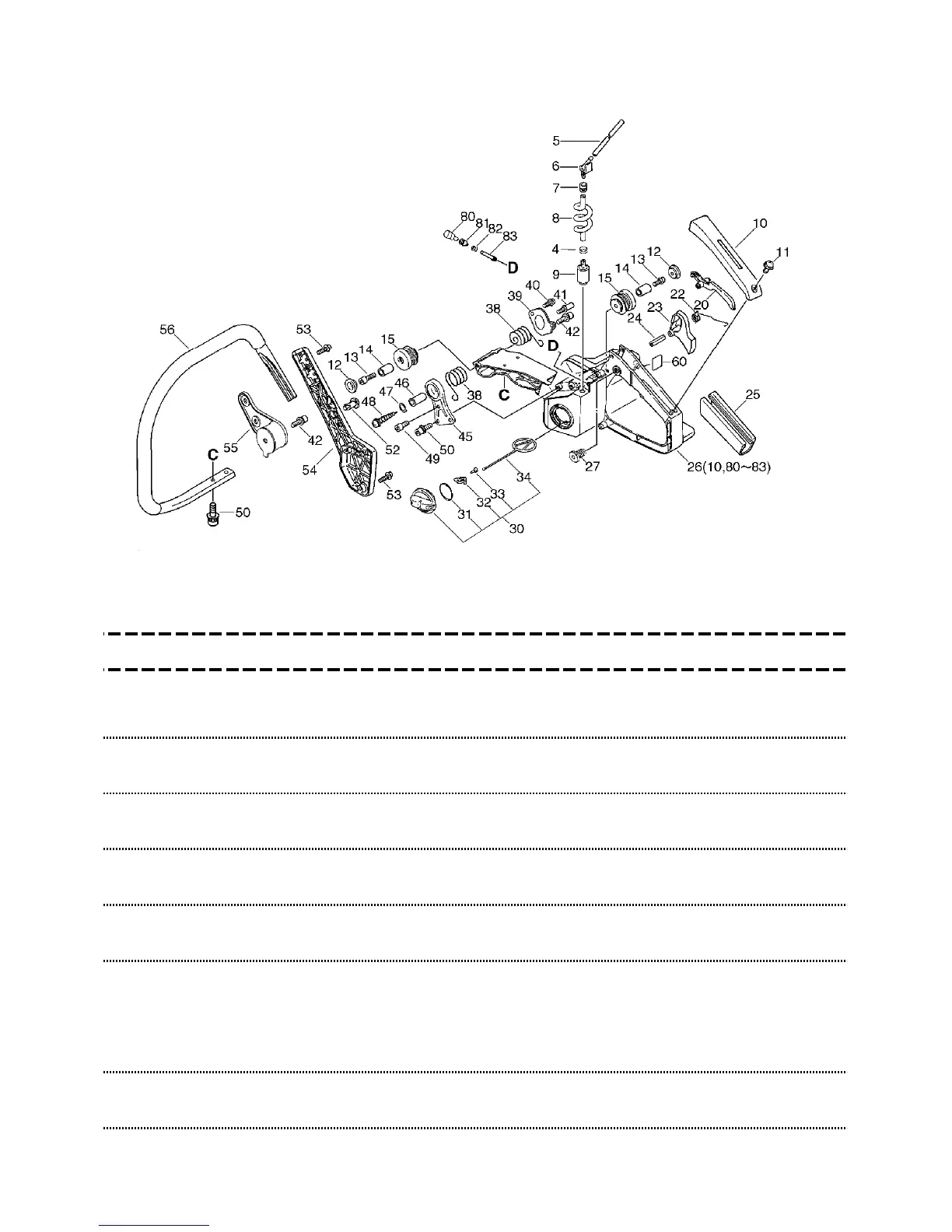

8. Handle(Sr/Nr 36008567 to 36011479)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
82 + 130111-00530 1 CLIP 5.5
83 + 131312-32430 1
PIPE, VENT
27 V162-000040 1
PLUG
30 131004-37631 1
CAP ASSY, FUEL TANK
31 + 900720-20029 1
O-RING 29
P-29
32 + 131050-19830 1
RETAINER, LINK
33 + 900246-03008 1
SCREW 3*8
3*8
34 + 131051-19830 1
LINK
60L
38 V450-000150 2
SPRING,COMPRESSION
39 V150-000750 1
PLATE,EYE
40 900162-04008 1
BOLT, H.S. 4*8
4*8 W,SW
41 V203-000050 1
BOLT,5
42 900162-05014 2
BOLT, H.S. 5*14
5*14 W,SW
45 V419-000010 1
BRACKET,CUSHION
46 V353-000120 1
COLLAR,5
47 900630-00005 1
WASHER 5
5(ﾄｸ)5.5*16*1T
48 900253-05035 1
SCREW 5*35
5*35
Sr/Nr 36008567 to
36011479
49 900105-05008 1
BOLT, H.S. 5*8
5*8
50 900162-05014 4
BOLT, H.S. 5*14
5*14 W,SW
52 V649-000010 1
RIVET
53 900238-05020 5
SCREW 5*20
5*20
54 351616-38130 1
BRACKET, HANDLE
55 V401-000050 1
CUSHION,5
- 19 -
