CS-6702(6digits)(35)(36)

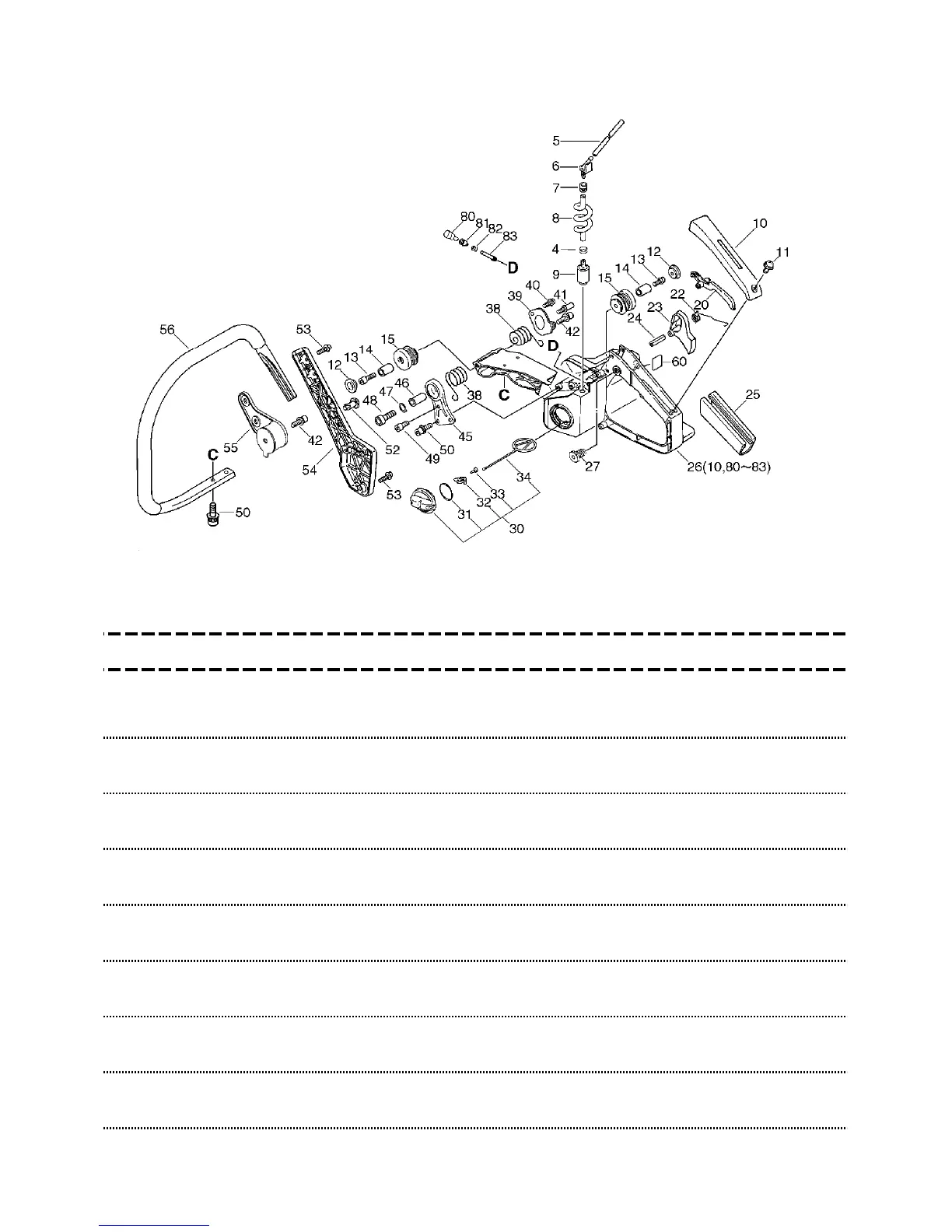

9. Handle(Sr/Nr 36011480 and after)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
4 132013-26630 1 CLIP 6.5MM
5 132010-56030 1
PIPE 3*6*110
3*6*110 NBR
6 132011-19831 1
CONNECTOR, FUEL PIPE
7 132115-01461 1
GROMMET
8 132010-30830 1
PIPE
9 131205-19830 1
STRAINER, FUEL
11 900238-04014 1
SCREW 4*14
4*14
12 100918-19830 2
CAP, CUSHION
13 900105-05025 2
BOLT, H.S. 5*25
5*25
14 V353-000110 2
COLLAR,5
15 V420-000530 2
CUSHION
20 178090-37930 1
LOCKOUT, T. CONTROL
22 178043-19830 1
SPRING, THR. RETURN
23 C450-000042 1
TRIGGER,THROTTLE
24 900342-50025 1
PIN, SPRING 5*25
5*25
25 351111-19830 1
GRIP, HANDLE
26 351103-32433 1
HANDLE, REAR
10 + 351155-35430 1
COVER, HANDLE (BL)
80 + 131300-56430 1
VALVE, CHECK
81 + 131328-40630 1
COVER, VENT
82 + 130111-00530 1
CLIP
5.5
83 + 131312-32430 1
PIPE, VENT
27 V162-000040 1
PLUG
30 131004-37631 1
CAP ASSY, FUEL TANK
31 + 900720-20029 1
O-RING 29
P-29
32 + 131050-19830 1
RETAINER, LINK
- 21 -
