Echo CS-6702 - Page 25

CS-6702(6digits)(35)(36)

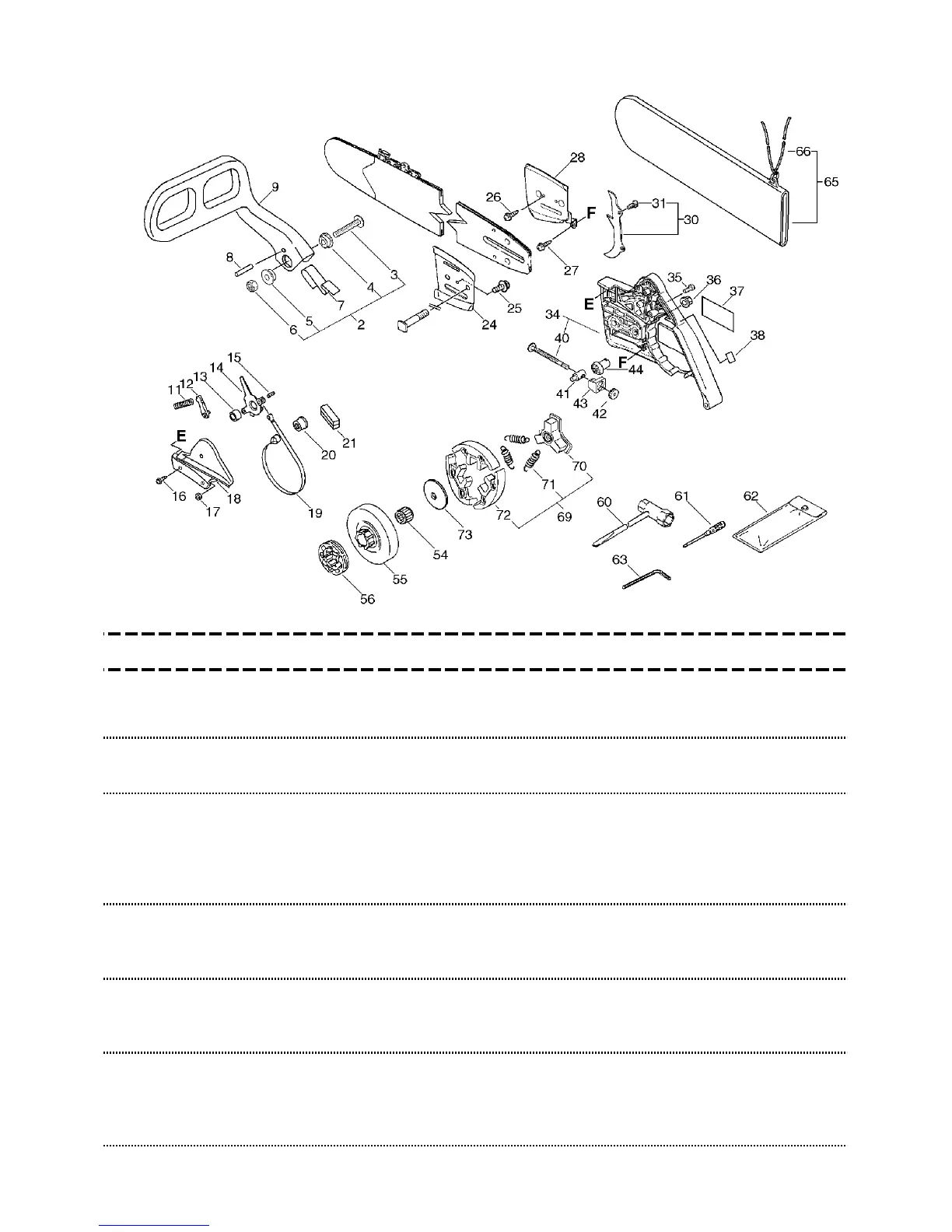

10. Clutch, Sprocket, Tools(Sr/Nr 36008566 and before)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
25 900241-04008 1 SCREW 4*8 4*8
26 900241-03006 2
SCREW 3*6
3*6
27 900253-04010 1
SCREW 4*10
4*10
28 C305-000040 1
PLATE,SPROCKET GUARD
30 P021-002880 1
BUMPER,SPIKED
31 + 900105-05012 2
BOLT, H.S. 5*12
5*12
34 P021-002281 1
SPROCKET GUARD
Sus. by P021-
002282
34 P021-002282 1
SPROCKET GUARD
Sr/Nr 36004180
and before
34 P021-002283 1
SPROCKET GUARD
Sus. by P021-
002284
34 P021-002284 1
SPROCKET GUARD
Sus. by P021-
002285
40 + V203-000110 1
BOLT,5
35 900220-03018 1
SCREW (+-SR 3*18)
3*18
36 433019-12330 2
NUT, FLANGE 8
M-8
37 890118-38130 1
LABEL, ECHO
Sus. by 890118-
15130
38 890155-30130 1
LABEL, CAUTION
40 V203-000040 1
BOLT,5
Sus. by V203-
000041
40 V203-000041 1
BOLT,5
Sr/Nr 36004180
and before
41 C309-000030 1
TENSIONER,CHAIN
