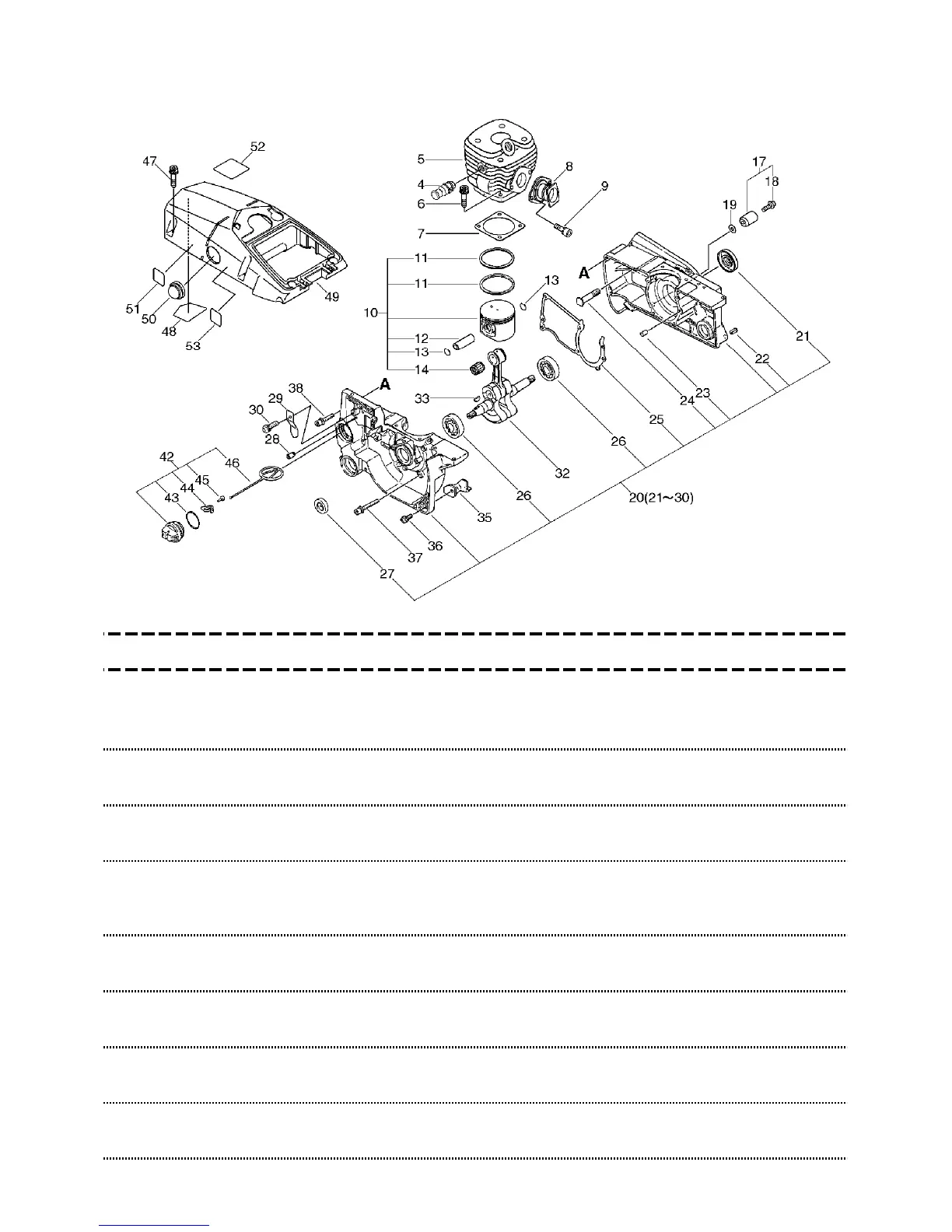

1. Cylinder, Crankcase, Piston
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
21 + 100212-32430 1 OILSEAL (L) 25Z-15*39.9*7
22 + 900345-50010 1
PIN, SPRING 5*10SUS
5*10SUS
23 + 100215-02830 2
PIN, DOWEL
24 + 433011-19830 2
STUD, GUIDE BAR
25 + 100242-32430 1
GASKET, CRANKCASE
26 + 900810-36202 2
BEARING, BALL 6202
6202/C3
27 + 100212-19830 1
OILSEAL
ISM 15*25*6
28 + 436114-13930 1
VALVE, CHECK
29 + V150-000570 1
PLATE,EYE
30 + 900242-04008 1
SCREW
4*8
32 A011-000130 1
CRANKSHAFT,ASM
Sus. by A011-
000250
32 A011-000250 1
CRANKSHAFT,ASM
33 100142-30830 1
KEY, WOODRUFF
35 V401-000060 1
CUSHION,5
36 900238-05014 1
SCREW 5*14
5*14
37 900162-05035 4
BOLT, H.S. 5*35
5*35 W,SW
38 900162-05020 2
BOLT, H.S. 5*20
5*20 W,SW
42 436001-37933 1
CAP ASSY, OIL TANK
43 + 900725-02025 1
O-RING
JASO 2025
44 + 131050-19830 1
RETAINER, LINK
45 + 900246-03008 1
SCREW 3*8
3*8
46 + 131051-19830 1
LINK
60L
47 900162-05020 5
BOLT, H.S. 5*20
5*20 W,SW
48 V341-000010 1
WASHER,SQUARE
