Echo CS-800P Operator's Manual

27
CS-800P

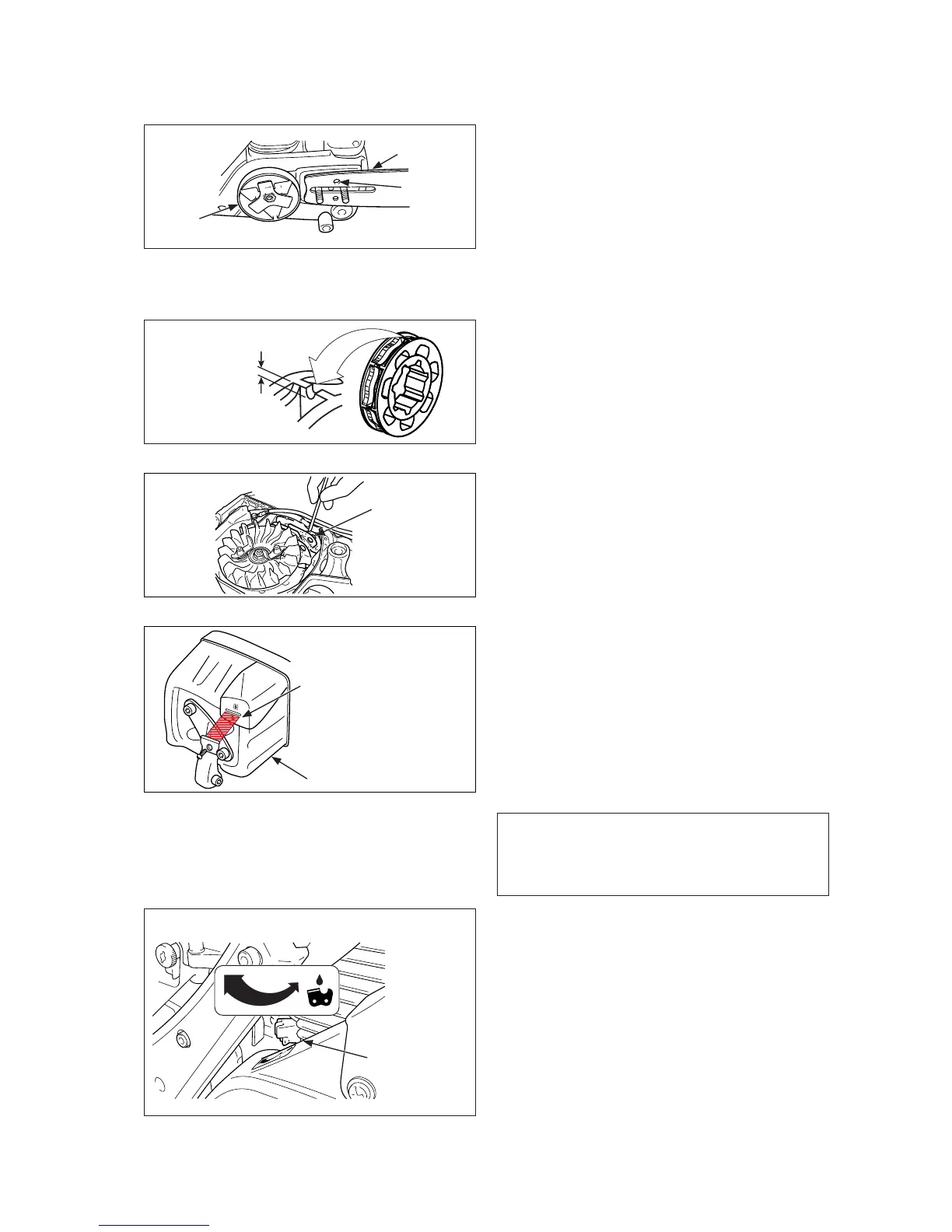

GUIDE BAR
• Cleanbeforeusing.
- Clean the groove of the guide bar with a small
screwdriver.
- Clean oil holes with a wire.
• Reverseguidebarperiodically.
• Checksprocketandtheclutchandcleanthebar
mount area before installation of the bar.
Replace either or both if worn.
SPROCKET
• Adamagedsprocketwillcausepremature
damage or wear of saw chain.
- When the sprocket has worn out 0.5 mm or
more, replace it.
• Checksprocketwhenyouinstallnewchain.
Replace it if worn.
CYLINDER FINS
• Checkperiodically.
• Cloggednswillresultinpoorenginecooling.
• Removedirtanddustfrombetweennstolet
cooling air pass easily.
MUFFLER SPARK ARRESTOR
• Removeaircleanercoverandremovespark
plug lead.
• Removesparkarrestorscreenfrommufer
body.
• Cleancarbondepositsfrommufercomponents.
• Replacescreenifitiscracked,orhasholes
burned through.
• Assemblecomponentsinreverseorder.
NOTICE
Carbon deposits in muffler will cause drop in
engine output. Spark arrestor screen must be
checked periodically.
AUTOMATIC OILER
• Thedischargevolumeoftheautomaticoileris
adjusted to 8 mL/min approximately at 7000
r/min, prior to shipment from factory.
- To increase the delivery volume, turn the
adjusting knob clockwise.
When the knob touches stopper and stops,
this position indicates maximum discharge
volume. (15 mL/min at 7000 r/min)
- Do not turn the adjusting knob beyond the
maximum or minimum limit of volume
adjustment.
Worn : 0.5 mm
Groove
Oil hole
Clutch
(Sprocket)
Cylinder fins
DecreaseIncrease
Adjusting knob
Spark arrestor screen
Muffler
