Description
Description

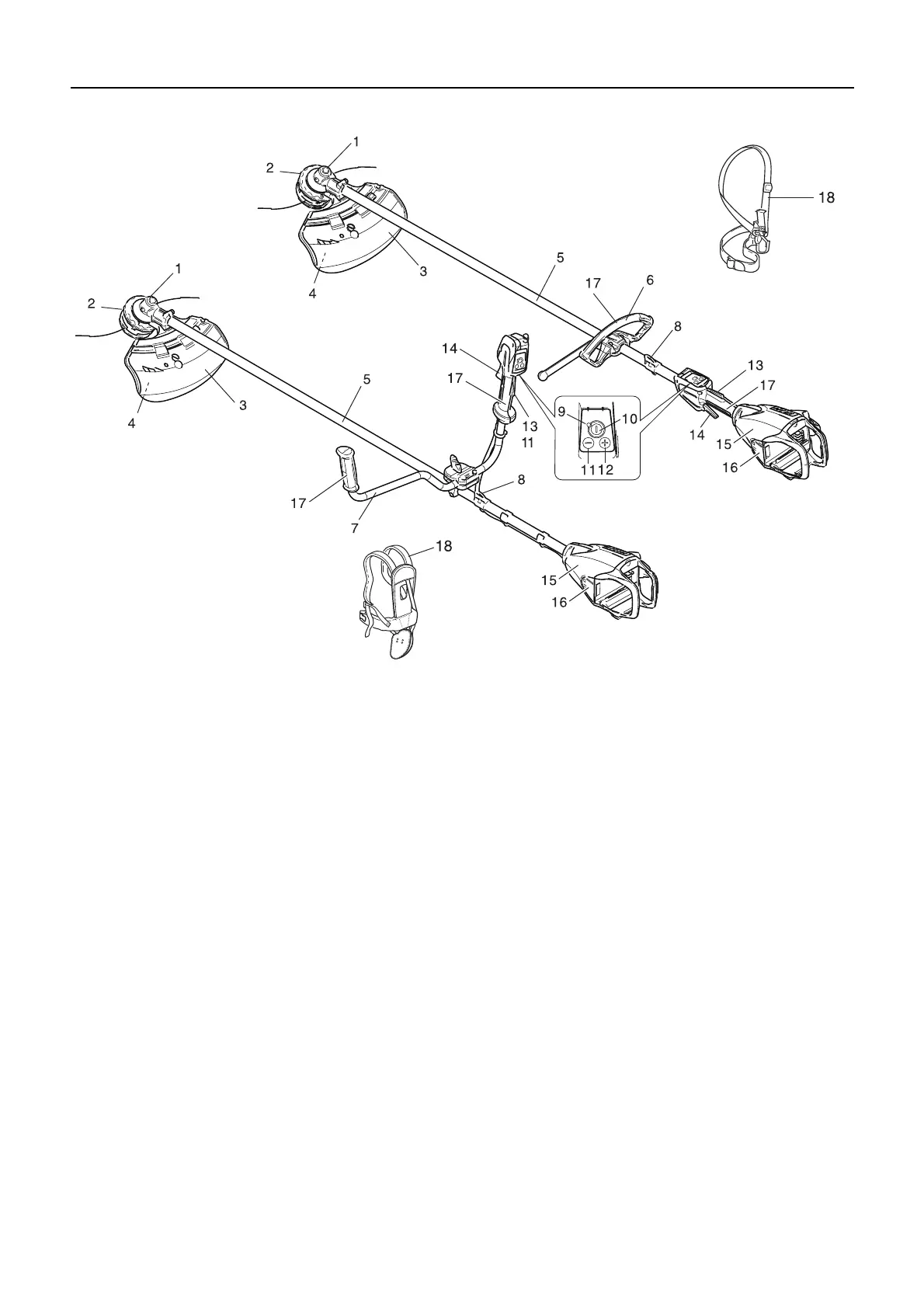

1. Angle transmission Having two gears to change the
angle of rotating axis.
2. Cutting attachment Nylon line cutting head for cutting
grass and weed.
3. Shield Device to protect the operator from accidental
contact with the cutting head and thrown objects.
4. Cut off knife Cut nylon line to adjust line length to prop-
er swath.
5. Shaft tube Part of the unit that provides a casing for
power transmission shaft.
6. Loop-handle Light weight, suitable for nylon line trim-
mer.
7. U-handle Having the configuration of a bicycle handle
bar to reduce working effort compared to a loop-handle.
8. Suspension point Device on which the harness can be
hooked.
9. Power indicator LED - Remains illuminated when pow-
er to unit is turned on. Turns off when power to unit is off.
10. Power button - Press once to turn on power to the unit,
power indicator LED illuminates. Press once more to
turn power off to unit, power indicator LED turns off.
11. - button
12. + button
13. Trigger switch lockout - Locks trigger switch in the off
position until you have a proper grip with your right hand
around the handle.
14. Trigger switch - Activated by the operator's finger for
turning the motor on.
15. Power head – Houses Motor and Battery.
16. Type and serial number
17. Gripping surface
18. Shoulder harness - An adjustable strap to suspend
unit.
