11
Before you start
4. When charging is complete, LED will remain GREEN.
5. Verify battery is fully charged by removing battery from
charger, then pressing battery charge status button (C), and
checking LED display (D).
One green light indicates that the battery has 0-25%
charge.
Two green lights indicate that the battery has 25-50%
charge.
Three green lights indicate that the battery has 50-75%
charge.
Four green lights indicate that the battery has 75-100%
charge.
6. Disconnect battery charger from power supply.

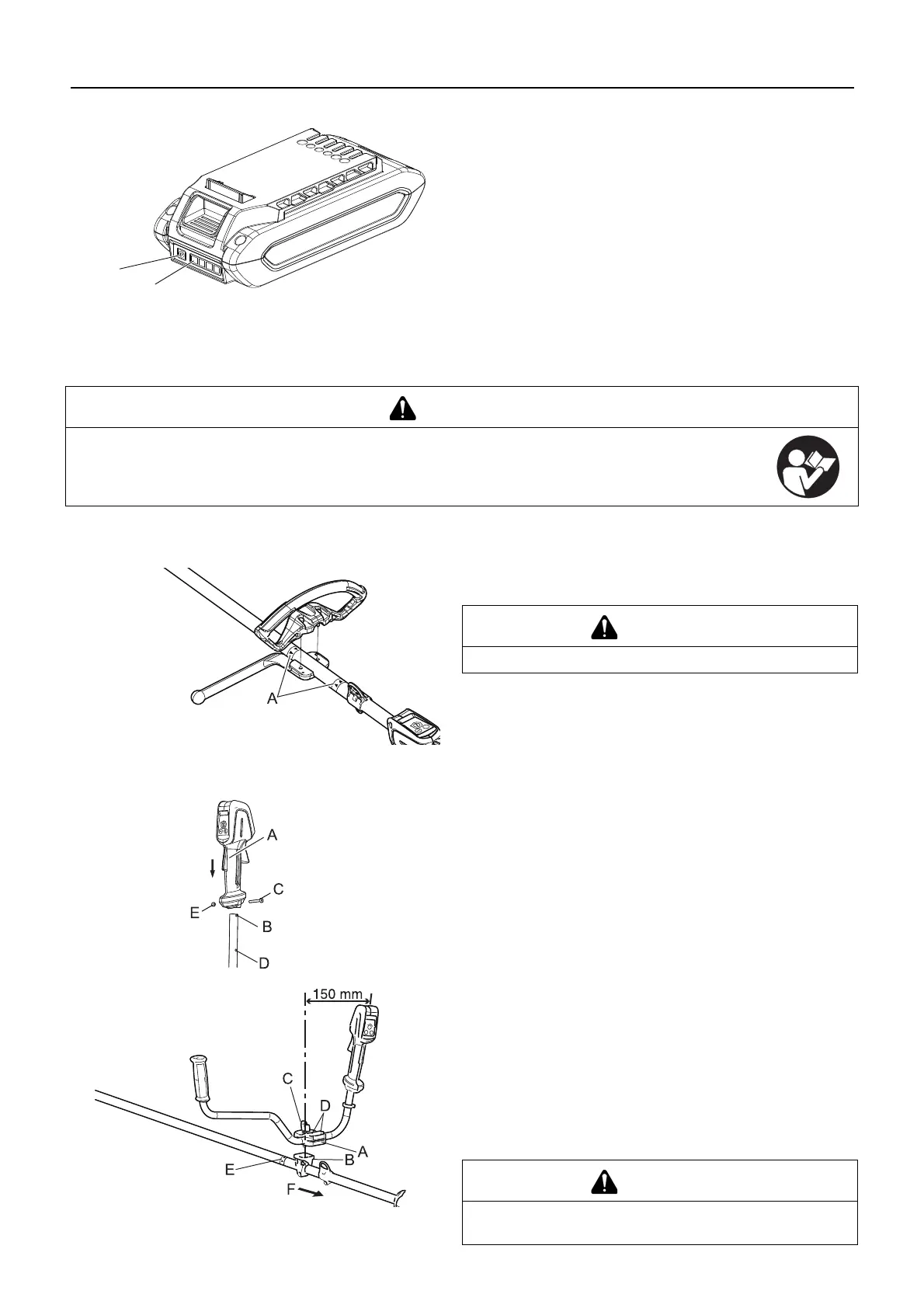

Assembly
Loop handle version
Loop handle assembly
Position handle in comfortable operating position and tighten
Bolts.
U-handle version
U-handle assembly
1. Slip the right-side handle into the throttle grip (A) and fit it to
the slot (B) for rotation prevention.
2. Locate the throttle grip so that the bolt (C) can pass through
the stopper hole (D).
3. Securely tighten the screw and nut (E).
1. Install handle assembling bracket (upper) (A) in handle as-
sembling bracket (lower) (B) and fix handle by tightening
handle assembling bolt (C) lightly.
2. Adjust inclination of handle to adequate position (easy to op-
erate) and tighten firmly handle assembling bolt.
To adjust the fixture bolt (D) proceed (As needed)
(1) Tighten the bolts until snug.
(2) Loosen the bolts 1
1
/
2
turn.
E: Arrow
F: To power head
WARNING
Read the operator's manual carefully to ensure that you assemble the product correctly.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.
CAUTION
Install the handle between the marks (A).
CAUTION
Install the handle to the power head side from the arrow
mark.
To Next Page
