ASSEMBLY
Tools Required: Locking Tool

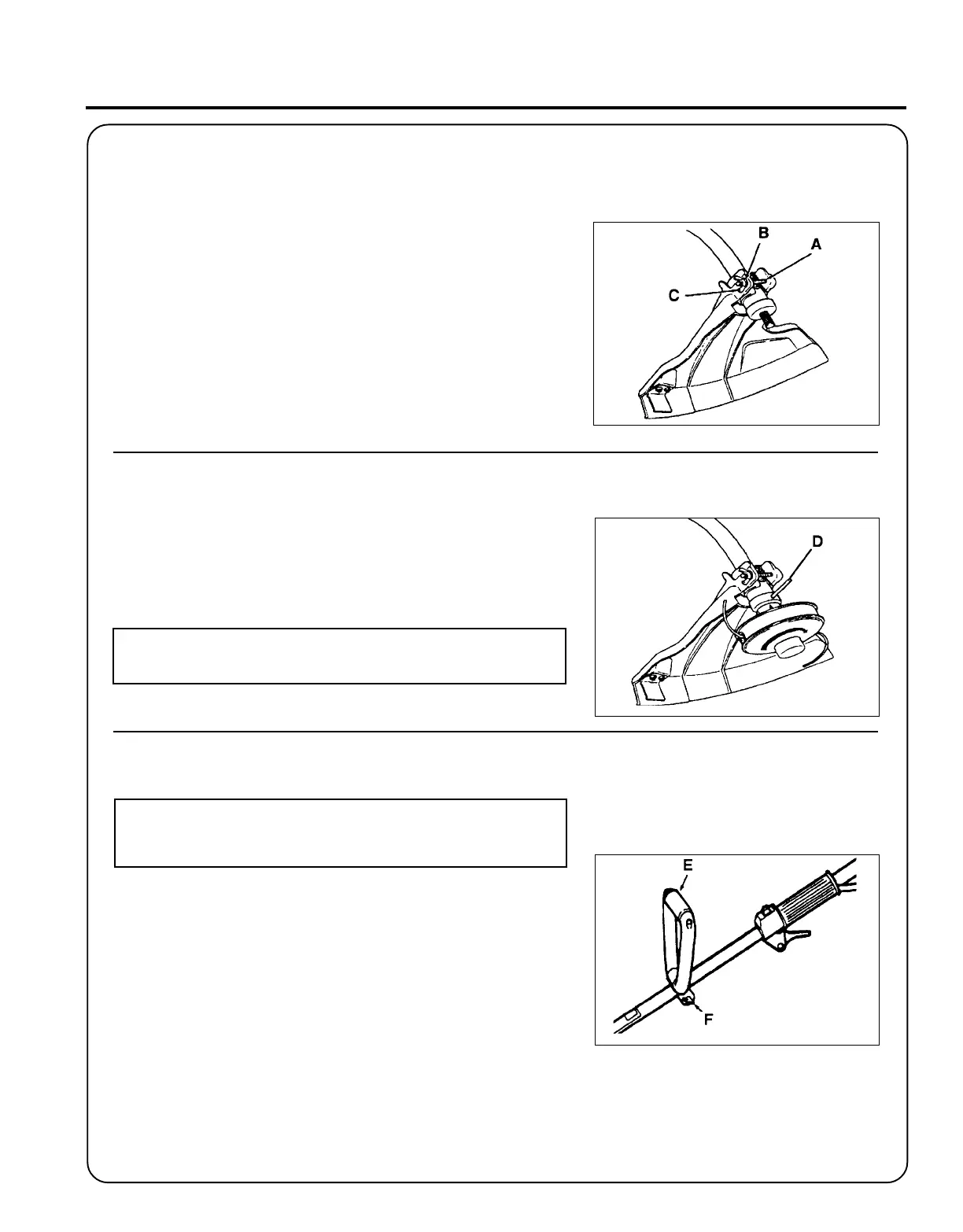

PLASTIC SHIELD
1. Snap the shield over the bearing housing.
2. Install bolt (A), washer (B) and wing nut (C).
NYLON LINE HEAD
1. Align locating hole in locating plate with hole in bearing housing.
2. Insert 1/8" dia. locking tool (D) (not included with unit) and thread
cutting attachment onto shaft clockwise until head is tight.
IMPORTANT
Remember to remove the locking tool.
FRONT (LOOP) HANDLE
NOTE
Front handle is pre-installed. Re-positioning and tightening is all
that is required.
1. Position front handle (E) in comfortable operating position and
tighten wing nut (F). The cutting attachment should be 5cm- 7.5cm
(2 in. -3 in.) above the ground and as level as possible.
HARNESS (GT-2400 ONLY)
1. Put on harness and attach unit to harness.
2. Slide harness clamp up or down until unit balances with cutting
head approximately 2"- 3" from the ground.
3. Tighten harness clamp screw.
To Next Page
