22
NOTE

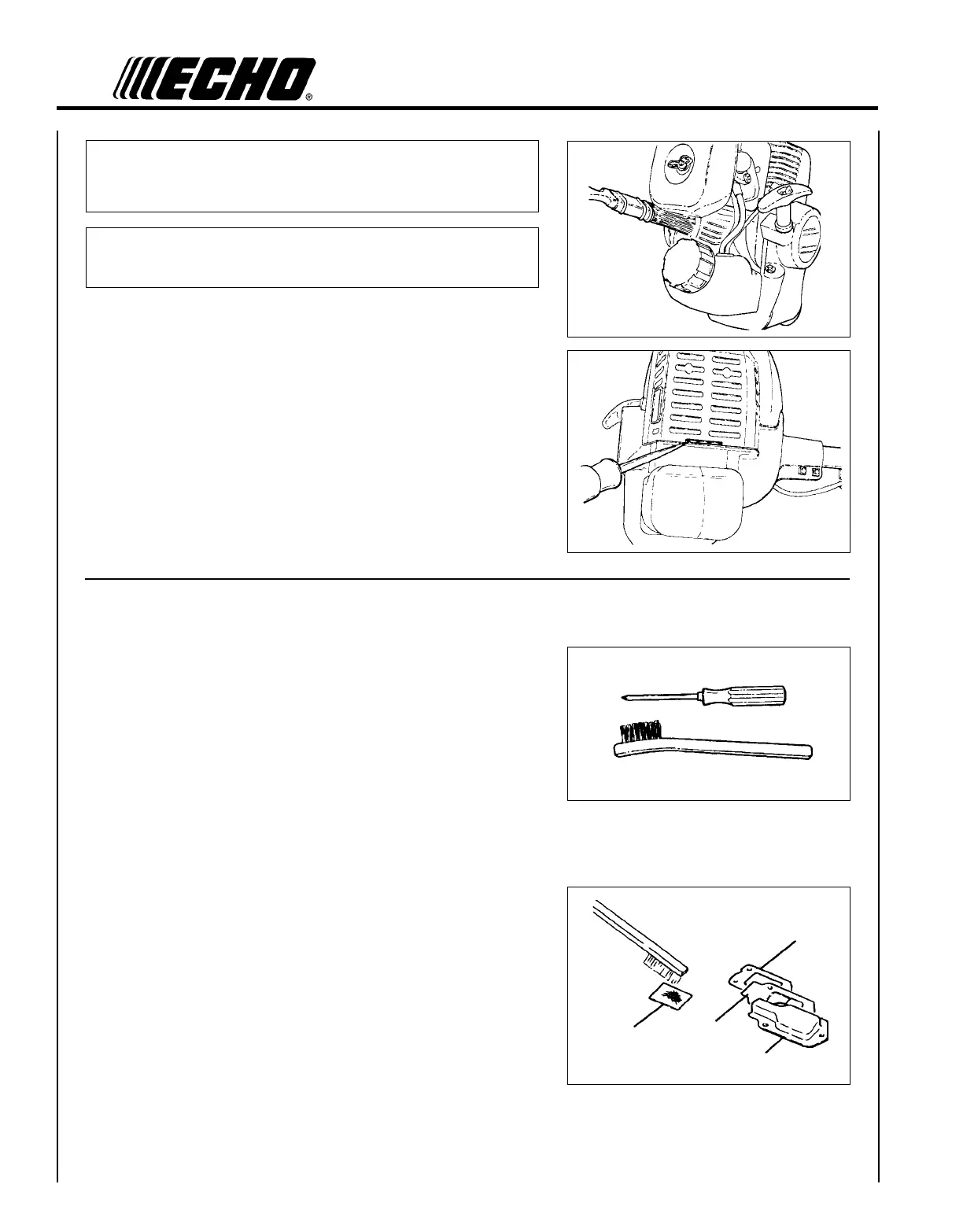

The throttle linkage remains assembled to the cover and the spark
plug lead and grommet remain installed.
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
3. Use the wooden stick or brush to remove dirt from the cylinder fins.
4. Remove grass and leaves from the grid between the starter and fuel
tank.
5. When installing the cover, be certain the tab of the metal deflector
shield is in the slot of the cover.
EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools Required: Cross Head Screwdriver. Soft metal brush.
Parts Required: Screen P/N 14586240630, Gasket Lid P/N 14586642031
1. Remove screen cover (A), holder (B) and gasket (C) from muffler
body.
2. Clean carbon deposits from screen (D) and muffler components.
3. Replace screen if it is cracked, plugged or has holes burned
through.
A
B
C
D
