Echo GT-2000 - GT-2400 Nylon Line Replacement

26

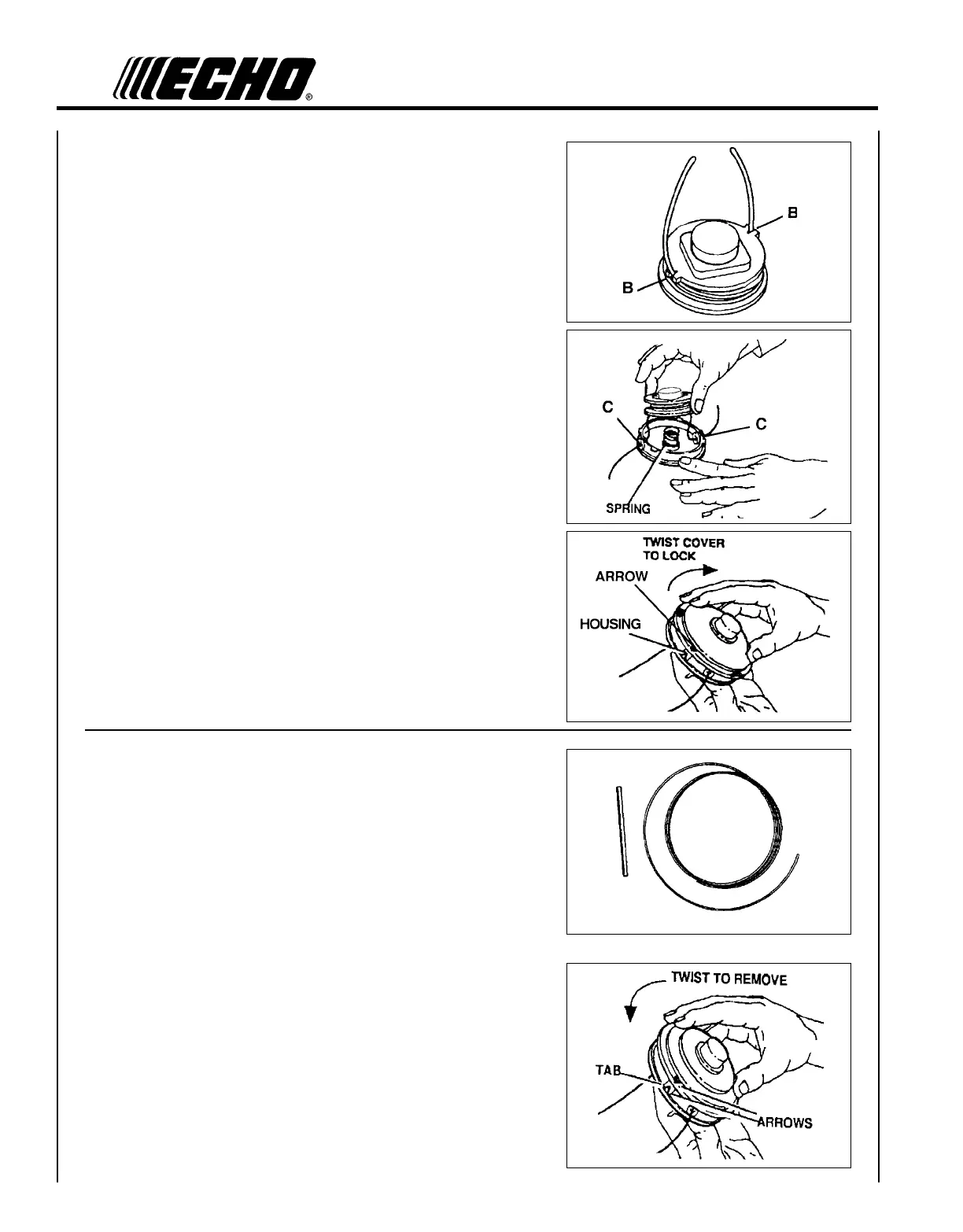

5. Place ends of line in the two notches (B) molded in the spool with
12.5 to 15.2 cm (5 to 6 in.) protruding.
6. Place spool in housing against spring; thread line ends through
housing eyelets (C)
7. Align cover arrow with housing tab; push down on cover and twist
clockwise until cover locks in place.
8. Pull both lines out and trim to cut-off knife length.
Before installing, test head. Push center button while pulling on
both lines. Trimmer line should advance approximately 1 (one) inch.
NYLON LINE REPLACEMENT
(GT-2400 Only)
Level 1.
Tools Required: Head locking tool - 1/8 in. dia. Rod (if head is to be
removed)
Parts Required: ECHO 2 mm (0.080) Nylon Trimmer Line 6m (20 ft.)
1. Press tab and twist cover CCW (counter clockwise) to align arrows
and remove cover. Lift spool from housing.
