11

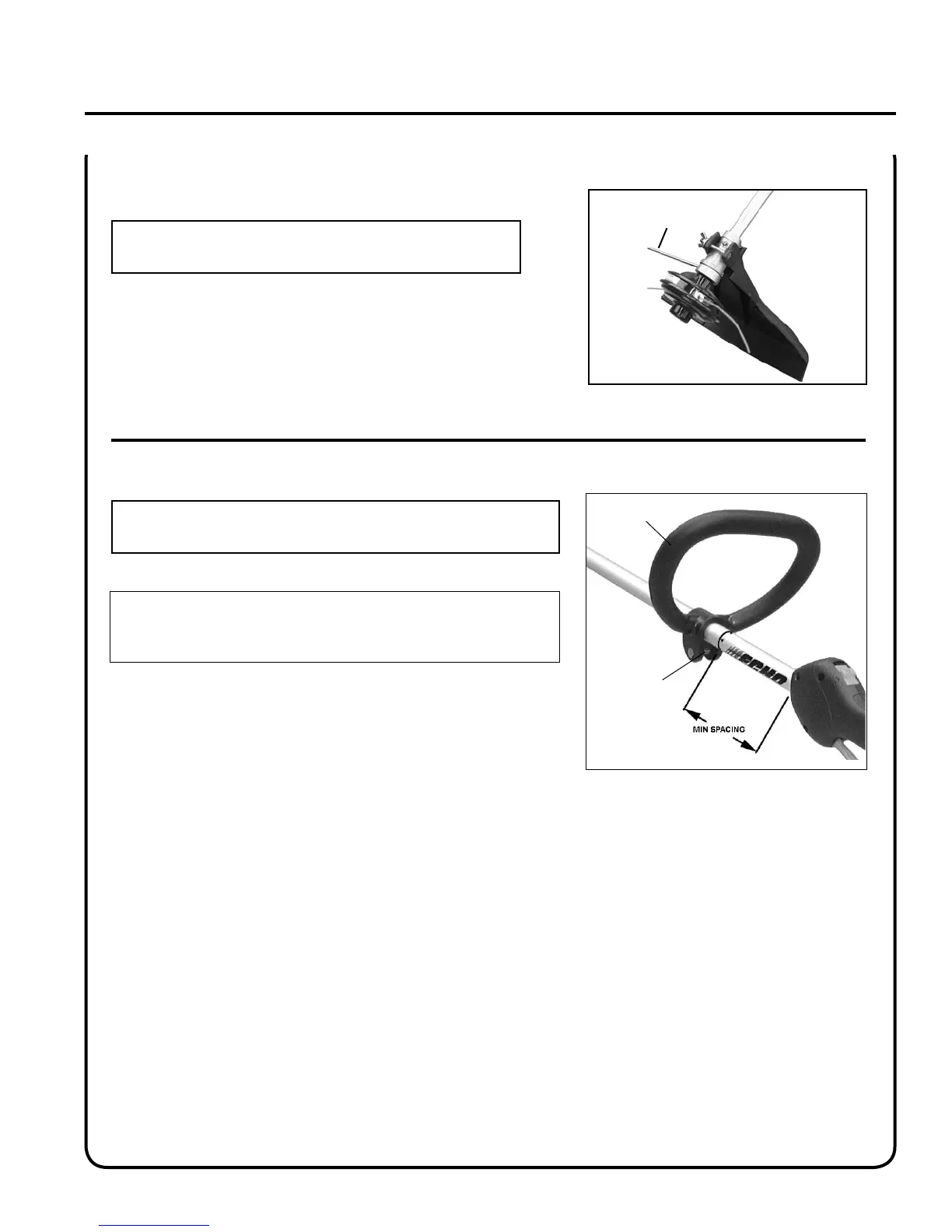

front (loop) handle
NOTE
Label shows minimum spacing for front handle location.
NOTE
Front handle is pre-installed. Re-positioning and tightening is all
that is required.
1. Position front handle (E) in comfortable operating position and
tighten wing nut (F). The cutting attachment should be 5-7.5 cm
(2-3 in.) above the ground and as level as possible.
E
F
remove nylon lIne head
NOTE
Do not disassemble nylon line head.
1. Align locating hole in upper plate with hole in bearing housing and
insert locking tool (D).
2. Remove line head by turning it counter clockwise until head is com-
pletely off of shaft.
3. Remove locking tool (D).
D
To Next Page
