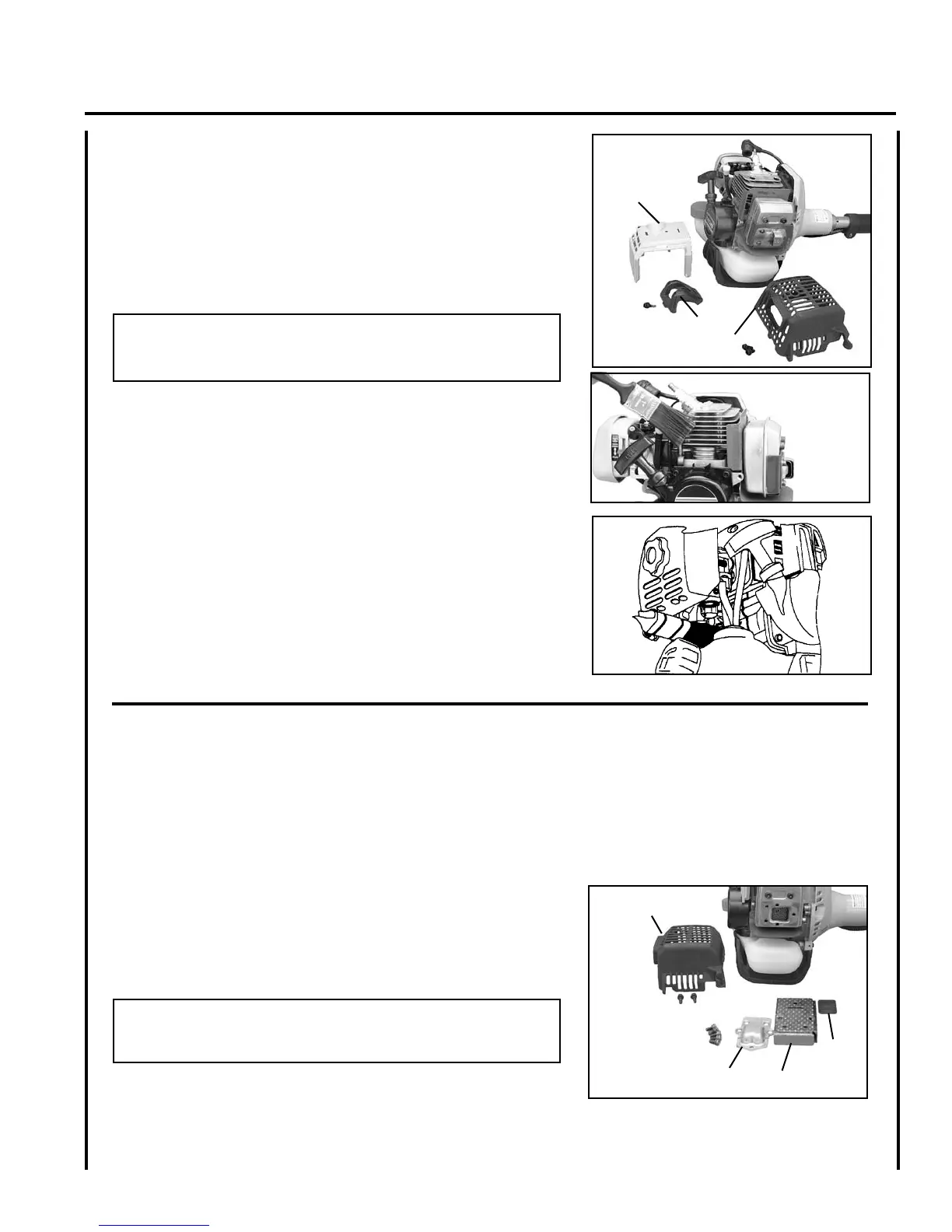

1. Remove spark plug lead.
2. Remove mufer cover (A).
3. Remove screw and top guard (B).
4. Remove engine cover (C).
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder ns.
5. Use brush to remove dirt from the cylinder ns.
6. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
7. Assemble components in reverse order.
exhaust system
Spark Arrestor Screen
Level 2.
Parts Required: Spark Arrestor Screen, Gasket
1. Remove spark plug lead.
2. Remove mufer cover (A).
3. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from
entering cylinder.
4. Remove spark arrestor screen cover (B), gasket (C) and screen (D)
from mufer body.
5. Clean carbon deposits from mufer components.
NOTE
When cleaning carbon deposit, be careful not to damage the cata-
lylic element inside mufer.
6. Replace screen if it is cracked, plugged or has holes burned
through.
7. Assemble components in reverse order.
