GRASS TRIMMER
OPERATOR'S MANUAL
19
Cylinder Exhaust Port
Level 3.
IMPORTANT
The cylinder exhaust port must be inspected and cleaned of excess
carbon every 3 months or 90 hours of operation in order to
maintain this engine within the emissions durability period. ECHO
strongly recommends that you return your unit to your ECHO
dealer for this important maintenance service.

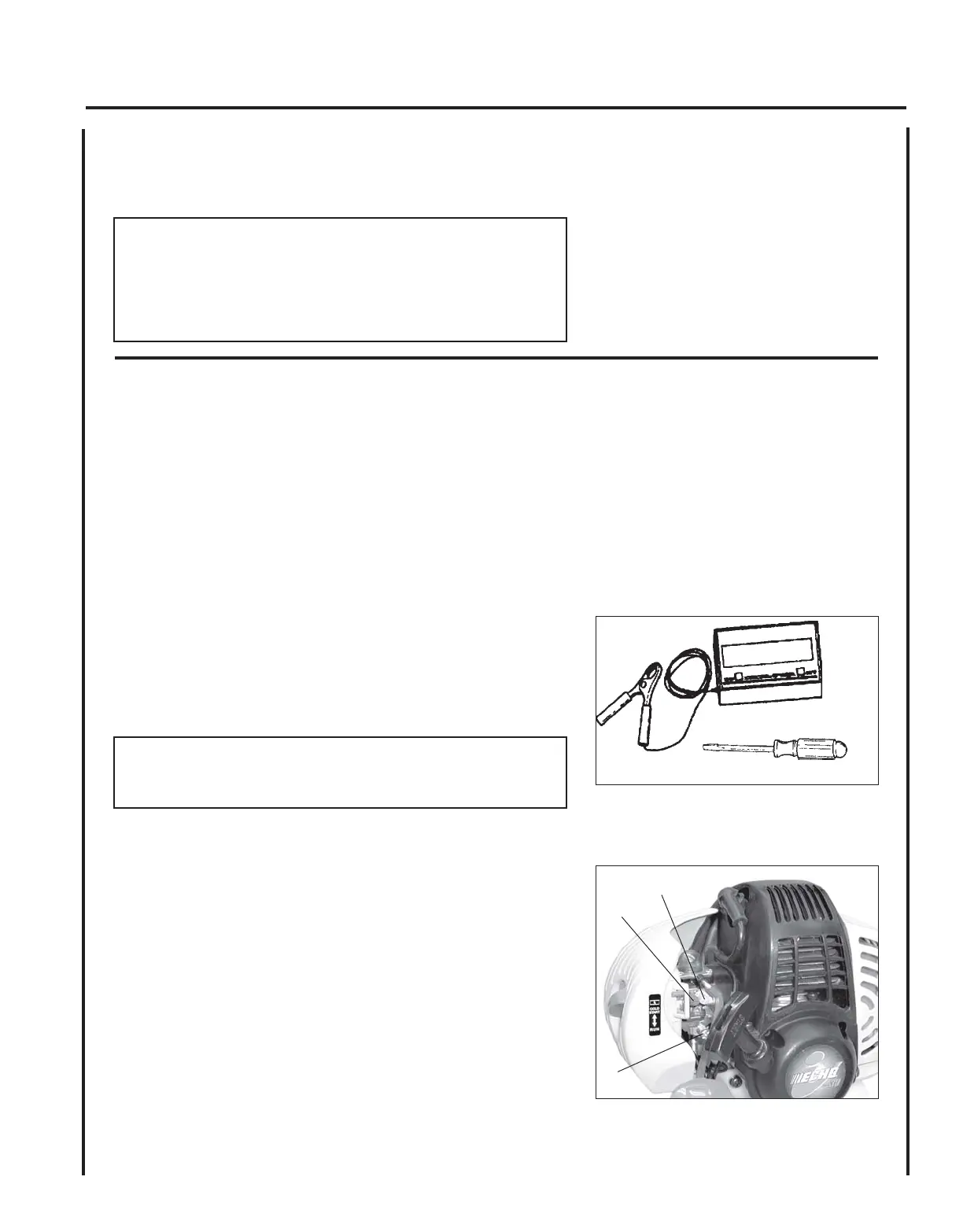

CARBURETOR ADJUSTMENT
Engine Break-In
New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the break-in
period your engine performance will increase and exhaust emissions will
stabilize. Idle speed can be adjusted as required.
High Altitude Adjustment
High altitude adjustment is not required for proper operation of this
engine.
Level 2.
Tools required: Screwdriver, tachometer (Echo P/N 99051130017)
Parts required: None.
NOTE
Do not adjust carburetor unless necessary. If you have difficulty,
see your ECHO dealer.
Adjustment Screws
Idle Speed (A) Controls throttle opening at idle.
Low (LO) Speed (B) Controls amount of fuel at low speed and
supplementary fuel for smooth progression from
idle to high speed.
High (HI) Speed (C) Controls amount of fuel at full throttle
A
B
C
