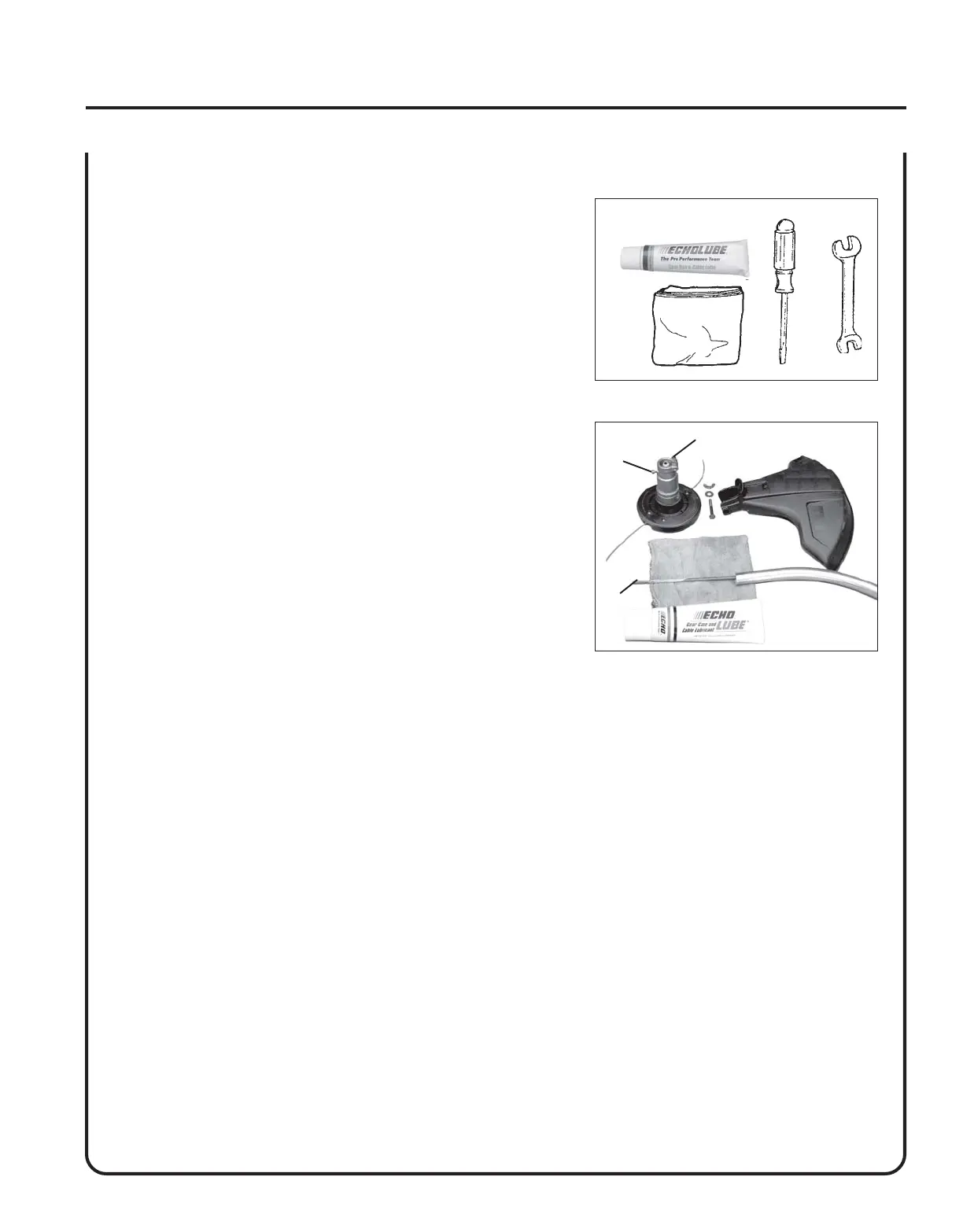

LUBRICATION
Level 1.
Tools Required: 8 mm Open-end wrench, screwdriver, clean rag
Parts Required: ECHO
®
LUBE
TM
8 oz. (P/N 91014) or Lithium Base
Grease
1. Remove plastic shield.
2. Loosen bearing housing locating screw (A), at the top of the
housing, remove mounting screw (B).
3. Pull the flexible drive shaft (C) from the housing, wipe clean and re-
coat with a thin coating 1/2 oz. (15 ml) of grease.
4. Slide the flexible drive shaft back in the drive housing being careful
not to get dirt on the flexible drive shaft.
5. Install the bearing housing and shield.
