Echo PAS-225 Value Pack - MAINTENANCE - BLADE REPLACEMENT; Edger Blade Replacement Procedure

Pr o At t A c h m e n t Se r i e S
tm
oP e r A t o r 'S mA n u A l
31

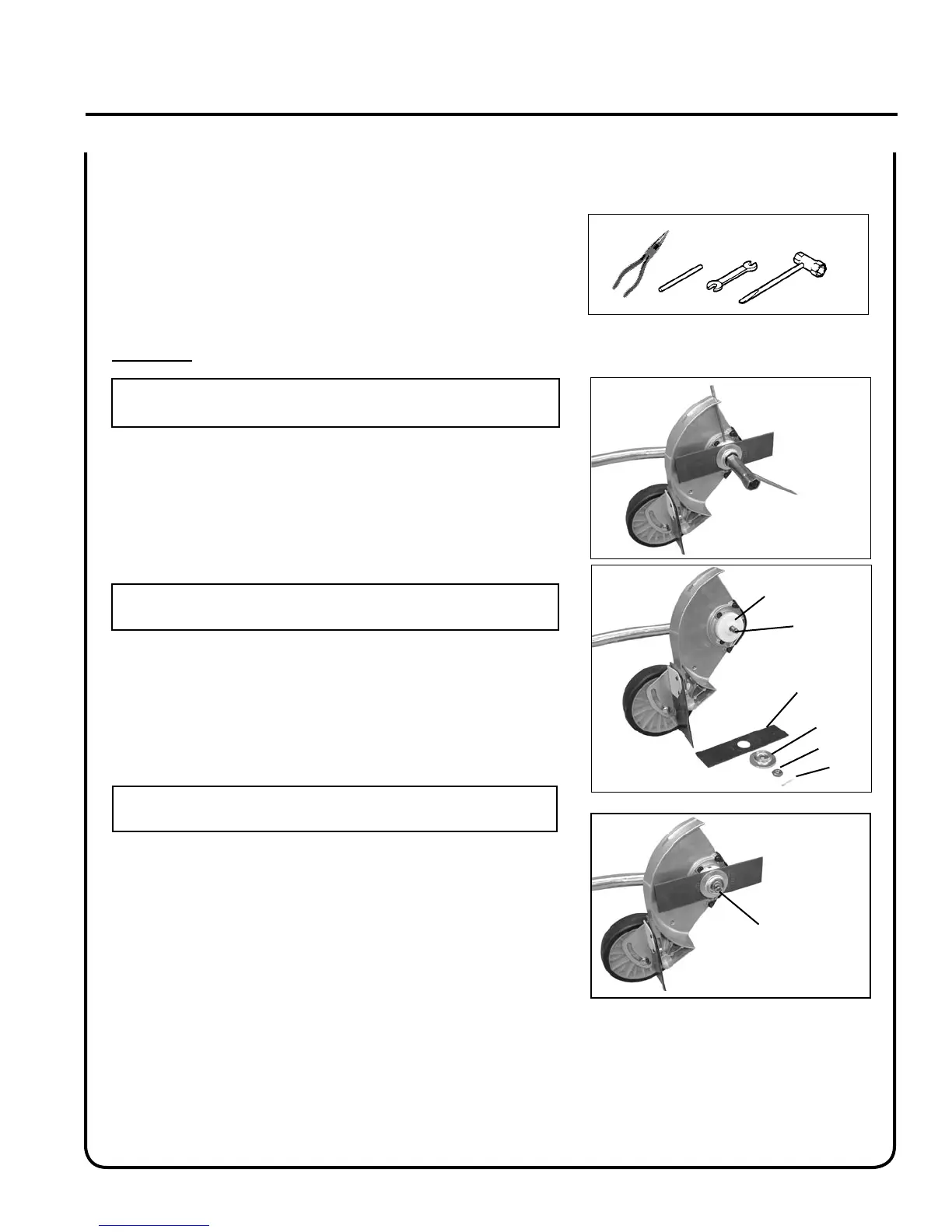

Level 1.
Tools Required: T-Wrench, Locking Tool, Needle Nose Pliers, 13 mm
Open End Wrench
Parts Required: Blade P/N 69601552632, split pin P/N 90030020022
Gear Case
NOTE
Replace blade when it is worn shorter than 6 in.
1. Shut engine off.
2. Remove split pin (A).
3. Rotate blade until holes in inner blade adapter (B) and gear box
align. Insert locking tool to lock PTO shaft (C).
NOTE
Blade nut (D) is left hand thread.
4. Remove blade nut (D) in a clockwise direction using scrench. Re-
move outer blade adapter (E)and blade (F).
5. Install and center new blade (F) onto inner adapter (B).
6. Install outer adapter (E) and nut (D). Tighten nut (D) rmly,
counterclockwise (CCW).
IMPORTANT
Never reuse old split pin.
7. Install new split pin (A) to secure nut.
B
C
E
F
A
D
A
b l a d e r e p l a c e m e n t - e d g e r
