Echo PB-2620 User Manual

ASSEMBLY PB-2620
16 X7501190602
© 10/2017 ECHO Inc.
ASSEMBLY
Never perform maintenance or assembly procedures with
engine running or serious personal injury may result.

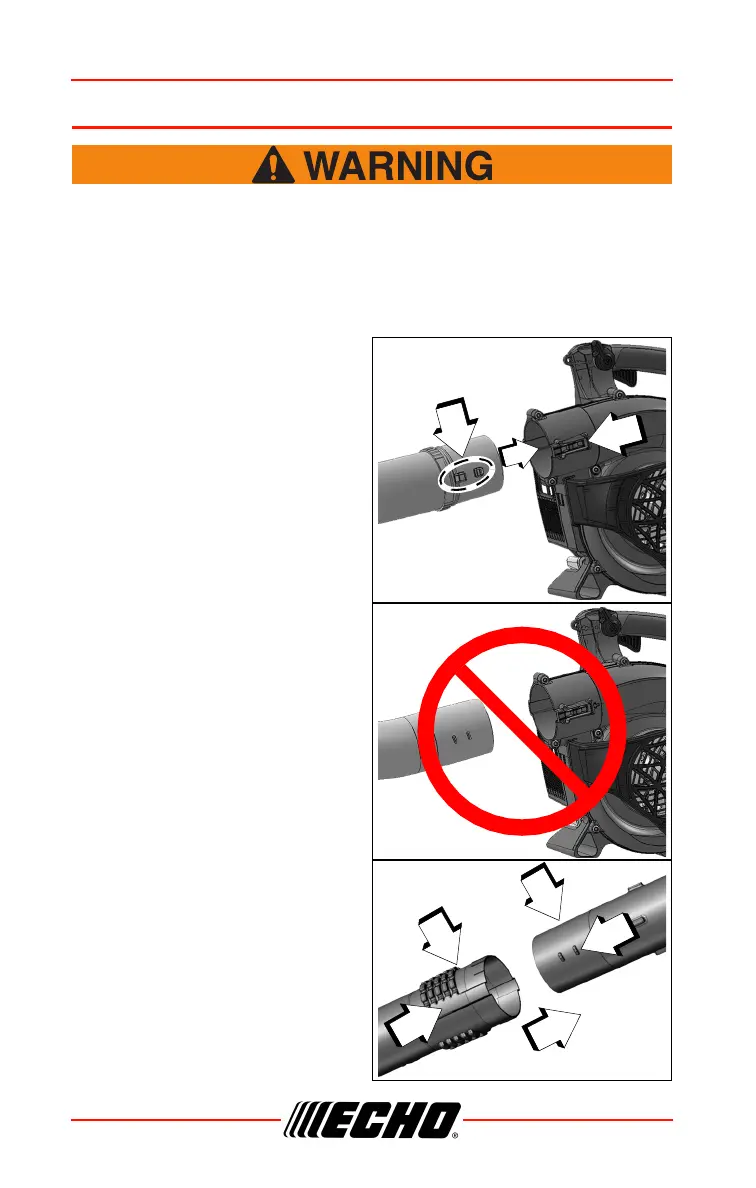

Install Blower Pipes
1. Stand unit upright on blower base.
2. Align locking ribs (A) on upper
blower pipe with pipe lock (B) in
fan case. Slide upper blower
pipe into fan case until a
clicking sound is heard.
Do not assemble the opposite
end of the upper blower pipe to
the fan case.
3. Align tabs (C) with grooves (D)
and slide lower blower pipe (E)
over upper pipe (F) until there is
light resistance. Do not force
the connection.
4. Hold upper pipe, and turn lower
pipe clockwise, engaging
positive locking channels until
connection is firm.
A
B
C
D
E
F

Echo PB-2620 Specifications

General

Engine Displacement	25.4 cc
Air Speed	172 MPH
Fuel Capacity	20.3 fl. oz.
Type	Handheld
Engine Type	2-stroke
