Echo PB-755S H/T User Manual

PB-755S H/T ASSEMBLY
X7531125705 21
© 11/19 ECHO Incorporated

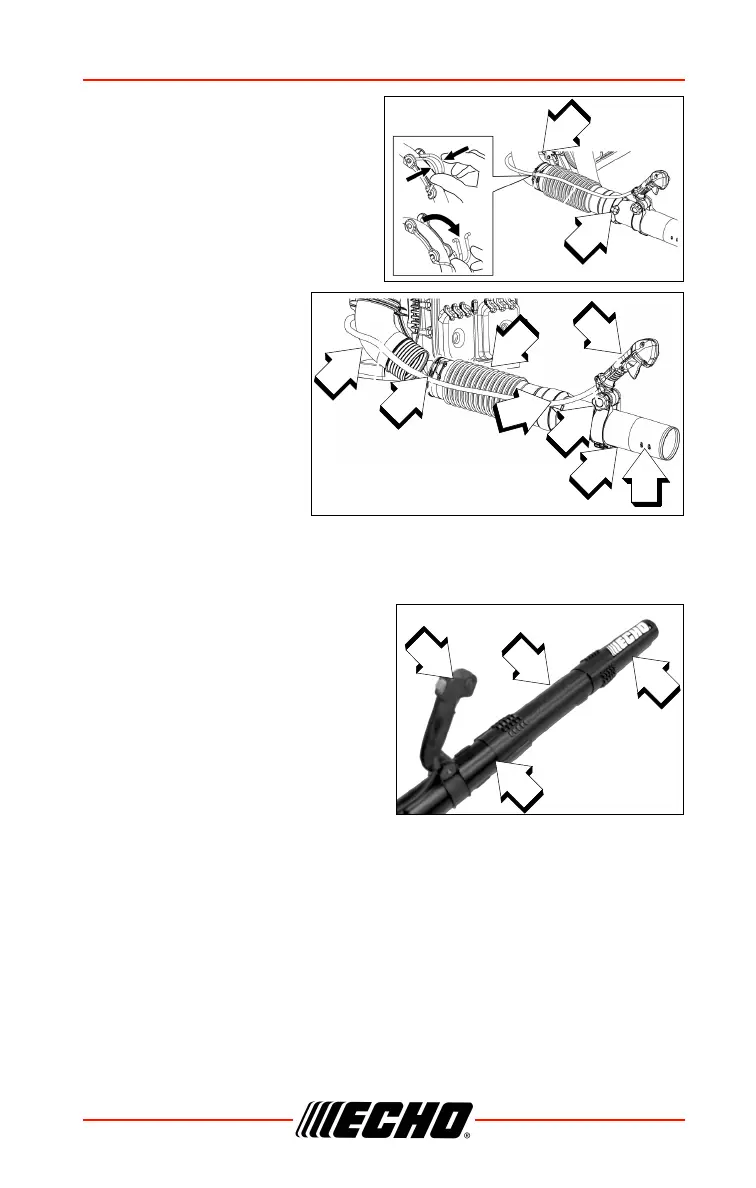

2. Assemble flexible pipe to elbow
(D) on blower. Position clamp
with cable guide loop (G) on
outside of flexible pipe and
tighten clamp.
Note: Hang handle freely from
blower to assure throttle
cable is not twisted before
installing handle (E).
3. Position throttle cable
along the outside of
elbow. Loosen knob
(H) on handle (E).
Align notches in
handle with tabs (F)
and install onto swivel
pipe (C) past long
ridges in pipe.
4. Assemble swivel pipe
into flexible pipe and
tighten clamp (A).
5. Clip throttle cable into throttle cable guide loop.
6. Move handle (E) to desired position. Tighten knob (H) hand tight.
7. Assemble straight pipe (K) onto
swivel pipe, until you feel light
resistance. Do not force
connection. Hold swivel pipe and
turn straight pipe clockwise,
engaging positive locking
channels, until connection is firm.
Do not force connection.
8. Assemble straight pipe with
decal (J) to straight pipe as in
step 7.
Note: Blower use will eventually loosen pipe connections. Exclusive
positive locking system allows pipes to be tightened. If
loosening occurs, remove two straight pipes and install
according to instructions 7 & 8.
G
D
D
G
B
H
A
C
F
E
E
C
K
J
