Echo PB-8010 H User Manual

ASSEMBLY PB-8010 H/T
20 X7501200001
© 11/2018 ECHO Inc.

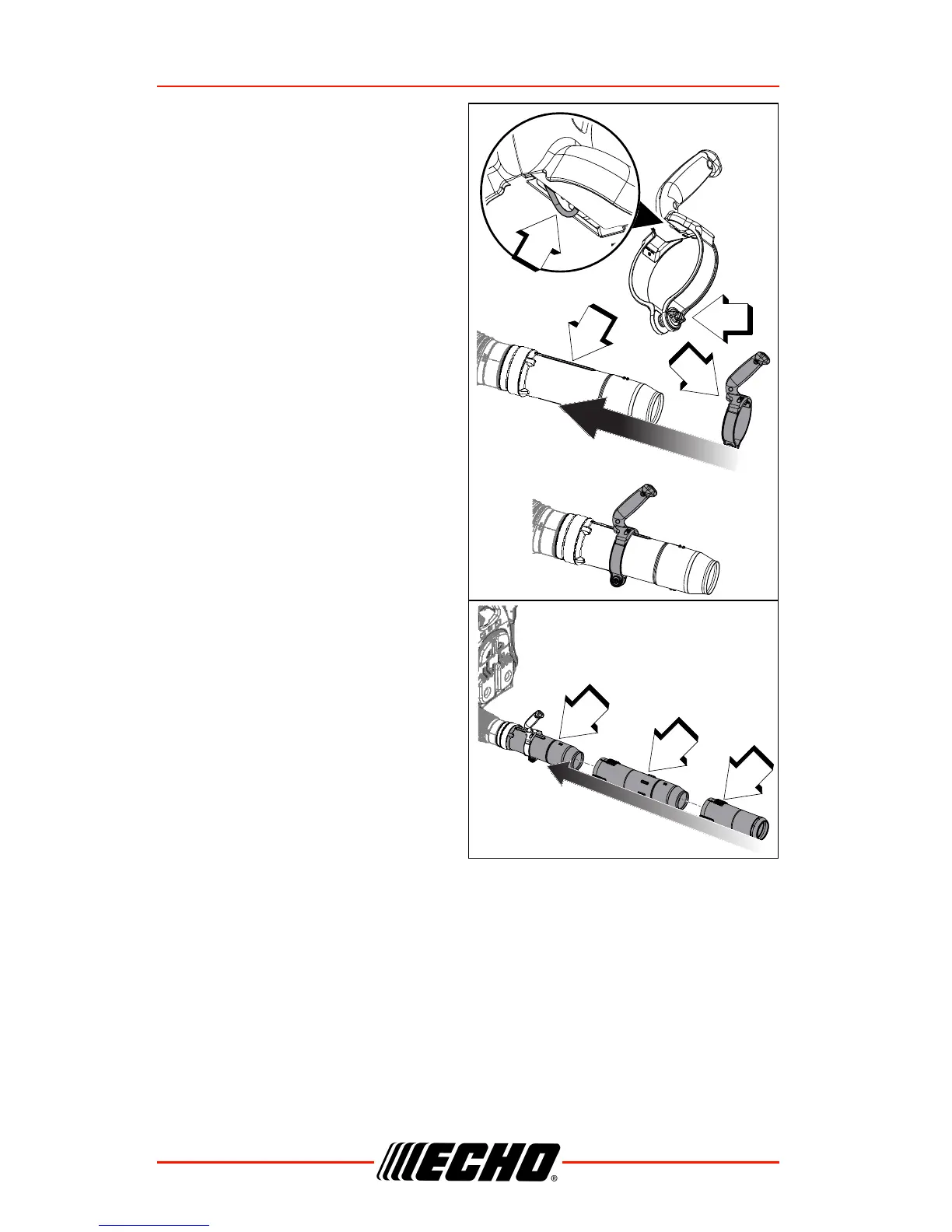

5. Loosen knob (E) completely
and expand stick handle clamp.
Align wire (G) in handle with
grounding strip on swivel pipe
(C).
6. Slide stick handle onto swivel
pipe (C). Stick handle (F)
should be angled away from
operator.
7. Position stick handle (F) for
comfortable operation. Tighten
knob (E).
8. Assemble straight pipe (J) onto
swivel pipe (C), until you feel
light resistance. Hold swivel
pipe and turn straight pipe
clockwise, engaging positive
locking channels, until
connection is firm. Do not force
connection.
9. Assemble end pipe (K) to
straight pipe (J) the same as in
step 8.
Note: Blower use will eventually
loosen pipe connections.
Exclusive positive locking system allows pipes to be
tightened. If loosening occurs, remove two pipes and install
according to steps 8 and 9.
E
G
C
F
J
C
K

Echo PB-8010 H Specifications

General

Engine Displacement	79.9 cc
Air Volume	1071 m³/h
Air Speed	94.5 m/s
Dry Weight	11.2 kg
Type	Backpack Blower
Fuel Tank Capacity	2.5 L
