Echo PB-8010 H User Manual

PB-8010 H/T ASSEMBLY
X7501200001 19
© 11/2018 ECHO Inc.
ASSEMBLY
PB-8010 H
Never perform maintenance or assembly procedures with
engine running or serious personal injury may result.

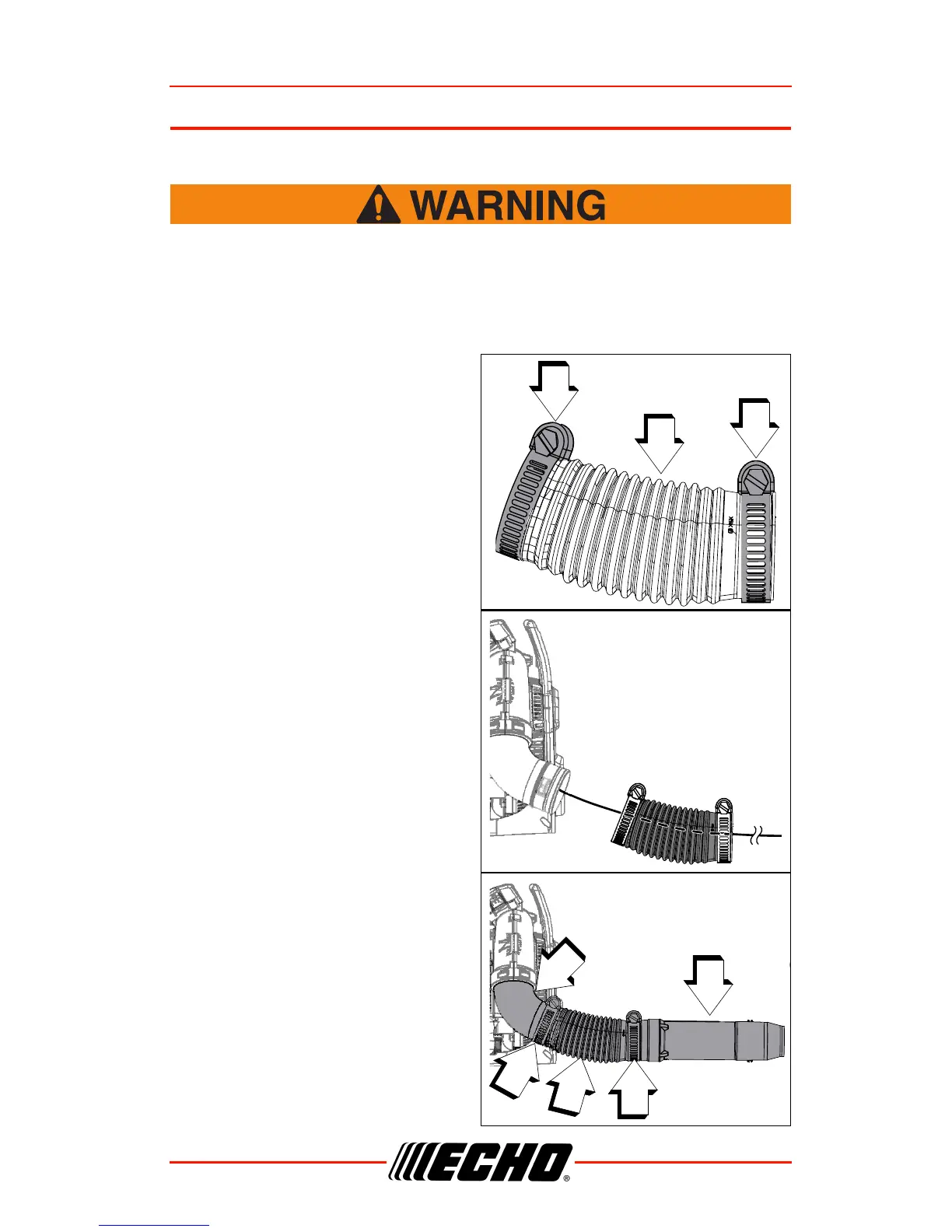

Install Blower Pipes and Stick Handle
1. Assemble clamps (A) onto both
ends of flexible pipe (B).
2. Insert anti-static wire through
flex tube, into swivel pipe.
3. Assemble swivel pipe (C) into
flexible pipe (B).
4. Assemble flexible pipe (B) to
elbow (D) on blower and tighten
clamps (A).
Note: A light lubricant may be
used to ease assembly of
flexible pipe to blower
elbow.
A
B
A
C
C
D
A
A
B

Echo PB-8010 H Specifications

General

Engine Displacement	79.9 cc
Air Volume	1071 m³/h
Air Speed	94.5 m/s
Dry Weight	11.2 kg
Type	Backpack Blower
Fuel Tank Capacity	2.5 L
