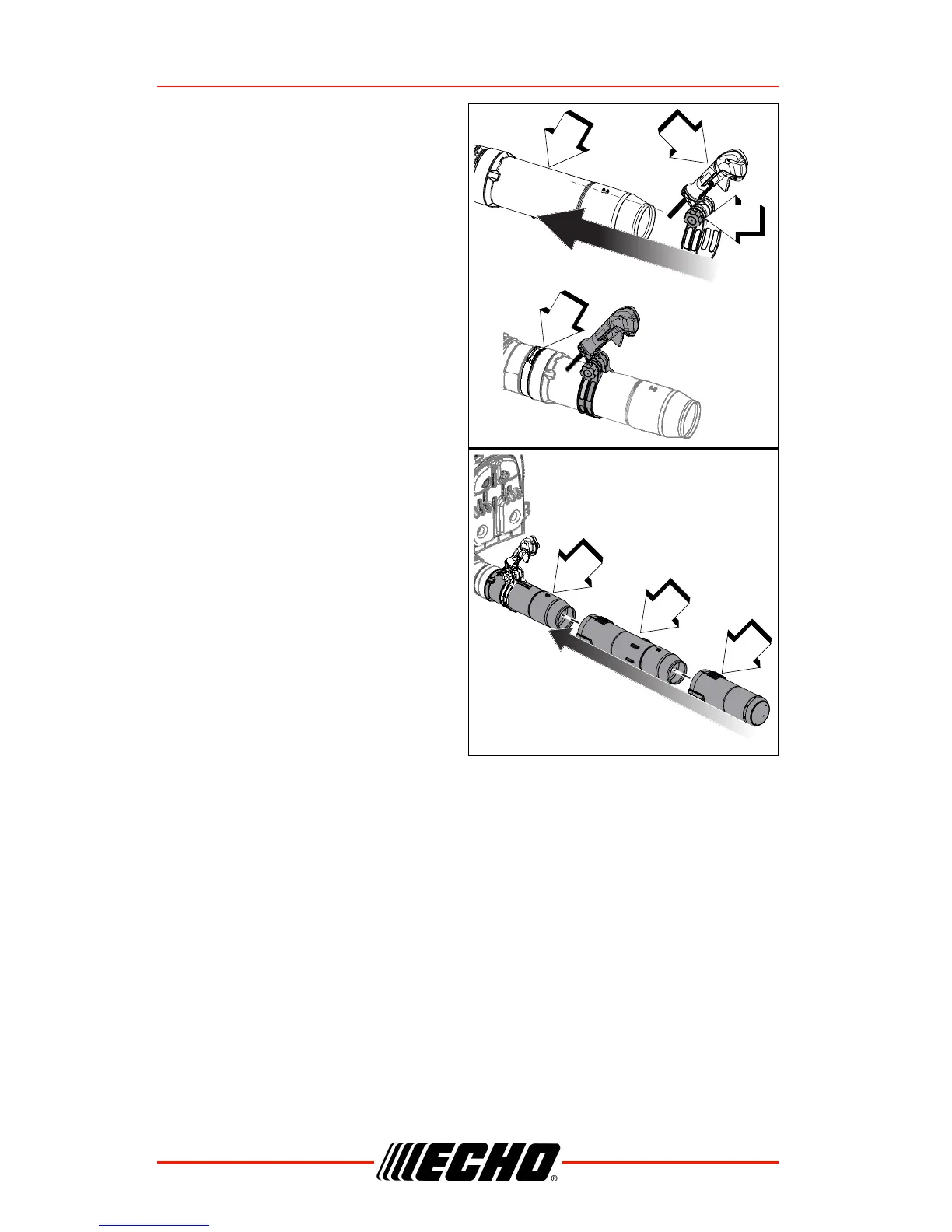

4. Position throttle cable along the
outside of elbow. Loosen knob
(H) on handle (E). Install onto
swivel pipe (C).
5. Insert anti-static wire into swivel
pipe.
6. Assemble swivel pipe into
flexible pipe and tighten clamp
(A).
7. Clip throttle cable into throttle
cable guide loop.
8. Move handle (E) to desired
position. Tighten knob (H).
9. Assemble straight pipe (J) onto
swivel pipe, until you feel light
resistance. Hold swivel pipe
and turn straight pipe
clockwise, engaging positive
locking channels, until
connection is firm. Do not force
connection.
10. Assemble end pipe (K) to
straight pipe as in step 9.
Note: Blower use will eventually
loosen pipe connections.
Exclusive positive locking
system allows pipes to be
tightened. If loosening
occurs, remove two straight pipes and install according to
steps 9 and 10.
