P
OWER
E
DGER
O
PERATOR
'
S
M
ANUAL
15

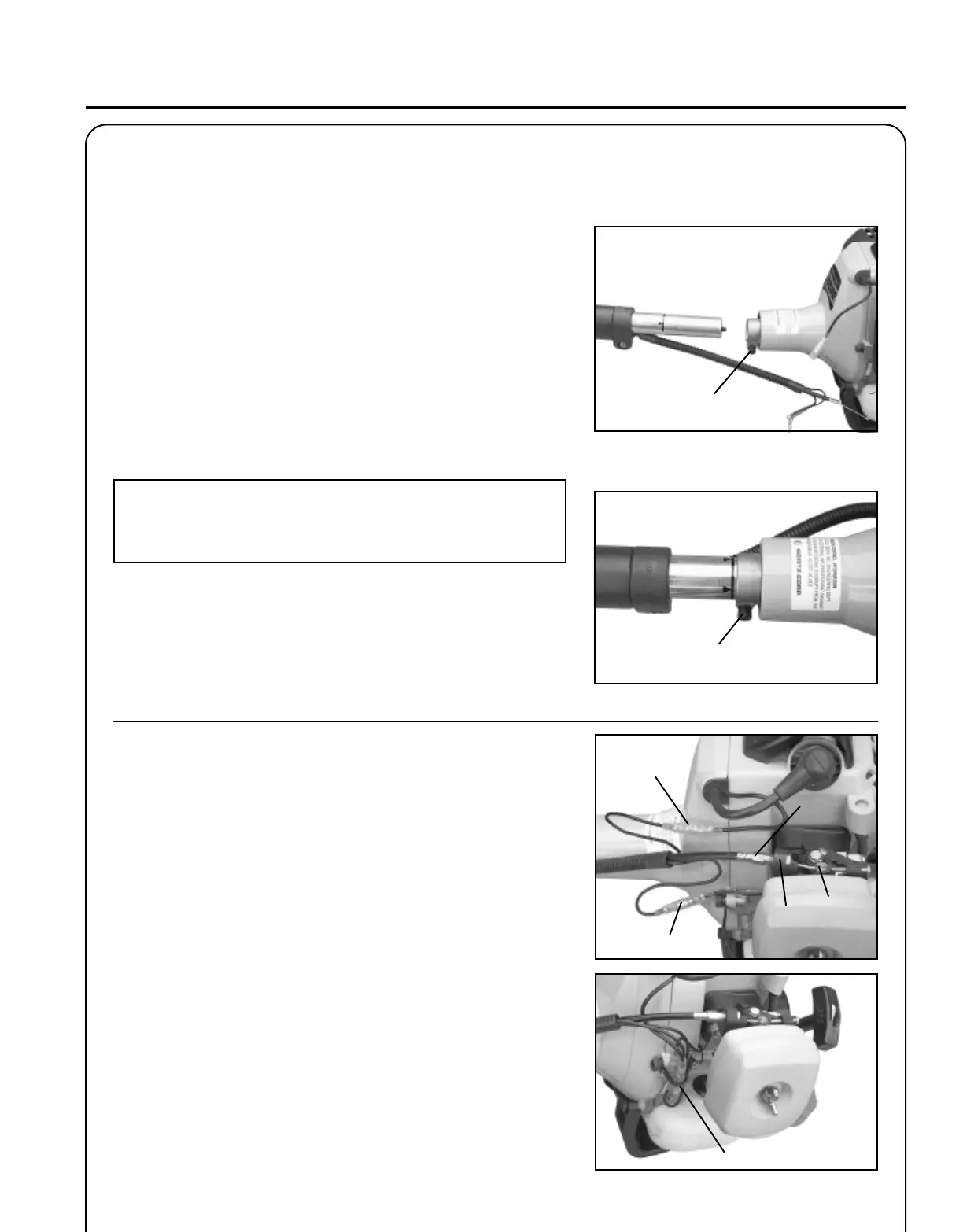

ASSEMBLY
DRIVE
SHAFT/POWER HEAD
Tools Required: 4 mm Hex Wrench
Parts Required: Power Head, Drive Shaft Assembly
1. Loosen, the bolt (A) at engine drive shaft clamp.
2. Carefully fit drive shaft assembly to engine making sure that
inner drive shaft engages into clutch mount.
NOTE
Lower gear housing and head assembly must be in line with the
engine.
3. Turn drive shaft housing so that center line of housing is midway
between the two arrows on shaft.
4. Tighten bolt (A).
THROTTLE LINKAGE AND IGNITION LEADS
PE-230
1. Connect ignition stop leads (A) and (B).
2. Place throttle linkage (C) through adjustment fixture (D) and install
wire end into large carburetor throttle swivel hole (E). Check
throttle for freedom of movement and that wide open throttle / low
idle extremes are adjusted properly. The throttle linkage must be
adjusted by moving the adjustment fixture (D). Consult with your
Echo Dealer for correct adjustment procedure.
3. Bundle and secure ignition leads against engine housing with black
clip (F).
A
A
A
B
C
D
E
F
