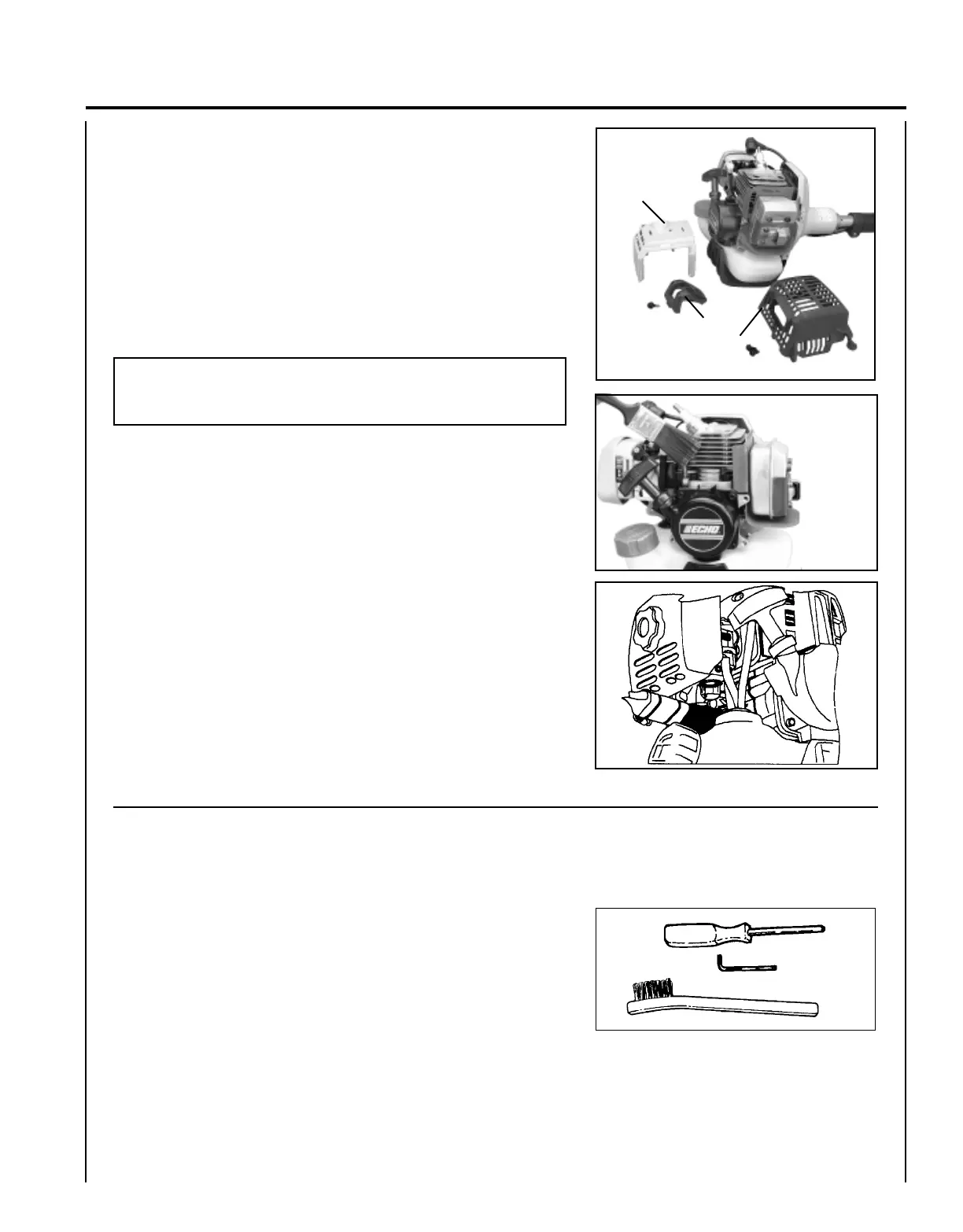

1. Remove spark plug lead.
2. Remove two (2) muffler cover screws and muffler cover (A).
3. Remove screw and arm rest (B).
4. Remove cylinder cover (C).
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
5. Use brush to remove dirt from the cylinder fins.
6. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
EXHAUST SYSTEM
Level 2.
Tools Required: Cross Head Screwdriver, 4mm Hex Wrench, Soft
Metal Brush
Parts Required: Spark Arrestor Screen P/N 14586251030.
